6X2mm Magnet Dispenser Holder - Gridfinity

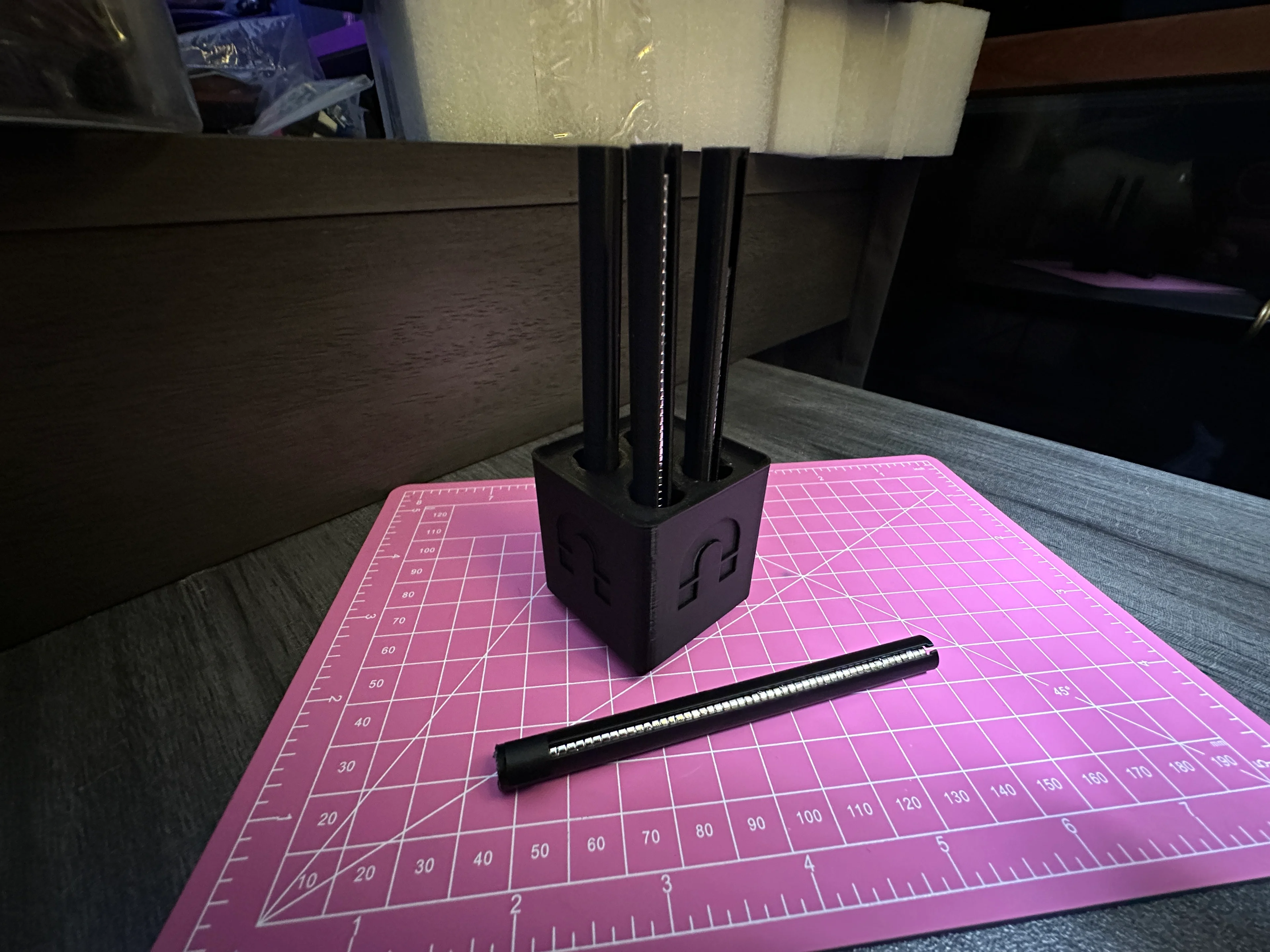

This is a Gridfinity Holder for the 6X2mm Magnet Dispenser

This holder can hold (yes I repeated the same word twice, shoot me) 4 dispensers. Need to hold more dispensers, simply print more holders.

Required Materials: 28G Filament 4 6X2mm Magnets

Assembly: Flip the holder over, so that it is face down a** up. Press fit the 6X2mm magnets into their respective holes. Fllip back over. Drop into your Gridfinity Base. Insert Dispensers.

Dispenser Info:

Each dispenser can hold over 50 magnets. A magnet inserted into the slider allows for your 6X2mm magnets to follow the slider in either direction. The opening of the dispenser has a flanged lip. This is to keep your magnets from falling out if the dispenser is facing the floor and/or dropped.

To dispense magnets, simply push on the Slider Plug toward the opening.

Required Materials: 13G Filament 1 4X2mm Magnet

Assembly: Insert 4X2mm magnet into Slider Plug. Insert plug into dispenser with the magnet toward the opening. Insert 6X2mm magnets into dispenser.

Happy printing!

Version Notes: 1.0 - Original. 1.2 - Made compatible with new slider plug. 1.3 - Made bottom magnet holes press fit to avoid the glue mess. 1.4 - Fixed press in magnet base hole shape. Was too tight.
