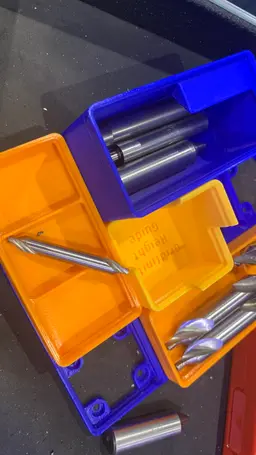

Gridfinity Height Tool
319 downloads · 3 years ago · This is a Gridfinity Tool to help determine the height you need, for your project. If the current mo
This model is restricted by licensing terms.Â
View license.
This is a Gridfinity Tool to help determine the height you need, for your project. If the current models don't provide the height you need I've added an adjustable version for Fusion 360.
Using Gridfinity Height Tool (Adjustable).f3d
- Open parameters and find "FirstHeight" to change the lowest height you need. The rest should adjust with the changes.
- Use the "Text" sketch to change the new height with unit # and mm height.
Note measurements on the sides are based on the from the base plate I added a photo for reference
