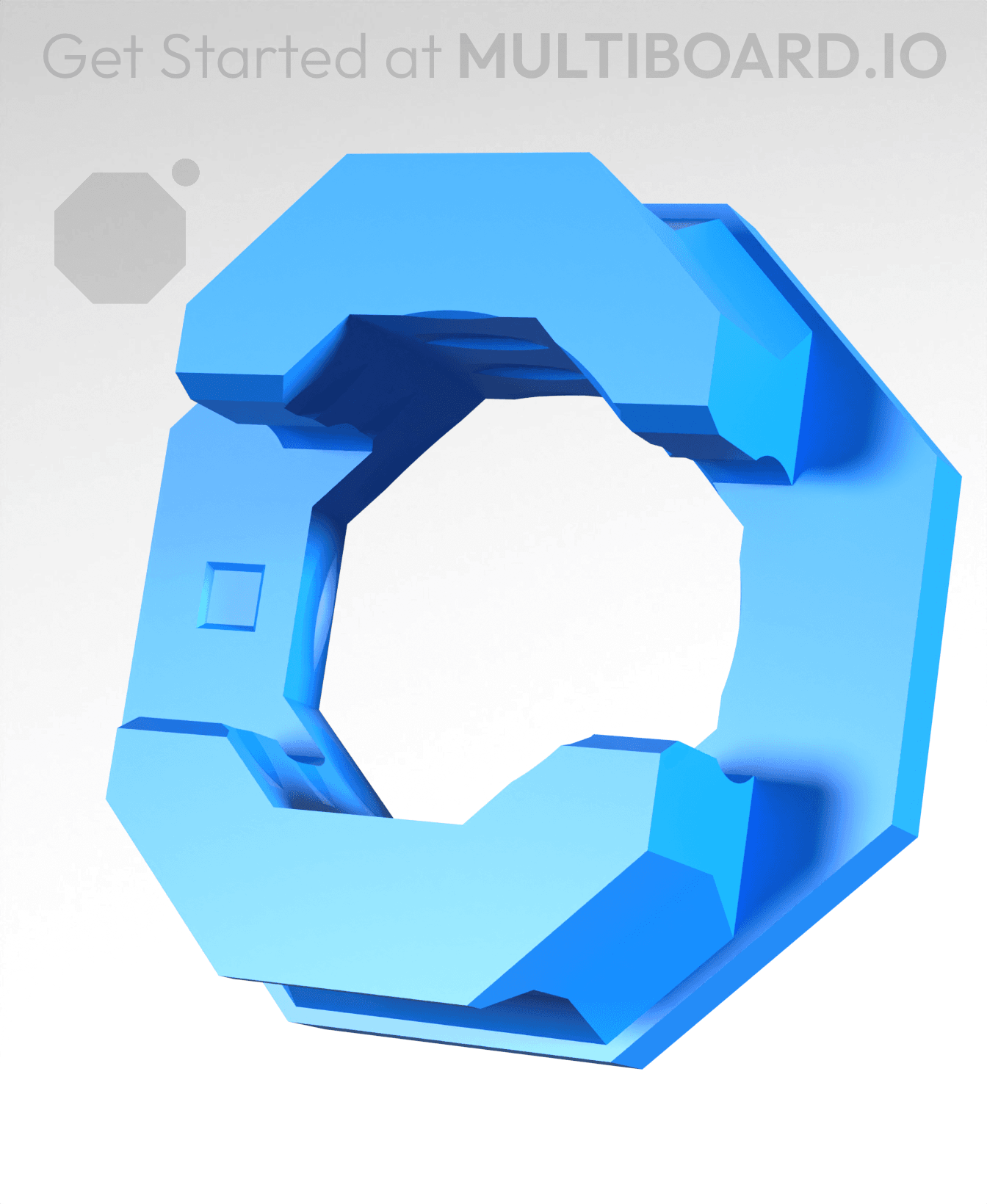

Raised Double-Sided Snap (DS Part A)
The “Double-Sided Snap - Part A” joins with the “DS Snap - Part B” to create nice-looking snaps on both sides of your tiles.
Remember: Part A’s join with Part B’s.
When joining them together, make sure to align the two square symbols.
This snap behaves like a regular snap with a push-fit hole to insert push-fit accessories or screw in mid thread bolts.
Learn more about this part at https://multiboard.io/knowledge-hub
Printing Guidelines:
The printing orientation is as provided in the file. The print has been designed to be “3 wall perimeters” in wall thickness. Printed at a layout height of 0.2 mm. It doesn't need printing supports. Use the default 15% infill. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.
UPDATE: All of the Double-Sided Snaps (Part As and Part Bs) have been updated and are NOT compatible with the old versions. Click here to discover what has changed.
You can still access the old parts in the Multiboard Legacy Parts listing.
—
This object is part of Multiboard, a FREE "all in one" organization system with 700+ parts, that combines pegboard holes, honeycomb snaps, Gridfinity like bins, threads, brakes, and much more.
Explore and build the coolest, most adaptable workshop at https://multiboard.io
