Multiboard Plate Holder Tool

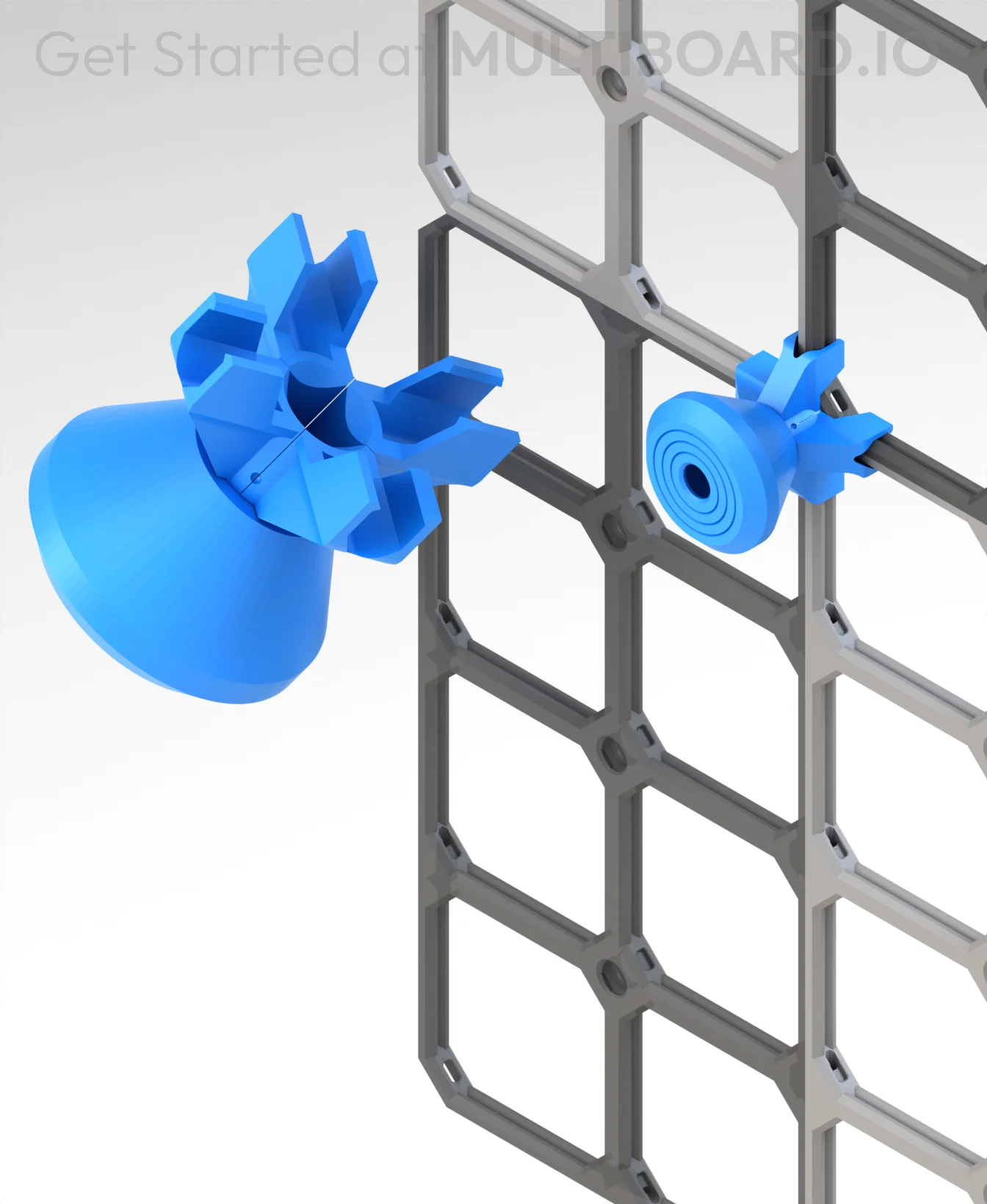

The Plate Holder Tool pulls up to 4 Multibin Plates together and keeps them aligned.
This tool is useful if you’re mounting Plates and aren’t using dual or quad mounts, as it can be difficult to align the tiles when screwing them in.
Assembly steps:

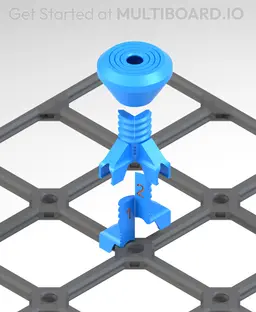

- Place the claws on a Plate in clockwise order (each claw has a number)
- Screw the cap on
Alternatively, follow the steps shown in the images or watch this video: (coming soon)
Printing Guidelines:
Use 3 perimeter wall thickness, 0.2 mm layer height, 15% infill, and no supports. Apart from that, use your printer's default settings.
The printing orientation is as provided in the file. Make sure the downloaded files are .STL. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.
