Half Fix Point - Fix Point Bolt-Lock

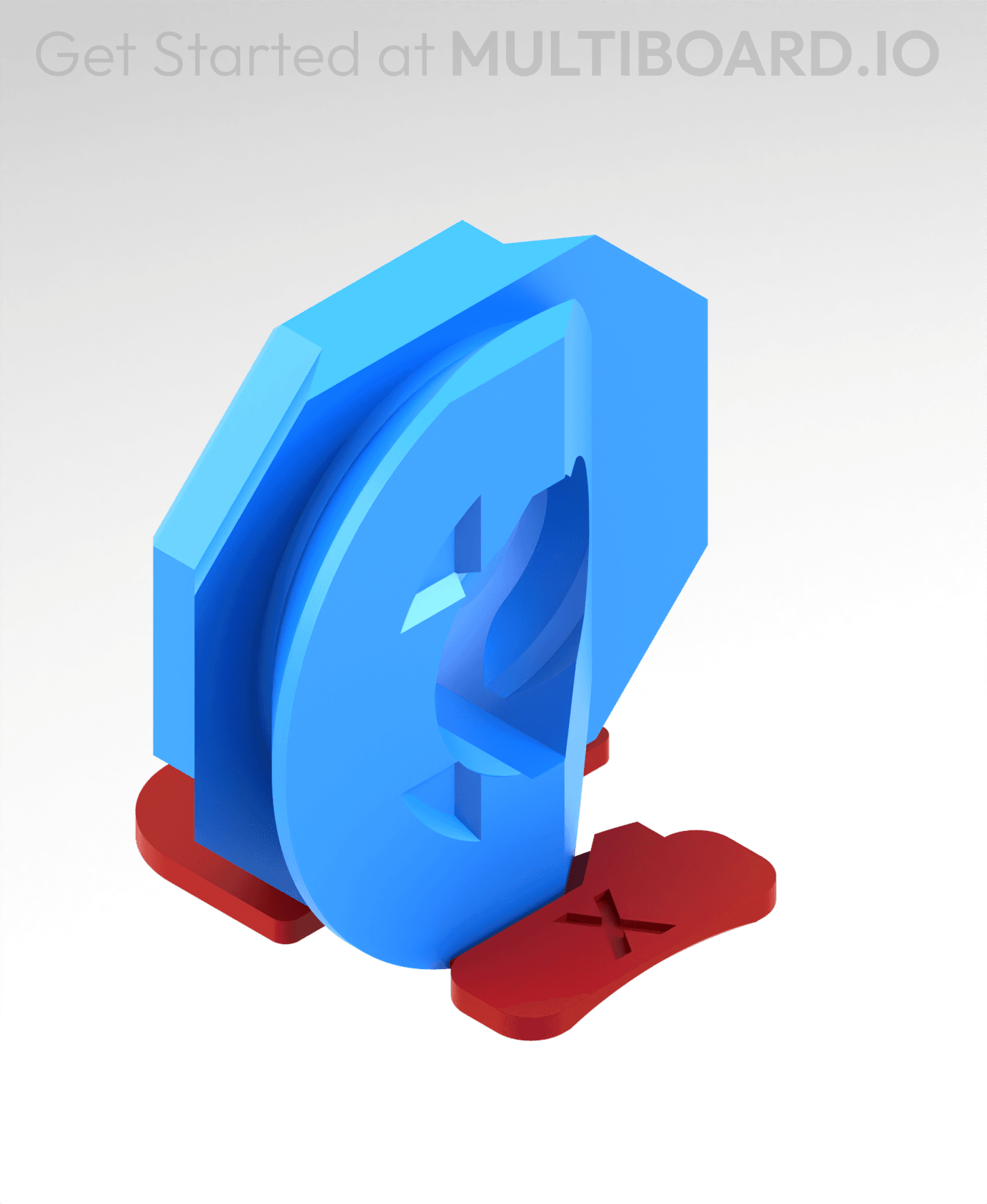

A Half Fix Point is escentially a Fix Point cut in half so it can fit in a smaller Fix Point Hole. It has the same function as a regular Fix Point.
This part connects to a Snap and is bolt-locked from the back using a Fix Point.
Printing Guidelines:
Use 3 perimeter wall thickness, 0.2 mm layer height, 15% infill, and no supports. Apart from that, use your printer's default settings.
The printing orientation is as provided in the file. Make sure the downloaded files are .STL. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.
This object is part of Multiboard, a FREE and ridiculously modular organization system with thousands of parts to create the most adaptable workspace possible. Learn more and find ALL the parts at https://multiboard.io
