Faceless Snap (DS Part B)

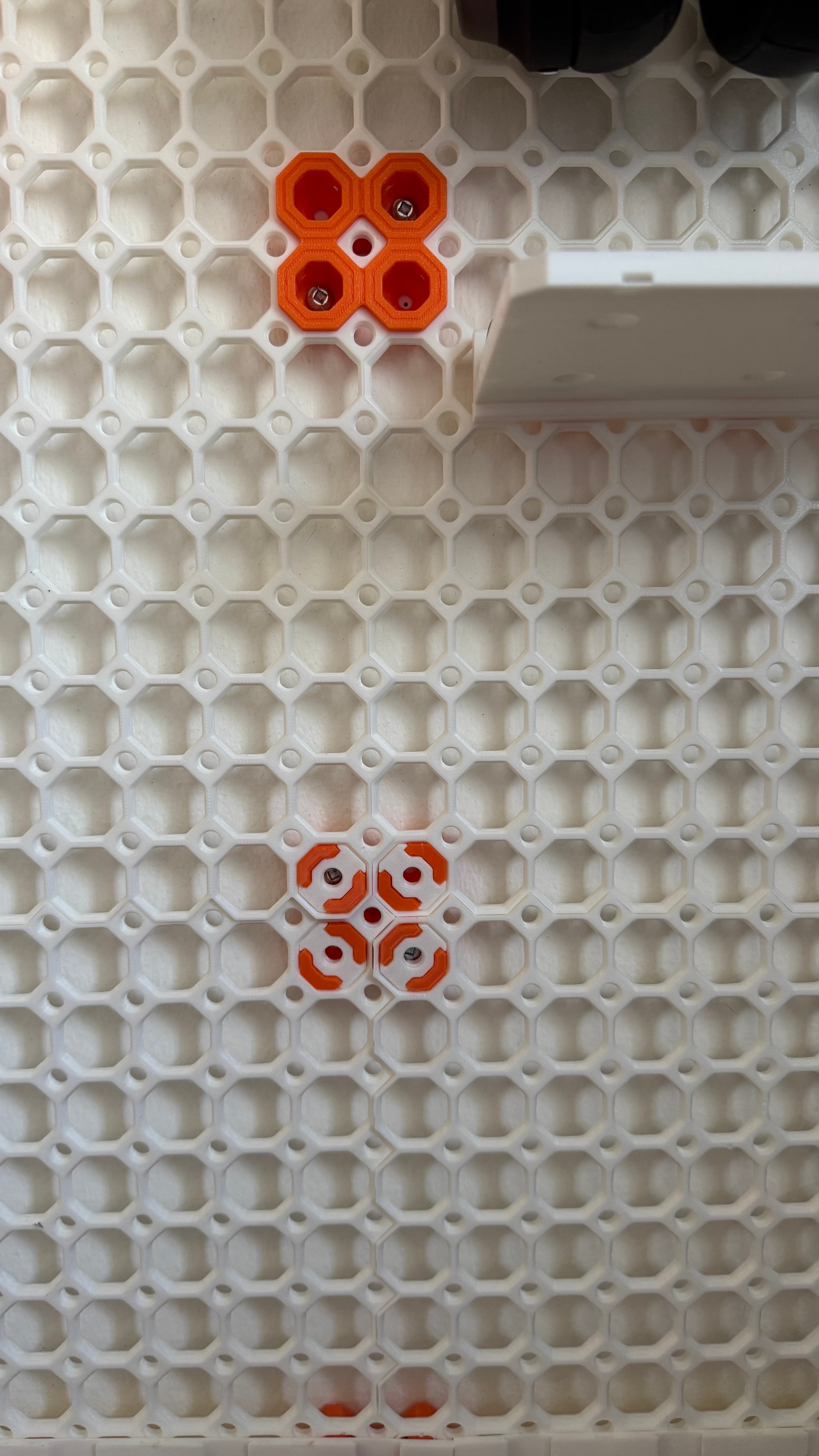

This 'Part B' Snap can attach to 'Part A' Snaps to create a Double Sided Snap. It creates a flush surface on the Tiles and only has a small thread hole in the middle.
Learn more about this part at https://multiboard.io/knowledge-hub
Printing Guidelines:
Use 3 perimeter wall thickness, 0.2 mm layer height, 15% infill, and no supports. Apart from that, use your printer's default settings.
The printing orientation is as provided in the file. Make sure the downloaded files are .STL. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.
For more information about printer settings, click here.
This object is part of Multiboard, a FREE and ridiculously modular organization system with thousands of parts, for creating the most adaptable workspace possible. Learn more and find ALL the parts at https://multiboard.io
Faceless Snap (DS Part B)
Fix Point to Countersink Adapter
Flush - Small Hole Center Marking Tool
6.25 Offset - Small Hole Center Marking Tool
12.5 Offset - Small Hole Center Marking Tool
2x6 MU - Right Support End - Modular Bolt-Locked Shelf
4x8 MU - Center - Modular Bolt-Locked Shelf
2x2 MU - Right Support End - Modular Bolt-Locked Shelf
2x6 MU - Left Support End - Modular Bolt-Locked Shelf
8x8 MU - Center - Modular Bolt-Locked Shelf
2x4 MU - Right Support End - Modular Bolt-Locked Shelf
4x6 MU - Center - Modular Bolt-Locked Shelf
2x8 MU - Left Support End - Modular Bolt-Locked Shelf
2x2 MU - Left Support End - Modular Bolt-Locked Shelf
8x2 MU - Center - Modular Bolt-Locked Shelf
8x4 MU - Center - Modular Bolt-Locked Shelf
2x4 MU - Center - Modular Bolt-Locked Shelf
2x8 MU - Right Support End - Modular Bolt-Locked Shelf
8x6 MU - Center - Modular Bolt-Locked Shelf
2x8 MU - Center Support - Modular Bolt-Locked Shelf
How remove this?
I'm guessing you've figured something out by now, but I believe this is the removal tool for the job.
Edit: That said, I don't see how this tool could remove these. I am hoping someone will correct me. The tool seems to need overhangs for those side teeth to grab onto, but this part doesn't have that.
Are these ment to hold any kind of horizontal force? My tiles are fastened to the wall with the 6.25 mm Offset Snaps (DS Part A), and if I use this Faceless DS Part B, I can very easily pull the files off the wall. Using the Standard Fit STL's all around.
Did you ever find the answer to this? I was thinking of attempting to mount the walls the same way but I'm also going to be having some weight hanging on them and that was my concern. Thanks.
Hi, what is the light grey part wich covers Part B Snap from top and bottom? As I understand it is an alternative for 'Part A' Snap
I believe that just represents any "Part A" snap, of which there are many flavors.
