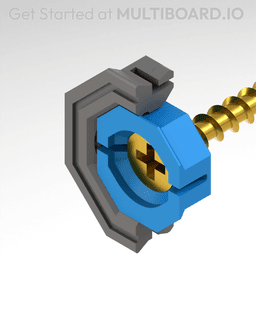

Countersink Flush Mount
This part adds a countersink into a Multiboard Snap so a Tile can be screwed onto a surface.
Keep in mind, your tiles will not be removable unless you remove the screws. For a removable flush-mounted board, use the Snap (DS Part A) - ScrewOn Flush Mounts.
Printing Guidelines:
Use 3 perimeter wall thickness, 0.2 mm layer height, 15% infill, and no supports. Apart from that, use your printer's default settings.
The printing orientation is as provided in the file. Make sure the downloaded files are .STL. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.
This object is part of Multiboard, a FREE and ridiculously modular organization system with thousands of parts to create the most adaptable workspace possible. Learn more and find ALL the parts at https://multiboard.io
