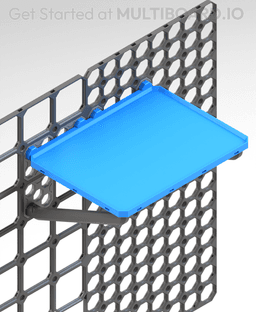

8x4 MU - Simple Bolt-Locked Shelf
This shelf connects to Moderate Snaps or Heavy Hook Snaps and is secured using Locking Bolts. Keep in mind, Heavy Hook Snaps are stronger than Moderate Snaps but they don't work with flush mounted boards.
Special support brackets can also be added to this Shelf for extra support.
This shelf is 4x2 cells (200x100 mm).
Printing Guidelines:
Use 3 perimeter wall thickness, 0.2 mm layer height, 15% infill, and no supports. Apart from that, use your printer's default settings.
The printing orientation is as provided in the file. Make sure the downloaded files are .STL. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.
For more information about printer settings, click here.
This object is part of Multiboard, a FREE and ridiculously modular organization system with thousands of parts, for creating the most adaptable workspace possible. Learn more and find ALL the parts at https://multiboard.io
8x4 MU - Simple Bolt-Locked Shelf
Fix Point to Countersink Adapter
Flush - Small Hole Center Marking Tool
6.25 Offset - Small Hole Center Marking Tool
12.5 Offset - Small Hole Center Marking Tool
2x6 MU - Right Support End - Modular Bolt-Locked Shelf
4x8 MU - Center - Modular Bolt-Locked Shelf
2x2 MU - Right Support End - Modular Bolt-Locked Shelf
2x6 MU - Left Support End - Modular Bolt-Locked Shelf
8x8 MU - Center - Modular Bolt-Locked Shelf
2x4 MU - Right Support End - Modular Bolt-Locked Shelf
4x6 MU - Center - Modular Bolt-Locked Shelf
2x8 MU - Left Support End - Modular Bolt-Locked Shelf
2x2 MU - Left Support End - Modular Bolt-Locked Shelf
8x2 MU - Center - Modular Bolt-Locked Shelf
8x4 MU - Center - Modular Bolt-Locked Shelf
2x4 MU - Center - Modular Bolt-Locked Shelf
2x8 MU - Right Support End - Modular Bolt-Locked Shelf
8x6 MU - Center - Modular Bolt-Locked Shelf
2x8 MU - Center Support - Modular Bolt-Locked Shelf
I have the same question. It would be nice (for beginners) to have a "works with" section so that one can see the multiboard functionality you want and what to attach it to the board with.
Agree I have printed out 2 shelf units 4x 2 Bolt lock units but cannot figure out what I need to fasten it to the board on the wall, tried various things but nothing seems to be the correct, it would be very useful to have a diagram and link to the corrct items to fasten to the wall board
Where can I find the previous version of the 4x2 Bolt-Locked Shelf ? I have multiple 4x2 shelf already printed that have attachment for the snaps all at the same distance instead of having the two in the middle side by side and which only 7 space on the tile instead of the 8 that this one need, where can I find the model so I can print more of them instead of this one.
I'm pretty sure I downloaded it originally like 3 month ago.
I regret more and more to be into multiboard. This thing doesnt fit in the bolts...wtf?
It seems like the threads for the underside of this shelf are a different pitch than what is on the other multiboard systems. Is there a reference to what this size is; or what parts work with it?
thank you for all your work it is great. one question? what Multipoint bolt lock can i use with this i tried Small Thread - Multipoint and med Thread - Multipoint none of this ones work. thank you
