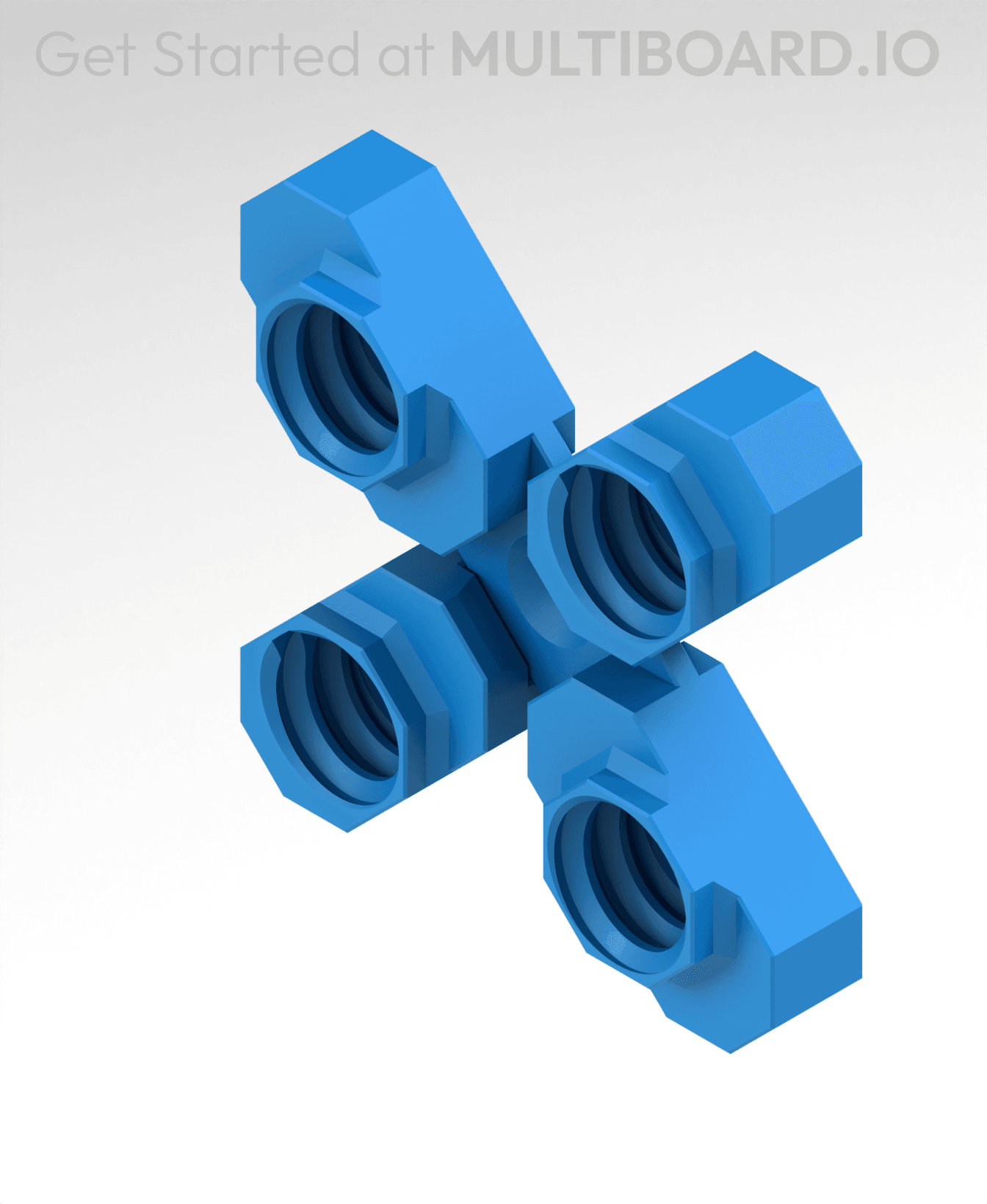

Use “Bolt-Lock Mounts” if you want your entire board or segments of your board to be easily removable, or if you're using Multibin Plates. This mounting method creates a 6.25 mm offset from the surface. This is a “Quad” Mount that holds four Tiles together.

(The Quad Mount has two parts that connect together - flex the back part slightly to join them)

To set it up:

• Use Multiboard Snaps for unconnected removable tiles. Or use Raised Snap Connectors for a connected removable board.

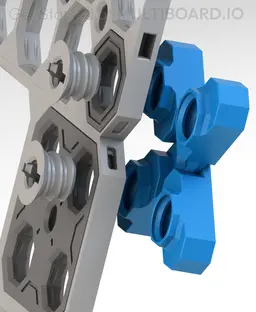

• Secure the Bolt-Lock Mounts to a surface using screws. To align the mounts properly, first attach the mounts to the tiles using temporary passthrough bolts.
• Secure your board to the mounts using Locking Bolts.

Printing Guidelines:

Use 3 perimeter wall thickness, 0.2 mm layer height, 15% infill, and no supports. Apart from that, use your printer's default settings.

The printing orientation is as provided in the file. Make sure the downloaded files are .STL. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.

This object is part of Multiboard, a FREE and ridiculously modular organization system with thousands of parts, for creating the most adaptable workspace possible. Learn more and find ALL the parts at https://multiboard.io
