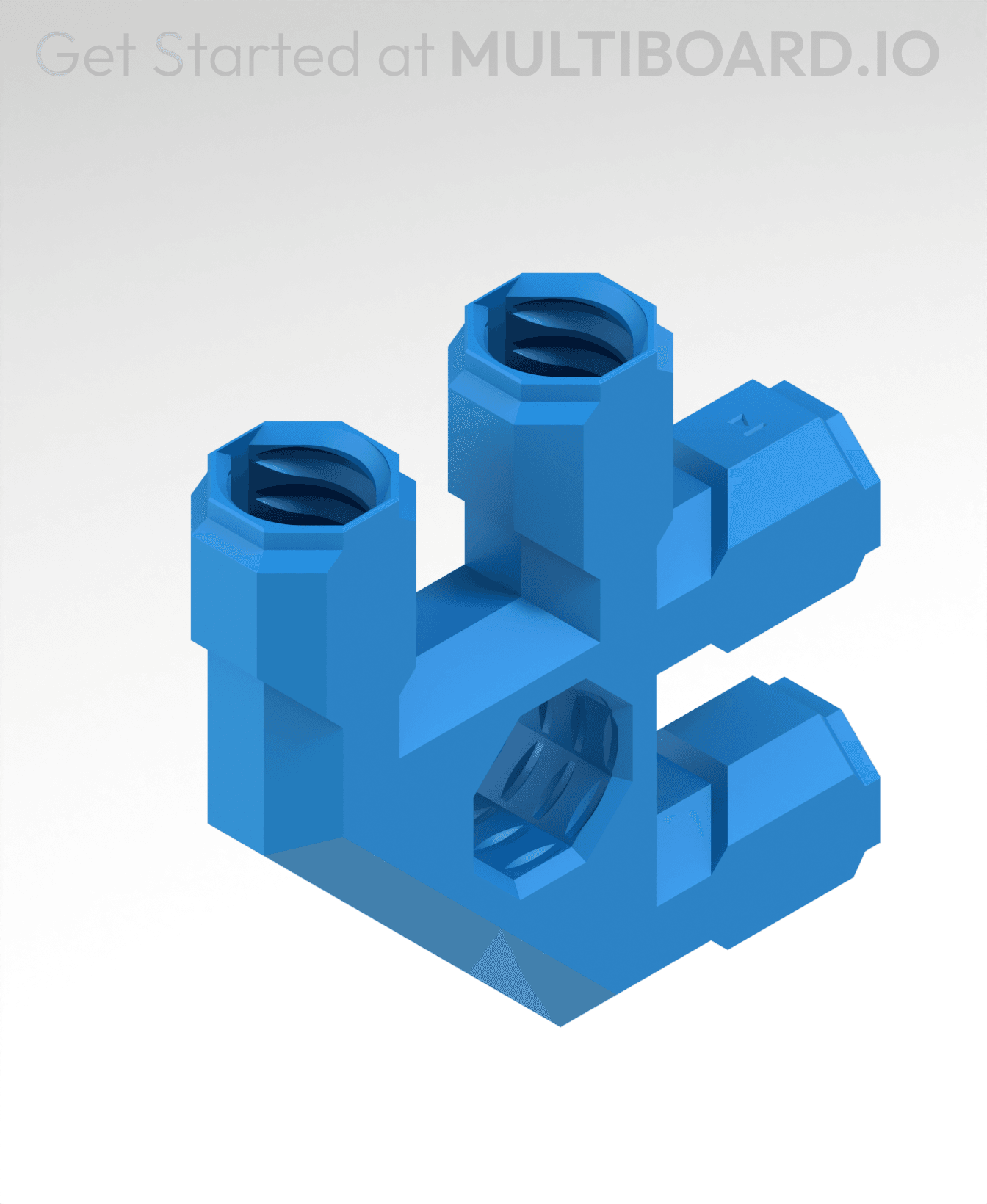

2x2 MU Bracket - Bolt-Locked Inserts
Connect these brackets to your tiles using Multiboard Snaps (use a Weight-Bearing Snap at the top), and lock into place using Locking Bolts.
Brackets can hold another Tile, a Multibin Base Plate, or a Tray:
-
Holding a Tile: Connect your Bracket and Tile together using Snaps (facing down). Then lock using Locking Bolts.
-
Holding a Base Plate: Place the Base Plate on the brackets and lock using Locking Bolts.
-
Holding a Tray: To hold a Tray, use Bracket-Multipoint Joins, you will also need a Multipoint and a Locking Bolt.
Printing Guidelines:
The printing orientation is as provided in the file. The print has been designed to be “3 wall perimeters” in wall thickness. Printed at a layout height of 0.2 mm. It doesn't need printing supports. Use the default 15% infill. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.
This object is part of Multiboard, a FREE and ridiculously modular organization system with thousands of parts, for creating the most adaptable workspace possible. Learn more and find ALL the parts at https://multiboard.io
