Use Magnet Rails to magnetically connect Multibins to other Multibins.

Slide this Magnet Rail onto the Rail Wall of a Multibin and hold it in place with a Rail Slim Cover.

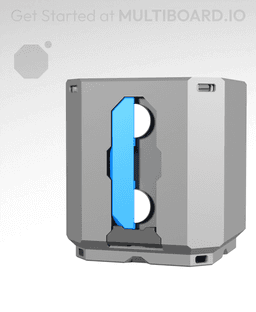

This is an "OXO" Magnet Rail, which represnts its shape and legth (Look at the images to understand). It can hold up to 3 magnets.

The magnets we recommend are 10x2 N52 Neodymium Disk Magnets.

If you use 3 magnets, make sure to alternate the polarity of the magnets (It's witchcraft I know). For example, the outer magnets postive and the middle magent negative.

Learn more about this part at https://multiboard.io/knowledge-hub

Printing Guidelines:

Use 3 perimeter wall thickness, 0.2 mm layer height, 15% infill, and no supports. Apart from that, use your printer's default settings.

The printing orientation is as provided in the file. Make sure the downloaded files are .STL. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.

For more information about printer settings, click here.

This object is part of Multiboard, a FREE and ridiculously modular organization system with thousands of parts, for creating the most adaptable workspace possible. Learn more and find ALL the parts at https://multiboard.io
