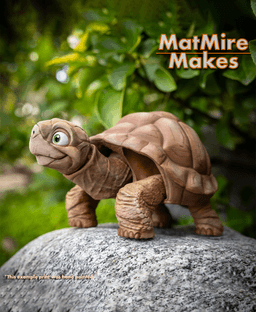

Introducing my articulated Tortoise design! It's been quite a fun challenge to design of a tortoise that could both stand and retract into it's shell!

It's fully print-in-place, you just have to crack the head free (similar to the bunny and tiger). To help him stand, there are small ball and socket joints on the ends of the legs. Just pull the legs out as far as you can, and they should snap into the position that will allow them to support it's weight. Then pop them back in to let him hide back in his shell. (The first few times might take some extra effort, but they should break-in nicely)

Here is a demo video of the model!

Multicolor 3mf included (works in PrusaSlicer and Bambu Studio)!!

PLEASE READ: All MatMire Makes Designs are protected under Copyright Law. Your purchase gives you the right to download and print the design for your personal use. You do NOT have permission to resell or redistribute those digital files in ANY way. This includes altered or "remixed" versions of the designs. Prints of the design cannot be sold without authorization.

To sell PRINTS of my designs, you must obtain authorization by joining the "Merchant" Tier of either my Patreon or MMF Tribe.

If you like this design, please checkout my Socials and give a follow. More designs are coming soon!

Please, share photos of your makes! I would love to see them!

Printing Details

  • Print-inPlace: no supports
  • Multicolor 3mf included! (will load in Bambu Studio or Prusa Slicer)
  • 3 Walls
  • 10% infill
    Pulling the legs out fully allows them to pop into sockets. That creates enough tension to make him stand up.  It may be difficult the first few times, but once it breaks-in, it should work with light effort.  The head has built in pre-supports, just twist the head after printing to crack the joint free.
    Here is a demo video of the print.
    This should generally scale down to about 60% with full articulation, on a well calibrated printer. Your mileage may vary.

*This model was designed for FDM printing. It was not designed for Resin printing, and I cannot guarantee good/functional results. Resin print at your own risk.


12 Likes4 DownloadsOctober 12, 2024


12 Likes4 DownloadsOctober 12, 2024
This model is restricted by licensing terms.

Instructions

Filament • 0.2mm

MaterialPLA
Layer height0.2 mm
Infill density10 %
SupportsNone
BrimNo
MulticolorAutomatic material system (AMS)
Infill styleGyroid
