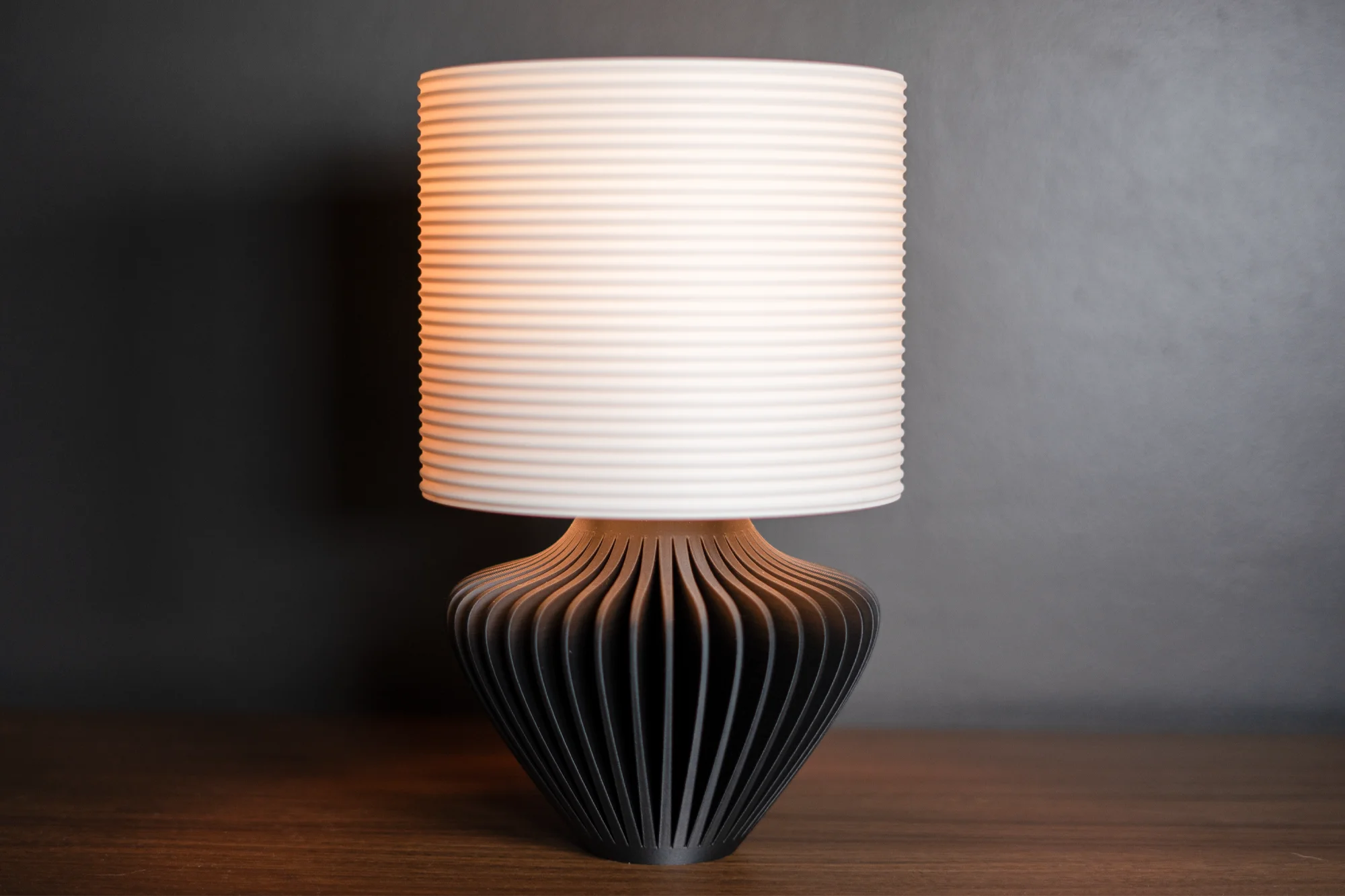

Another lamp! This is a pretty lengthy print, but worth it in my opinion. It uses the same shades and pendant light kits as my previous lamps.

The pendant light includes a locking ring that secures it to the base. To install, just insert the socket up through the bottom of the base, and screw on the locking ring to clamp it in place.

Note that you must only use LED bulbs (9 watts max) as traditional bulbs can get pretty hot and could cause damage to the plastic. I like multi color smart bulbs that I can control with my phone, but any standard 9W LED bulb will do.

Supports Supports are needed on the base for the shoulder that holds the pendant light socket in place, as well as the opening for the cord. I used normal snug supports.

Scaling I wouldn't recommend scaling this one since it perfectly fits the pendant light socket.

Orientation The base and shade should be right side up.

Print Settings *I've included the 3MF if you want to use my settings.

Base .2mm layer height 15% grid infill 2 walls

Shade .2mm layer height 10% concentric infill on the shade. If you use a concentric infill pattern on the whole shade, the supports that attach to the base will print without any infill. So I added a cylindrical modifier for the shade supports that uses a 15% grid infill pattern. 2 walls

Filament & Hardware Filament I used for this print: Overture Matt Black PLA & Overture Matte White PLA Pendant Light Cord Lamp Kit

Filament and hardware/non 3D printed items for this model can be found on my Amazon Storefront, linked here: https://hendricks.design/links/
