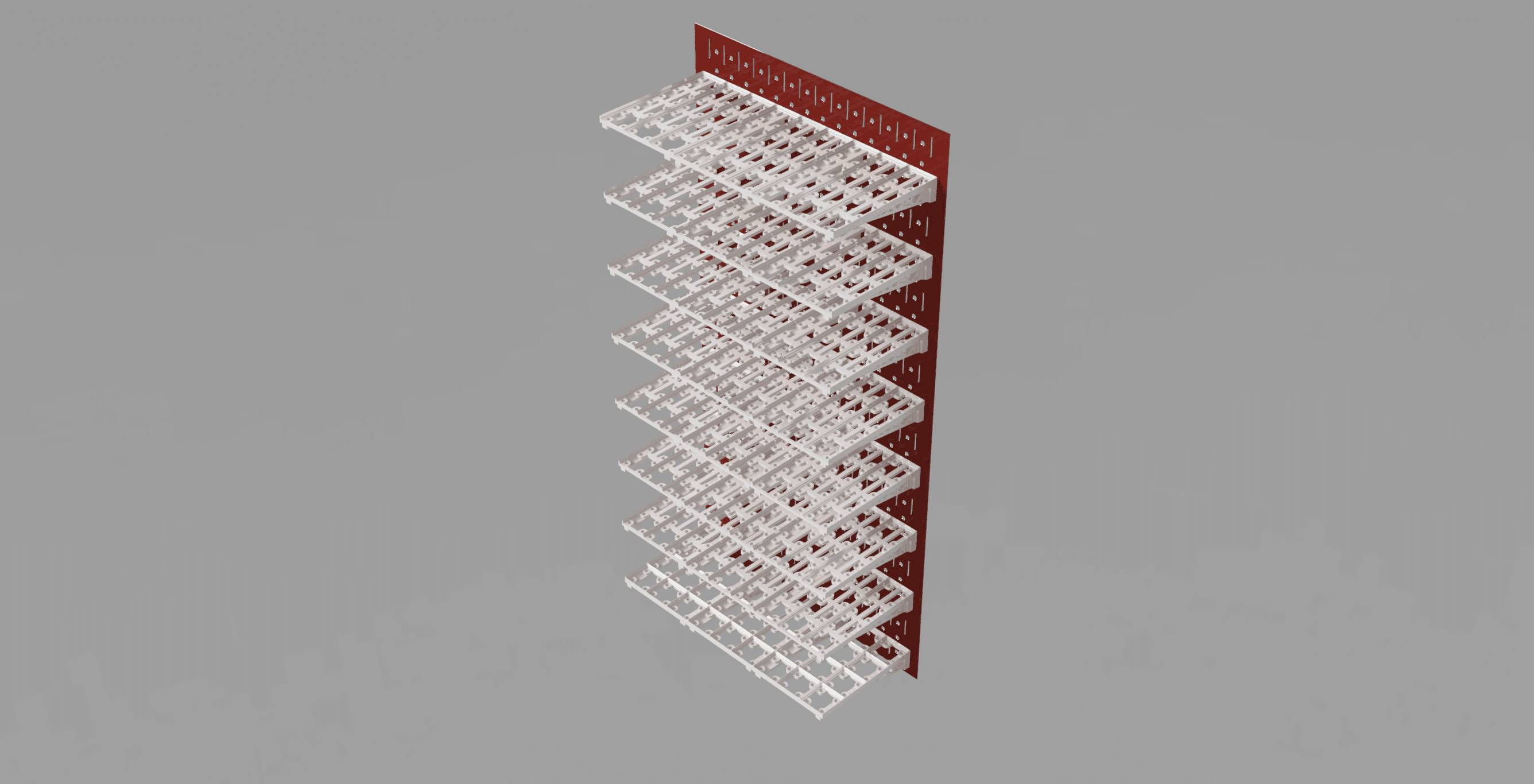

Introducing Grid Control!!! A new series of adapters to allow the mounting of Gridfinity frames on wall control panels.

These hooks can accommodate any Gridfinity frame that includes 3mm holes through the underside below the magnets. For testing, I used the Gridfinity Magnet Light Baseplate by RIP_Plo-Koon over on printables.

At the moment, there are hooks to add between 1-4 grids deep. These are broken into 3 different, 3-wide sections of grids. This provides centering of the grids on the Wall Control panel.
