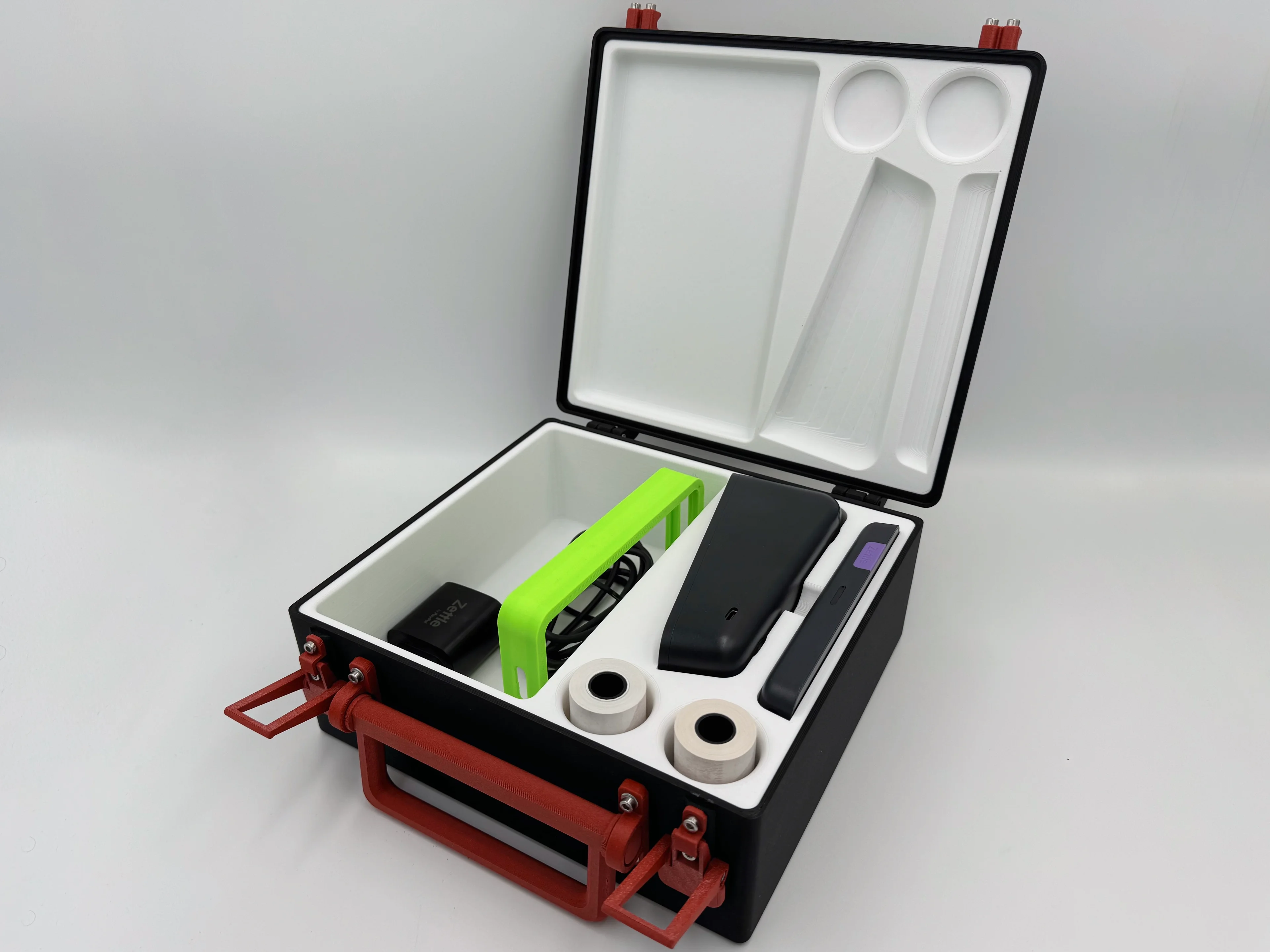

This is a case which holds the current Zettle terminal, its printer, two rolls of paper and has ample room in a separate compartment for the charger and charging cable with a bit of space left over for other items.

If you would like to see a colour 3D preview of this design with optional AR when viewed on a compatible mobile device please click here.

The model was designed by scanning the Zettle hardware with a MetroX, the scans were then reverse engineered with Quicksurface Pro, which were used to produce this case in Shapr3D. Hence, this is a premium model.

The case features a new latch I designed for this model. With the addition of feet to match the height of the hinges it is able to stand up straight on the hinged side. The handle is also hinged, to help it use up less space when in storage.

This model requires the following hardware for assembly:

• 12x M3 inserts - Ruthex or CNC Kitchen are the correct size
• 4x M3 nylon lock nuts
• 4x M3 washers
• 4x M3x20 hex cap screws
• 4x M3x16 hex cap screws
• 4x M3x12 hex cap screws
• 4x M3x8 hex cap screws
