Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:4899620.

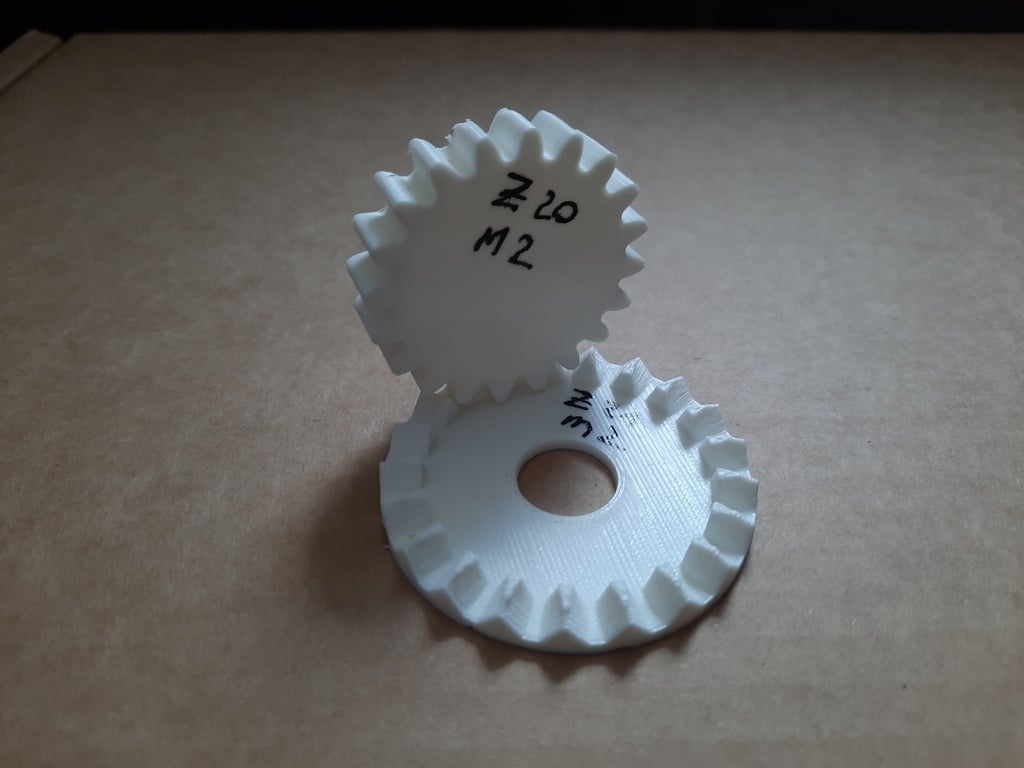

A Crown Gear with Module 2 and 21 Teeth, the Pinion has 20 Teeth.

The Diameter on the outside of the Crown Gear is 54mm.

The Pinion is a normal cog without any special geometry. It is 10mm wide.
