Full Size Anatomically-Correct 18-Piece Magnetic Human Skull Model

by
DaveMakesStuff
Follow
Follow
Remix Model
zekeyates123
zekeyates123
|
|
Image 13 of 22

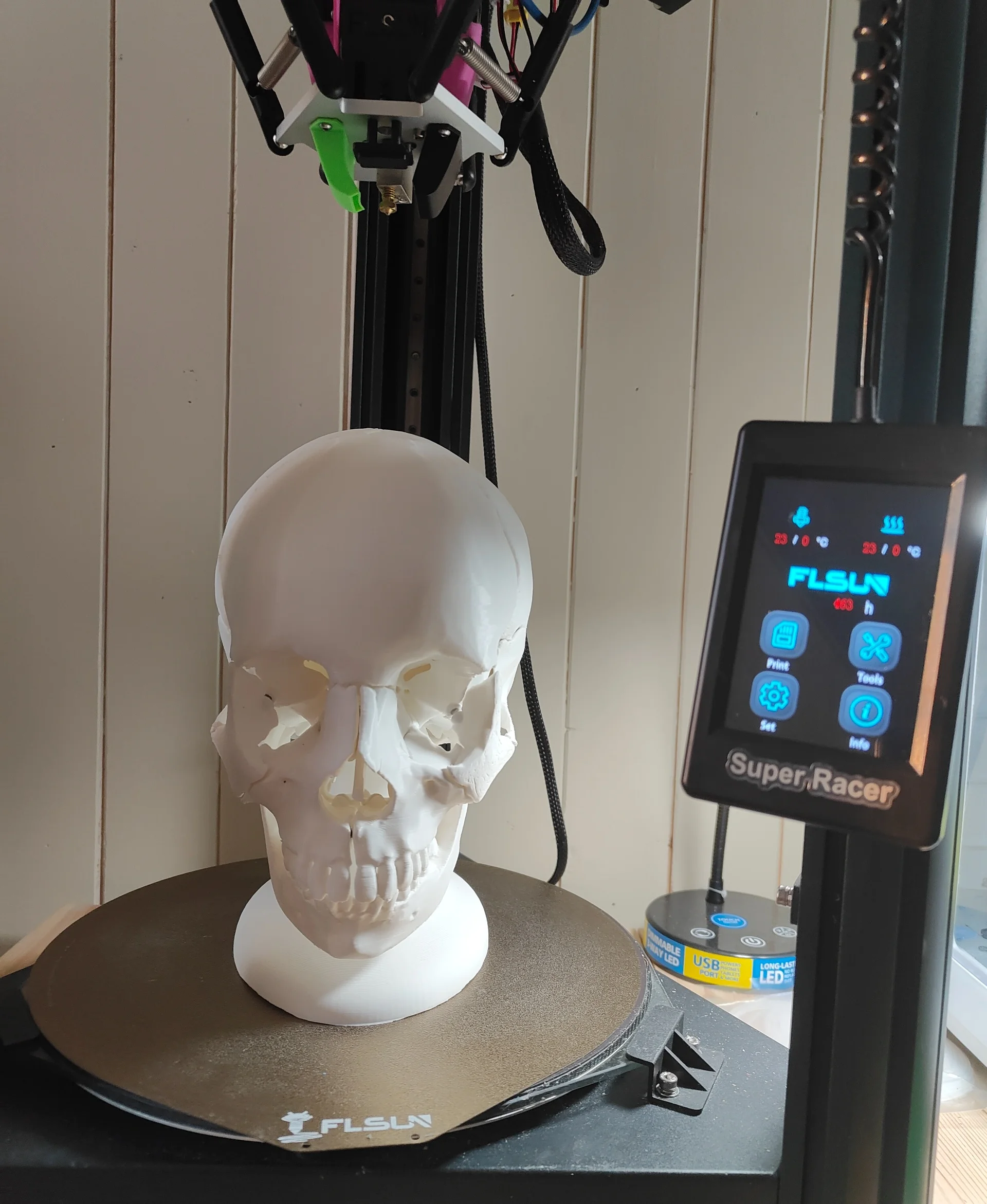

Full Size Anatomically-Correct 18-Piece Magnetic Human Skull Model - 03/18/2024 - 3d model
zekeyates123
zekeyates123
|
|
Image 13 of 22
Full Size Anatomically-Correct 18-Piece Magnetic Human Skull Model - 03/18/2024 - 3d model
2D
3D
Makes
Full Size Anatomically-Correct 18-Piece Magnetic Human Skull Model 3d model
Full Size Anatomically-Correct 18-Piece Magnetic Human Skull Model 3d model
Full Size Anatomically-Correct 18-Piece Magnetic Human Skull Model 3d model
Full Size Anatomically-Correct 18-Piece Magnetic Human Skull Model 3d model
Full Size Anatomically-Correct 18-Piece Magnetic Human Skull Model - Assembled skull with frontal bone removed - 3d model
Full Size Anatomically-Correct 18-Piece Magnetic Human Skull Model - Fully-assembled skull - 3d model
Full Size Anatomically-Correct 18-Piece Magnetic Human Skull Model - Anycubic Photon Mono 4k print. Thanks! - 3d model
Full Size Anatomically-Correct 18-Piece Magnetic Human Skull Model - Partially assembled - 3d model
Full Size Anatomically-Correct 18-Piece Magnetic Human Skull Model - Missing magnetic anchor point - 3d model
Full Size Anatomically-Correct 18-Piece Magnetic Human Skull Model - missing anchor point on right parietal bone in STL - 3d model
Full Size Anatomically-Correct 18-Piece Magnetic Human Skull Model - complete and on display.  Printed in Hatchbox Stone Granite PLA - 3d model
Full Size Anatomically-Correct 18-Piece Magnetic Human Skull Model - Skull was made in eSUN PLA+ Bone White at 0.2mm layer height and 15% infill. I added my own glasses holders in the lime green.

To answers the questions in my other comment:
1. YES. The magnets feel plenty strong for the headband and even for shaking the skull somewhat hard. I didn't print this solid, so it's still pretty light weight, but heavier prints would likely still hold as the recommended magnets at N52 are really strong.

2. Clearly yes as you can see in the image. The gap between the pterygoid plate and foramen magnum the stand goes through is plenty big. - 3d model
Full Size Anatomically-Correct 18-Piece Magnetic Human Skull Model - 03/18/2024 - 3d model
Full Size Anatomically-Correct 18-Piece Magnetic Human Skull Model 3d model
Full Size Anatomically-Correct 18-Piece Magnetic Human Skull Model 3d model
Full Size Anatomically-Correct 18-Piece Magnetic Human Skull Model 3d model
Full Size Anatomically-Correct 18-Piece Magnetic Human Skull Model 3d model
Full Size Anatomically-Correct 18-Piece Magnetic Human Skull Model - Excellent model, the missing magnet cup on the Right Parietal Bone does not make any notable difference in the strength. Printed on a Bambu P1P, 0.4mm nozzle using 0.16mm Optimal settings in Orca slicer. 10% gyroid infill with tree supports used ~500g of MH Build series PLA in Bone White. Total print time was ~ 22h with 21mm^3 max vol. flowrate.

During assembly I found that the large magnet pockets could fit two 6x2mm magnets stacked, and the small could fit a 3x1.5mm magnet. If I did it again I'd order 6x4mm magnets for the larger pockets. All were sourced from Amazon, no issues with holding power. - 3d model
Full Size Anatomically-Correct 18-Piece Magnetic Human Skull Model 3d model
Full Size Anatomically-Correct 18-Piece Magnetic Human Skull Model 3d model
Full Size Anatomically-Correct 18-Piece Magnetic Human Skull Model 3d model
Full Size Anatomically-Correct 18-Piece Magnetic Human Skull Model 3d model
This model is restricted by licensing terms.

This human skull model can be used for learning anatomy or just freaking out your friends. See here for assembly video: https://youtu.be/dm0RT-1eFFc To assemble with magnets, you will need: • 66 of 1/8” x 1/16” cylindrical • 36 of 1/4” x 1/8” cylindrical www.kjmagnetics.com is a good source of magnets. Files are provided in anatomical orientation. You will need to reorient and prepare them according to your preferences, equipment, and skill level. Here are some considerations: • Orient outer surfaces upwards so that the surfaces in contact with support structures are less visible in the final model. • As much as possible, avoid orienting the magnetic anchors downwards. There are some situations in which this is unavoidable. These can be cleaned up post-print. Here are considerations for assembly: • Before inserting magnets, clean out the magnet anchors with a 1/8” or 1/4” drill bit to remove any imperfections, allowing the magnets to sit properly. • Ensure that you insert magnets with polarity oriented to allow proper connection of bones. • You may need to use glue to secure some of the magnets in place. CA glue works well. Every attempt has been made to maintain anatomical correctness; however, the following small modifications were necessary to optimize the files for 3D printing: • The nasal bones, lacrimal bones and upper teeth are fused to ipsilateral maxilla. Lower teeth are fused to the mandible. They are too small and thin to print and assemble on their own. • Some areas of bone have been thickened to support the magnet anchors. • Gaps have been created or expended between fused joints to allow these bones to be separated. • The perpendicular plate of the ethmoid bone has been removed. It is too thin and there is limited space for it to fit properly. • Bones of the inner ear are not included. • This model includes only bony structures. "BodyParts3D, © The Database Center for Life Science licensed under CC Attribution-Share Alike 2.1 Japan".


1.2K Likes3.8K DownloadsApril 7, 2022
