MWO Huntsman

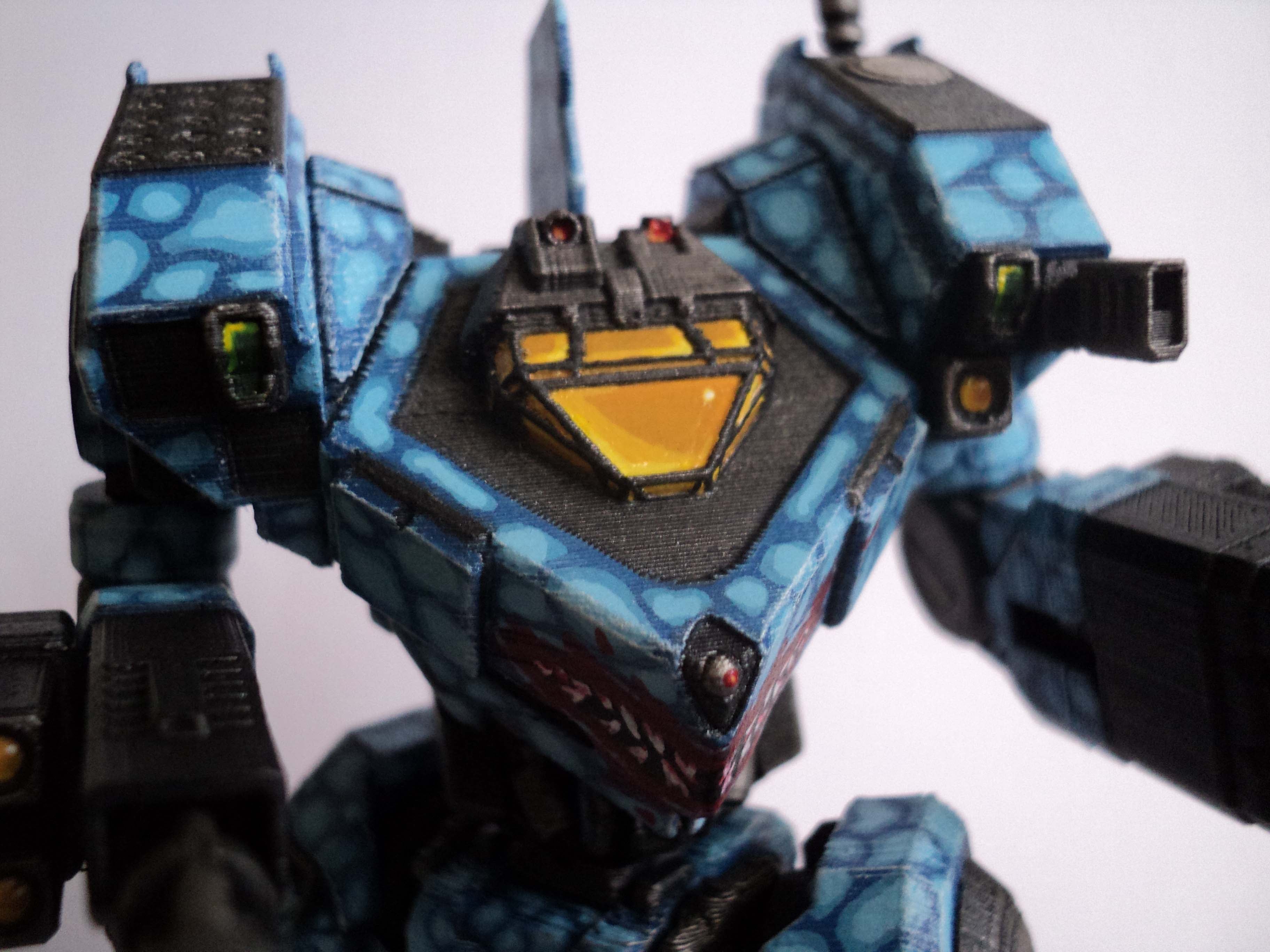

MechWarrior Online Huntsman, roughly 125mm tall.

Fully articulated, and tested, all parts should be error free and printer friendly. Multiple Torso and weapon options, and like the Atlas, does not require any glue for assembly. The scale might not be quite right though, as I scaled it so that the medium lasers were roughly the same size as the ones on the Atlas. And I also used a scale table from Mech Warrior Online, but, as the Huntsman was not on the table I had to guess a little using other 'Mechs in the same weight class. I have printed it at 75% scale and most of the detail, and all the joints still print/work, so if you would like it slightly smaller it should be fine.

All parts are specifically designed for FDM printing

Notes:

All the parts have been checked for errors and repaired. However as the original model was warped as well as missing parts and being full of errors, it may not be 100%. All the joints and pins have been test printed multiple times, and in varying orientations, and while some orientations are not the best suited for detail preservation, in all cases the pins/joints worked. The only joint that is a little finicky is the "MWO_huntsman_LeftArm_Lower_Type1" and "MWO_huntsman_LeftArm_Lower_Type2", which requires caution when pushing it into the "MWO_huntsman_LeftArm_Elbow_V3" socket.

Printing Instructions:

MWO_huntsman_LeftLeg_Foot_V5 (Flip LeftLeg_Foot in X-axis for right leg) [Print 2] MWO_huntsman_LeftLeg_Lower_V4 (Flip LeftLeg_Lower in X-axis for right leg) (Two options) [Print 2] MWO_huntsman_LeftLeg_Top_V3 (Flip LeftLeg_Top in X-axis for right leg) [Print 2]

MWO_huntsman_Waist_V2 [Print 1]

MWO_huntsman_Torso_Pin [Print 1]

MWO_huntsman_Torso_V5 (Four options) [Print 1] MWO_huntsman_Torso_V5_Opt3 Gauss (Only print if you print TorsoOpt3) [Print 1]

MWO_huntsman_LeftArm_Sholder_V4 (Flip LeftArm_Sholder in X-axis for right arm) [Print 2] MWO_huntsman_LeftArm_Elbow_V3 (Flip LeftArm_Elbow in X-axis for right arm) [Print 2] MWO_huntsman_LeftArm_Lower_Type1 (Flip LeftArm_Lower in X-axis for right arm) (Two options, Type1 & Type2) [Print 2] MWO_huntsman_LeftArm_Hand_Type1 (Flip LeftArm_Hand in X-axis for right arm) (Seven options for Type 1, Four options for Type2) [Print 2] MWO_huntsman_BigGatling, MWO_huntsman_Gatling, MWO_huntsman_Gauss, MWO_huntsman_PPC or MWO_huntsman_UAC [Print 1 or 2 ~ depending on the Hands you choose]

If you experience any problems, or would like to ask me something, please leave a comment.
