A commission by Tian, that he wanted to share with the community.

Almost all of the joints are similar/the same as joints in my other FDM Battlemechs, so they should all print/function fine, the one exception to that would be the shoulder joint, designed to be similar to an action figures ball/peg joint, and may require some testing.

Also, this Battlemech is compatible with all of my previous weapon attachments - which are included.

If you do print this, if you encounter any problems, or can think of improvements to the joints, please let me know

-Edit, added a V2,V3 & V4 of the Torso, without the big missile pods.

**All parts are specifically designed for FDM printing**


MWO Warhammer IIC

WarhammerIIc_Torso_Test.stl

A sample of some of the parts available in the full kit.

Pre-supported and test printed, Micro Gundam Model kit.

More info here :

https://cults3d.com/en/3d-model/game/msa-0011-ext-ex-s-gundam-artifact-scale

Or

https://bobertmax.gumroad.com/l/widsz

Or

https://boosty.to/bobertmax



MSA-0011 [Ext] Ex-S Gundam [Artifact Scale] [Free]

Ex-SGundam_Pose1.stl

Another fantastic model by BLaaR (which was based on his own paper model plans), with his permission, I remixed a few parts, added some detail here - and there, slapped some MWO styled lasers in there and scaled it to be (~roughly~) in line with some other patreon resin Battlemechs (Like the MW4 Fafnir). Also, besides the standard MechWarrior 4 version, I have included a more 'classic' inspired Templar, with a loadout in line with TLR1-O. Each version has two poses, which can be mirrored for even more options.


MW4 Templar Battletech Miniature

Templar_MW4_Pose1.stl

A sample of some of the parts available in the full builder.

Pre-supported and test printed, 6mm Battlemech.

More info here :

https://cults3d.com/en/3d-model/game/msa-0011-ext-ex-s-gundam-artifact-scale

Or

https://bobertmax.gumroad.com/l/widsz

Or

https://boosty.to/bobertmax



MiniaturemecH ConflictmasteR Builder - Sample

Conflictmaster_1G_Pose1_Com.stl


Based on the fantastic model by BLaaR (which was based on his own paper model plans), I remixed a few parts, added some detail here - and there, slapped some MWO styled lasers in there and scaled it to be (~roughly~) inline with some other patreon resin Battlemechs.


MW4 Fafnir Battletech Miniature

Fafnir_Full_Pose1.stl

MechWarrior Online Mad Cat MKII, roughly 140mm tall.

Fully articulated, and tested, all parts should be 100% printer friendly and error free. With multiple Torso and weapon options (more than any previous), and like the Atlas, does not require any glue for assembly. LRM pods can be printed separately and attached to certain torso's to make even more options than the 12 that I provided, and I added a few more weapon attachments as well as re-doing a few. Making this the most customizable 'Mech That I have done to this point.

***All parts are specifically designed for FDM printing***


Notes:

All the parts have been checked for errors and repaired. All the joints and pins have been test printed multiple times, and in varying orientations, and while some orientations are not the best suited for detail preservation, in all cases the pins/joints worked. So you should not have any problems.

Printing Instructions:

MWO_ MadcatmkII_LeftLeg_Foot (Flip LeftLeg_Foot in X-axis for right leg) [Print 2]
MWO_ MadcatmkII_LeftLeg_Foot_BackToe (Symmetrical) [Print 2]
MWO_ MadcatmkII_LeftLeg_Foot_FrontToe_1 (Flip LeftLeg_Foot_FrontToe_1 in X-axis for right leg) [Print 2]
MWO_ MadcatmkII_LeftLeg_Foot_FrontToe_2 (Flip LeftLeg_Foot_FrontToe_2 in X-axis for right leg) [Print 2]
MWO_ MadcatmkII_LeftLeg_Lower (Flip LeftLeg_Lower in X-axis for right leg) (Two options) [Print 2]
MWO_ MadcatmkII_LeftLeg_Top (Flip LeftLeg_Top in X-axis for right leg) [Print 2]

MWO_ MadcatmkII_Waist [Print 1]

MWO_ MadcatmkII_Torso_Pin [Print 1]

MWO_ MadcatmkII_Torso (Twelve options) [Print 1]
*Some of the Torso options have open shoulder sections for LRM attachments, where any of the "MWO_ MadcatmkII_Torso_LRM"s can be used, (flip Torso_LRM in X-axis for right side )[Print 1 or 2 depending]

MWO_ MadcatmkII_LeftArm (Flip LeftArm in X-axis for right arm) (Seven options) [Print 2]
*Some of the Arm options have weapon attachment slots, where any of the "MWO_ MadcatmkII_Weapon"s can be used [Print 1 or 2 depending]

If you experience any problems, or would like to ask me something, please leave a comment.


MWO Mad Cat MKII

MWO_ MadcatmkII_Torso (repaired).stl

MechWarrior Online Timberwolf, roughly 130mm tall.

Fully articulated, and tested, all parts should be 100% printer friendly and error free. Most of the joints are the same as the Articulated MWO Timberwolf by 7Fish (https://www.thingiverse.com/thing:2739971), aside from the ones that I edited (I added ball joints to the upper legs and in the arms, and I edited the ankle joint to allow for ankle tilt).

**If you would like to print one of my optional torso or weapon parts but want to print the rest of the Timberwolf by 7Fish (if you would like to use his prebuilt supports for eg.) you can do so, and everything should fit/work.

***All parts are specifically designed for FDM printing***


Notes:

All the parts have been checked for errors and repaired. All the joints and pins have been test printed multiple times, and in varying orientations, and while some orientations are not the best suited for detail preservation, in all cases the pins/joints worked. So you should not have any problems.

Printing Instructions:

MWO_Timberwolf_FootHub (Flip LeftLeg_FootHub in X-axis for right leg) [Print 2]
MWO_Timberwolf_Toes_FrontLeft_Pt1 (Symmetrical) [Print 2]
MWO_Timberwolf_Toes_FrontLeft_Pt2 (Symmetrical) [Print 2]
MWO_Timberwolf_Toes_FrontRight_Pt1 (Symmetrical) [Print 2]
MWO_Timberwolf_Toes_FrontRight_Pt2 (Symmetrical) [Print 2]
MWO_Timberwolf_Toes_Back_Pt1 (Symmetrical) [Print 2]
MWO_Timberwolf_Toes_Back_Pt2 (Symmetrical) [Print 2]
MWO_Timberwolf_Leftleg_Lower (Flip LeftLeg_Lower in X-axis for right leg) (Two options) [Print 2]
MWO_Timberwolf_Leftleg_Top (Flip LeftLeg_Top in X-axis for right leg) [Print 2]

MWO_Timberwolf_Waist [Print 1]

MWO_Timberwolf_TorsoPin [Print 1]

MWO_Timberwolf_Torso_Antena [Print 1]
MWO_Timberwolf_Torso (Ten options) [Print 1]
*Some of the Torso options have weapon attachment slots, where any of the "MWO_Timberwolf_Weapon_"s can be used [Print 1 or 2 depending]

MWO_Timberwolf_LeftArm_UpperPt1 (Flip LeftArm_UpperPt1 in X-axis for right arm) [Print 2]
MWO_Timberwolf_LeftArm_UpperPt2 (Flip LeftArm_UpperPt2 in X-axis for right arm) (Two Types & Two options) [Print 2]
MWO_Timberwolf_LeftArm_Lower (Flip LeftArm_Lower in X-axis for right arm) [Print 2]
MWO_Timberwolf_LeftArm_Elbow_V2 (Flip LeftArm_Elbow in X-axis for right arm) [Print 2]
MWO_Timberwolf_LeftArm_Hand (Flip LeftArm_Hand in X-axis for right arm) (Ten options) [Print 2]
*Some of the Hand options have weapon attachment slots, where any of the "MWO_Timberwolf_Weapon_"s can be used [Print 1 or 2 depending]

If you experience any problems, or would like to ask me something, please leave a comment.


MWO Timberwolf

MWO_Timberwolf_Torso (repaired).stl

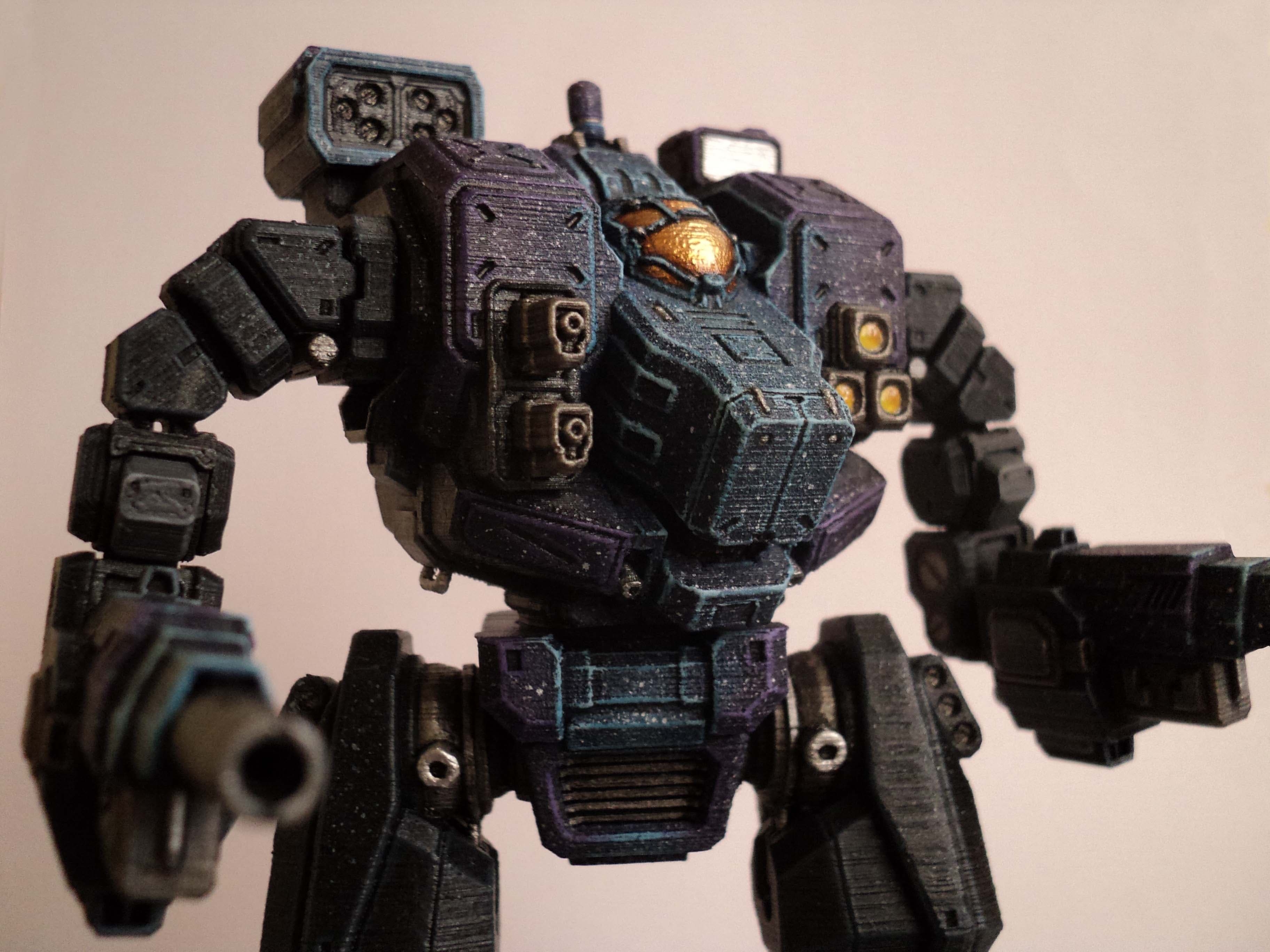

MechWarrior Online Hellbringer, roughly 130mm tall.

Fully articulated, and tested, all parts are error free and printer friendly. Multiple Torso and weapon options, and like the Atlas, does not require any glue for assembly. I used a scale table from Mech Warrior Online to scale the 'Mech. But if you would like to print it a little bit smaller, most of the detail and joints should still print/work at 75% ~though I have not tested this.

***All parts are specifically designed for FDM printing***


Notes:

All the parts have been checked for errors and repaired. All the joints and pins have been test printed multiple times, and in varying orientations, and while some orientations are not the best suited for detail preservation, in all cases the pins/joints worked. So you should not have any problems.

Printing Instructions:

MWO_Hellbringer_LeftLeg_Foot (Flip LeftLeg_Foot in X-axis for right leg) [Print 2]
MWO_Hellbringer_LeftLeg_Lower (Flip LeftLeg_Lower in X-axis for right leg) [Print 2]
MWO_Hellbringer_LeftLeg_Knee (Flip LeftLeg_Knee in X-axis for right leg) [Print 2]
MWO_Hellbringer_LeftLeg_Top (Flip LeftLeg_Top in X-axis for right leg) [Print 2]

MWO_Hellbringer_Waist [Print 1]

MWO_Hellbringer_TorsoPin [Print 1]

MWO_Hellbringer_Torso (Four options) [Print 1]
*Some of the Torso options have weapon attachment slots, where any of the "MWO_Hellbringer_Weapon_"'s can be used [Print 1 or 2 depending]

MWO_Hellbringer_LeftArm_Shoulder (Flip LeftArm_Sholder in X-axis for right arm) [Print 2]
MWO_Hellbringer_LeftArm_UpperPt1 (Flip LeftArm_UpperPt1 in X-axis for right arm) [Print 2]
MWO_Hellbringer_LeftArm_UpperPt2 (Flip LeftArm_UpperPt2 in X-axis for right arm) (Two options) [Print 2]
MWO_Hellbringer_LeftArm_Lower (Flip LeftArm_Lower in X-axis for right arm) [Print 2]
MWO_Hellbringer_LeftArm_Elbow_V2 (Flip LeftArm_Elbow in X-axis for right arm) [Print 2]
MWO_Hellbringer_LeftArm_Hand (Flip LeftArm_Hand in X-axis for right arm) (Ten options) [Print 2]
*Some of the Hand options have weapon attachment slots, where any of the "MWO_Hellbringer_Weapon_"'s can be used [Print 1 or 2 depending]

If you experience any problems, or would like to ask me something, please leave a comment.


MWO Hellbringer

MWO_Hellbringer_Torso (repaired).stl

MechWarrior Online Huntsman, roughly 125mm tall.

Fully articulated, and tested, all parts should be error free and printer friendly. Multiple Torso and weapon options, and like the Atlas, does not require any glue for assembly. The scale might not be quite right though, as I scaled it so that the medium lasers were roughly the same size as the ones on the Atlas. And I also used a scale table from Mech Warrior Online, but, as the Huntsman was not on the table I had to guess a little using other 'Mechs in the same weight class. I have printed it at 75% scale and most of the detail, and all the joints still print/work, so if you would like it slightly smaller it should be fine.

***All parts are specifically designed for FDM printing***


Notes:

All the parts have been checked for errors and repaired. However as the original model was warped as well as missing parts and being full of errors, it may not be 100%. All the joints and pins have been test printed multiple times, and in varying orientations, and while some orientations are not the best suited for detail preservation, in all cases the pins/joints worked. The only joint that is a little finicky is the "MWO_huntsman_LeftArm_Lower_Type1" and "MWO_huntsman_LeftArm_Lower_Type2", which requires caution when pushing it into the "MWO_huntsman_LeftArm_Elbow_V3" socket.

Printing Instructions:

MWO_huntsman_LeftLeg_Foot_V5 (Flip LeftLeg_Foot in X-axis for right leg) [Print 2]
MWO_huntsman_LeftLeg_Lower_V4 (Flip LeftLeg_Lower in X-axis for right leg) (Two options) [Print 2]
MWO_huntsman_LeftLeg_Top_V3 (Flip LeftLeg_Top in X-axis for right leg) [Print 2]

MWO_huntsman_Waist_V2 [Print 1]

MWO_huntsman_Torso_Pin [Print 1]

MWO_huntsman_Torso_V5 (Four options) [Print 1]
MWO_huntsman_Torso_V5_Opt3 Gauss (Only print if you print TorsoOpt3) [Print 1]

MWO_huntsman_LeftArm_Sholder_V4 (Flip LeftArm_Sholder in X-axis for right arm) [Print 2]
MWO_huntsman_LeftArm_Elbow_V3 (Flip LeftArm_Elbow in X-axis for right arm) [Print 2]
MWO_huntsman_LeftArm_Lower_Type1 (Flip LeftArm_Lower in X-axis for right arm) (Two options, Type1 & Type2) [Print 2]
MWO_huntsman_LeftArm_Hand_Type1 (Flip LeftArm_Hand in X-axis for right arm) (Seven options for Type 1, Four options for Type2) [Print 2]
MWO_huntsman_BigGatling, MWO_huntsman_Gatling, MWO_huntsman_Gauss, MWO_huntsman_PPC or MWO_huntsman_UAC [Print 1 or 2 ~ depending on the Hands you choose]

If you experience any problems, or would like to ask me something, please leave a comment.


MWO Huntsman

MWO_huntsman_Torso_V5 (repaired).stl

MechWarrior Online Atlas, roughly 140mm tall.

Fully articulated, and tested, all parts should be 100% printer friendly and error free. Most of the joints are the same as the Articulated MWO Atlas by 7Fish (https://www.thingiverse.com/thing:2756087), aside from the ones that I edited (I added ball joints to the upper legs and in the shoulders, and I edited the ankle joint to allow for ankle tilt).

**If you would like to print one of my optional torso or weapon parts but want to print the rest of the Atlas by 7Fish (if you would like to use the prebuilt supports for eg.) you can do so, and everything should fit/work.

Includes "Atlas_AC20_Opt4_repaired" - a variant of the AC20 attachment, similar to the Atlas Solaris Hero "Kraken".

Heavy Gauss, enough said.

***All parts are specifically designed for FDM printing***


Notes:

All the parts have been checked for errors and repaired. All the joints and pins have been test printed multiple times, and in varying orientations, and while some orientations are not the best suited for detail preservation, in all cases the pins/joints worked. So you should not have any problems.

Printing Instructions:

Atlas_Foot_V2 (Symmetrical) [Print 2]
Atlas_Toe (Symmetrical) [Print 4]
Atlas_LowerLLeg_V2 (Flip LowerLLeg in X-axis for right leg) [Print 2]
Atlas_Knee (Flip Knee in X-axis for right leg) [Print 2]
Atlas_UpperLLeg_V2 (Flip UpperLLeg in X-axis for right leg) [Print 2]

Atlas_Pelvis (Two options) [Print 1]
Atlas_Pelvis_Add (Symmetrical) [Print 2]

Atlas_Torso Pin [Print 1]

Atlas_Torso (Three options) [Print 1]
Atlas_SRM6 [Print 1]
Atlas_AC20 (Three options) [Print 1 or 2 ~ depending on the torso you choose]

Atlas_Sholder_V2 (Flip Sholder in X-axis for right arm) [Print 2]
Atlas_UpperLArm_V2.1 (Flip UpperLArm in X-axis for right arm) [Print 2]
Atlas_Elbow_1_V2 (Flip Elbow_1 in X-axis for right arm) [Print 2]
Atlas_Elbow_2 (Flip Elbow_2 in X-axis for right arm) [Print 2]
Atlas_Elbow_3 (Flip Elbow_3 in X-axis for right arm) [Print 2]
Atlas_LowerLArm (Flip LowerLArm in X-axis for right arm) (Two options) [Print 2]
Atlas_Lower Arm Add (Symmetrical) (Three options) [Print 2]

If for some reason you do experience problems while printing, or would like to ask me something, please leave a comment.


MWO Atlas

Atlas_Torso (repaired).stl

Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:4580392.

**Head over to my Cults or Gumroad pages for all my designs**

Link: https://cults3d.com/en/users/BobertmaX/creations
Link: https://bobertmax.gumroad.com/


Thanx to the fantastic work by DeSteiner (as well as his help in making the custom text), I was inspired to make a few custom parts for his prop revolver.

All parts have been test printed, and will have the same fit as the original parts do.

*You need to download the original "Prop Gun | Revolver - Single Action" from DeSteiner*

Link : https://www.printables.com/model/276918
