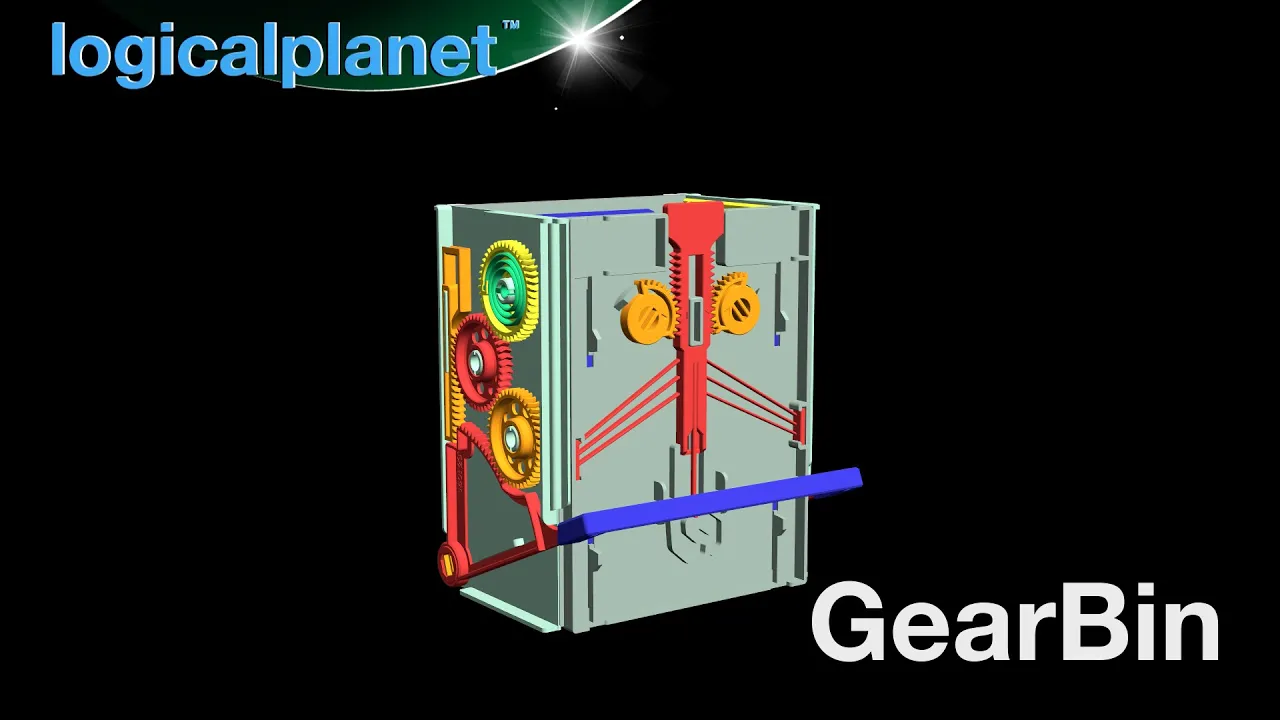

This version of GearBin™, which I have created at the request of many users, has an open frame allowing you to see the gears and push mechanism.  Otherwise, the GearBin is and functions the same.  The internal parts are all the same as the original GearBin.

The housing of this Open Frame Edition can be used in 2 ways as follows:

With the front and sides open (no covering).  In this scenario, an additional part is required to retain the push-push mechanism’s indexing arm which was previously contained by the front housing.
With the front and sides covered with clear or translucent panels.  I have included printable panels which (in my experience) are translucent but because the gears sit right up next to the panels they are relatively visible.  Or you could use the panel STLs to fabricate the panels in a clear material.

GearBin is a fully 3D printable mini trash bin with a unique mechanical twist. Designed for use with biodegradable dog waste/poop bags as liners, it’s the ideal solution for food scraps, backyard clean-up, BBQ prep, or anywhere you want a tidy, compact bin that works smarter - even your desk.

I chose to use biodegradable dog waste/poop bags for this because they are a fraction of the cost of biodegradable kitchen bags and smaller so you can discard them more frequently at a lower cost.

**Ideal For**
Office or desk
Kitchen countertops
Outdoor prep areas and BBQ stations
Composting and daily food waste
Eco-conscious homes using dog poop bags for liners

**Features**

✅ Gear-Driven Push Lid: Open the lid with a simple press on the front bar—no electronics, just clean, mechanical magic.
✅ Folding Liner Frame: The innovative push-push mechanism folds the bag frame inwards for easy loading and unloading of liners. Holds standard dog poop bags securely.
✅ 100% Snap-Fit Assembly: No glue, screws, or springs. Just print, snap together, and you're ready to go.
✅ Optional Bucket Insert: Use with or without a removable bucket insert (included) to catch leaks and assist with liner removal.

Make trash collection cleaner, smarter, and more efficient—with GearBin™, the mini bin that thinks big.

Visit my blog for more details and other designs:
https://www.logicalplanet.com/

**Revisions and Updates**
I occasionally update and revise my designs. When I do, I’ll document the changes here. Check back periodically for the latest revision notes or if you’re experiencing any issues with a model.

GearBin Open Frame Edition – Mini Mechanized Trash Bin

GearBin 1v00a3 880 Wall Mounting Plate.stl

**GearBin™ – Mini Mechanized Trash Bin | Fully 3D Printable with Gear-Driven Lid with Folding Bag Frame**

GearBin™ is a fully 3D printable mini trash bin with a unique mechanical twist. Designed for use with biodegradable dog waste/poop bags as liners, it’s the ideal solution for food scraps, backyard clean-up, BBQ prep, or anywhere you want a tidy, compact bin that works smarter - even your desk.

I chose to use biodegradable dog waste/poop bags for this because they are a fraction of the cost of biodegradable kitchen bags and smaller so you can discard them more frequently at a lower cost.

There is also a wall mounting bracket included so you can hook the GearBin onto the back of a cabinet door or wall.

**Ideal For**
Office or desk
Kitchen countertops
Outdoor prep areas and BBQ stations
Composting and daily food waste
Eco-conscious homes using dog poop bags for liners

**Features**

✅ Gear-Driven Push Lid: Open the lid with a simple press on the front bar—no electronics, just clean, mechanical magic.
✅ Folding Liner Frame: The innovative push-push mechanism folds the bag frame inwards for easy loading and unloading of liners. Holds standard dog poop bags securely.
✅ 100% Snap-Fit Assembly: No glue, screws, or springs. Just print, snap-together, and you're ready to go.
✅ Optional Bucket: Use with or without a removable bucket (included) to catch leaks and assist with liner removal.  Or use with the bucket and without bags.

Make trash collection cleaner, smarter, and more efficient—with GearBin™, the mini bin that thinks big.

Visit my blog for more details and other designs:
https://www.logicalplanet.com/

**Assembly Notes**
I will have an assembly instruction video posted shortly.

**Revisions and Updates**
I occasionally update and revise my designs. When I do, I’ll document the changes here. Check back periodically for the latest revision notes or if you’re experiencing any issues with a model.

2025-05-26 Model Updated (revisions 1v00a3)
I have revised the Lid and Lifters so that the lid lifts up vertically before rotating.  This was the original intent but I realized after posting it I had slipped away from that.
I have also added a wall mount bracket.  And, in order for the GearBin to attach to the wall mount, a new Top Housing has been posted that has mounting holes in the back.
Lastly, if you were one of the first few people to download the model, I have also posted revised versions of the Compliant Index, this newer one operates the push push mechanism more consistently.
