The walking skeleton hand works with a wind-up mechanism.
When fully wound, the hand crawls about 30 cm forward.

Update:
The spring and rod from the 4set + spring kit have been updated.
The gap has been slightly increased, and the spring now includes a small bump with a matching slot on the rod. This prevents the spring from rotating and makes the design more universal for both well-tuned and untuned printers.

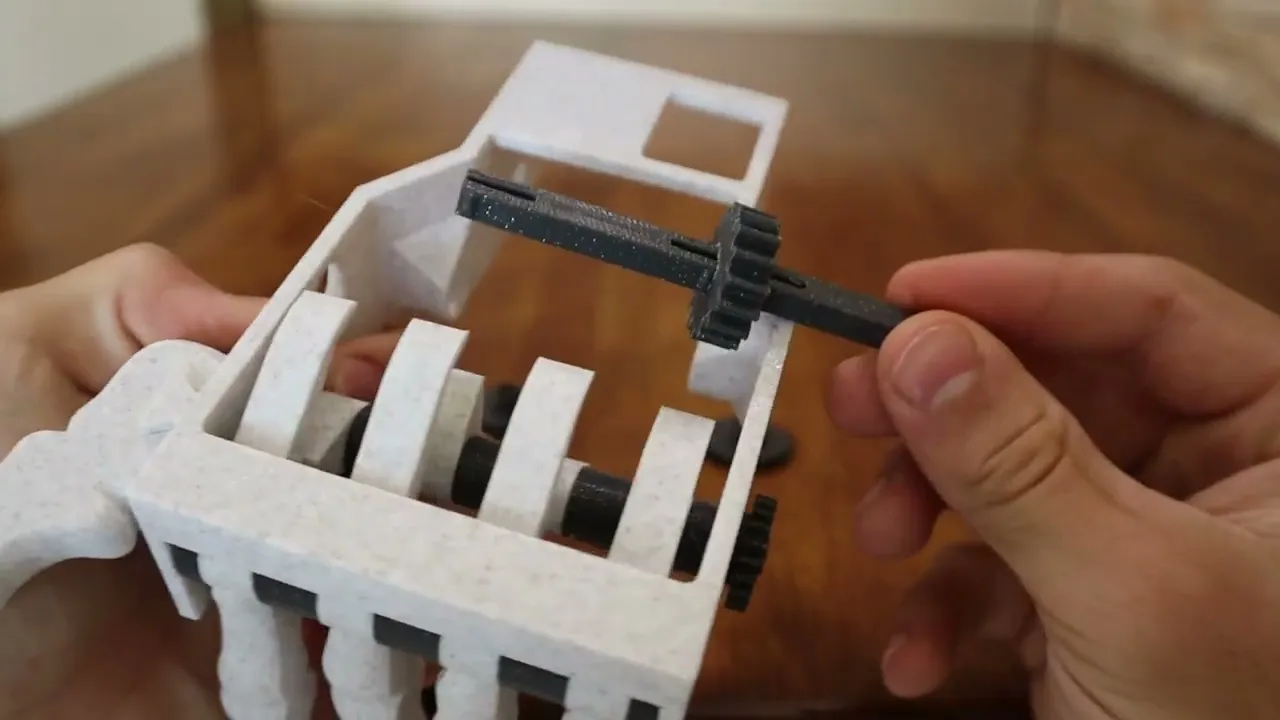

Assembling: https://www.youtube.com/watch?v=DIuCoO7VbNs

Short show video:
https://www.instagram.com/reel/DPyo2P5iICh/?utm_source=ig_web_copy_link&igsh=MzRlODBiNWFlZA==

I have sorted the files into sets, and the set number is marked on the body.
In the tutorial, I also assembled the design step by step according to these sets.

PRINTING AND ASSEMBLING NOTES:

Your printer must be properly calibrated and produce accurate dimensions.
Material choice is important — PLA Basic and PLA Marble work best. Other filaments are too soft, and the spring won’t unwind fully.

! Do not scale the model up or down — any size change will affect the mechanism’s performance!

NO SUPPORT! or glue are needed — all parts snap together easily.

Recommended: 0.2 mm layer height, 20% infill for better strengh.

Happy printing!

3D printing settings
Please be sure printer flow is configured

Walking Skeleton Hand

4 Gear set + Spring.stl

-------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------

_Thank you for visiting my page! If you can, please consider supporting my art with a [subscription](https://than.gs/u/1514642?plans=true). Members will unlock ALL of my designs as well as the commercial rights to sell physical prints for as long as they are members._

_I also invite you to join my Discord channel, whether you're a reseller or a fan. You'll find a dedicated space where you can communicate directly with me and other members:
https://discord.gg/pUW67mEFrb_

-------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------


The Skeleton Version of the automata tapping hand, just for members

Video tutorial: https://www.youtube.com/watch?v=lFiVCcCdTiI

-------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------

**REMEMBER THAT ALL MY FILES ARE PROTECTED BY A CC LICENSE AND ARE NOT INTENDED FOR COMMERCIAL PURPOSES UNLESS YOU HAVE [SUBSCRIBED TO A MEMBERSHIP PLAN ON THANGS](https://than.gs/u/1514642?plans=true) - IF YOU USE MY 3D FILES FOR COMMERCIAL PURPOSES, YOU HARM MY WORK AND MY COLLABORATORS - DON'T DO IT!**

-------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------
3D Model done with Rhino8: https://www.rhino3d.com/

_How do I take such high-quality photographs?
Here's my equipment:_

_Camera: https://amzn.to/3RPDj2c_
_Lightbox: https://amzn.to/4btNvV0_
_Tripod: https://amzn.to/3L51fuT_

Tappin Hand Skeleton Version (Members only)

Human_Base.stl

-------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------

_Thank you for visiting my page! If you can, please consider supporting my art with a [subscription](https://than.gs/u/1514642?plans=true). Members will unlock ALL of my designs as well as the commercial rights to sell physical prints for as long as they are members._


-------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------

Assembly video guide: https://www.youtube.com/watch?v=lFiVCcCdTiI&t=1s


My latest project, a reinterpretation of this kinetic sculpture: (youtube.com/watch?v=J3qVvb6TYuU)
Instead of using a motor with an integrated RPM reducer + transmission belt, a series of gears are employed to reduce RPM (down to approximately 30 RPM), along with a standard 3V motor powered by two 1.5-volt batteries.
The 3D model was created using Rhino 5.
The print was made using a Zortrax M300 + ABS and HIPS.

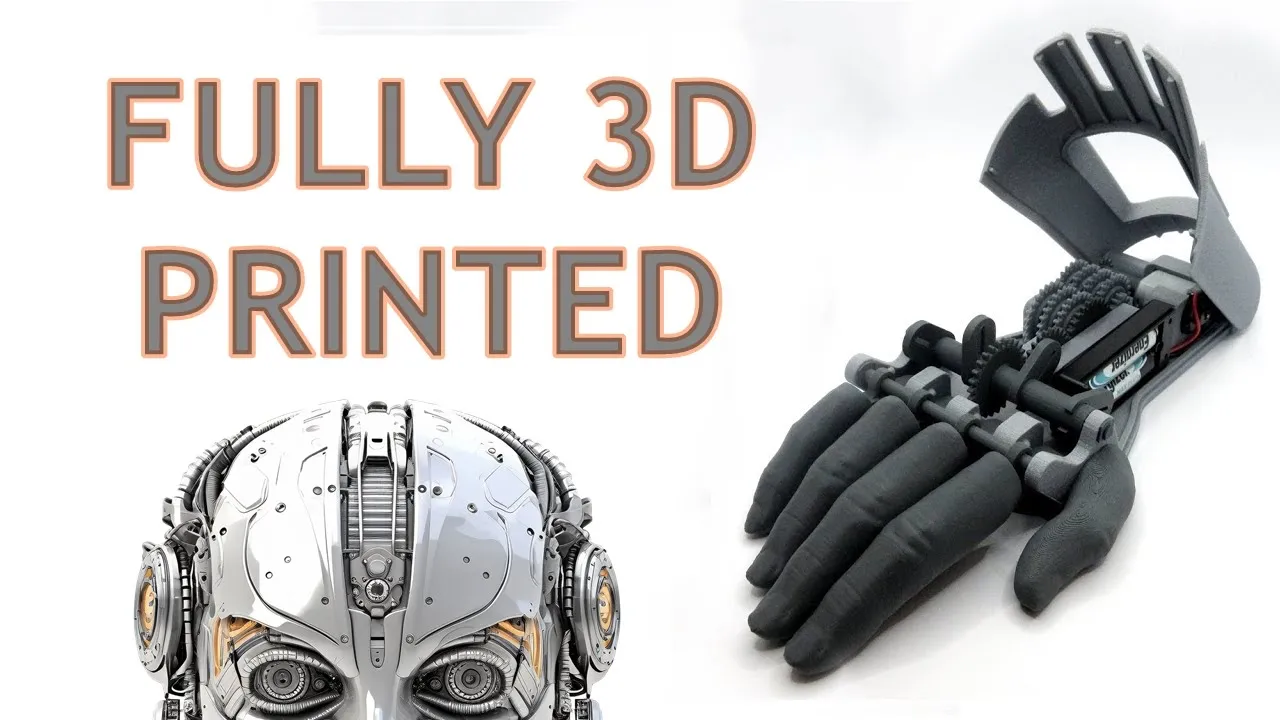

🤖 What Is the Tapping Hand Automata? 🤖

An extraordinary creation that emulates finger movement during moments of waiting. Whether you're a tech enthusiast, a fan of fun gadgets, or just looking for an innovative pastime, you're in the right place!

The model is fully 3D printable and only requires a standard 3V DC motor and AAA 1.5-volt batteries

3D Model done with Rhino8: https://www.rhino3d.com/
