This is a fully functioning 3D printed grandfather clock.  Using mainly 3D printed parts, this clock was specifically engineered to be assembled in minutes, and can run for over 6 days on a single winding. With a little bit of tuning, it can accurate keep time with that classic tick-tock sound.

The video below shows how easily this clock can be assembled

**The STL File:**

Prints on all standard 3d printers without supports, requires the following additional parts to assemble:

- 21 M4x12| 11 M4x20 Screws (https://amzn.to/3zgQb8f)
- 23 M4 Washers (https://amzn.to/3E1crFU)
- 17 624Z 13mm OD/4mm ID Bearings (Like these https://amzn.to/3DtUUpH)
- 1mm Nylon String or Fishing Line (I used string from this set https://amzn.to/3DtUUpH)
- 5 pounds of weight - could be ball bearings or a dumbbell (I used one from this set https://amzn.to/3zfVKUy)

**Recommended print settings:**

Layer Height: 0.2mm
Nozzle: 0.4mm
Infill: 15-20%
Material Required: ~650g (Printed in PLA)
Minimum Build Plate Required: 180x180mm


**All the files have been pre-oriented to save you some set up time! All you need to do is drop the parts into your slicer and hit print!

The 3D Printed Wall Clock

0 Entire Part Layout (For Planning).stl

This is the escapement powered by Bob, the humble escapement operator.  Bob is the one responsible for adding a pulse to keep the pendulum swinging, as well as triggers the advancement of the escapement wheel. This is my take on this escapement designed by dgreene909

Here is the video that shows how easily this mechanism can be assembled!
https://youtu.be/3lrOB2xOD-U?si=G2IuRQe3FXeFsXqi

The STL File:
Prints on all standard 3d printers without supports, requires the following additional parts to assemble:

- 8 M4x12 Screw (I used https://geni.us/Sf5DpA9)
- 6 M4 Washers (These are the ones https://geni.us/tBNZNg)
- 4 624Z 13mm OD/4mm ID Bearings (These work great https://geni.us/lYZB)
- 1mm Nylon String or Fishing Line (I used string from this set https://geni.us/10HpwLY)

Recommended print settings:
Layer Height: 0.2mm
Nozzle: 0.4mm
Infill: 15-18%
Total Filament Required: ~145g
Minimum Build Plate Required: 200x200mm

**All the files have been pre-oriented to save you some set up time! All you need to do is drop the parts into your slicer and hit print!

The Walking Bob Escapement

Build 3 - 7.5h - 53g.stl

Is it digital, or is it analog?  Well it's some combination of the two! The rack driven 7 segment display is a fully 3D printed mechanical desk piece that is equal parts satisfying and bewildering.  Turn the top dial to rotate a series of 14 cams which push on a rack and pinion system to reveal a number.  Operate is manually, or add an optional servo motor to the back and have the thing run on it's own.

You could even throw 4 of them side by side to create a clock!  Add another two and get the seconds.  Give one a randomized number generator and it becomes a dice!  Endless possibilities!

The STL File:

Prints on all standard 3d printers, requires no additional tools or assembly, and assembles in seconds.
For servo attachment (not necessary), it used these servos: https://geni.us/G8ArjNg

Recommended print settings:
Layer Height: 0.2mm
Nozzle: 0.4mm
Infill: 15-18%
Total Material: ~190g

Can print on any sized 3D printer.

Rack Driven 7 Segment Display

Build 2 - Cams and Housing - 125g.stl

Rack Side (x4).stl

Top Plate.stl

Detent.STL

Cam (Larger Clearance)_Bottom Inverse.STL

Cam (Larger Clearance)_Bottom Left Inverse.STL

Cam (Larger Clearance)_Bottom Left.STL

Cam (Larger Clearance)_Bottom Right Inverse.STL

Cam (Larger Clearance)_Bottom Right.STL

Cam (Larger Clearance)_Bottom.STL

Cam (Larger Clearance)_Middle Inverse.STL

Cam (Larger Clearance)_Middle.STL

Cam (Larger Clearance)_Top Inverse.STL

Cam (Larger Clearance)_Top Left Inverse.STL

Cam (Larger Clearance)_Top Left.STL

Cam (Larger Clearance)_Top Right Inverse.STL

Cam (Larger Clearance)_Top Right.STL

Cam (Larger Clearance)_Top.STL

8mm C-Clamps (x6).stl

Central Clock Connector.stl

Dot Centres.stl

Dot Outlines.stl

Base Piece (For 2 Side by Side Modules).STL

Central Counter Connectors (to connect base pieces together).stl

Add a stylish twist to your interior with this eye-catching Modern Hex Wall Clock – a unique fusion of minimalist design and bold geometric detail. This downloadable 3D print file includes all the parts you need to print and assemble a functional and visually striking timepiece. (clock mechanism not included)
Build Video:https://youtu.be/1FBJorYDv8U

Design Features:
- Half-solid, half-honeycomb face:One side boasts a clean surface, while the other showcases a striking hexagonal lattice that gives the clock a bold, modern flair.

- Bold numbers (3, 6, 9, 12):*Elegantly styled and raised for a 3D effect, these numerals provide clear readability while adding to the clock’s decorative appeal.


Print & Assembly Info:
- Includes two variations to accommodate different clock mechanisms:
  - For 22 mm clock shaft
  - For 13 mm clock shaft
- Designed to be printed in multiple parts for easy color changes.
- Standard quartz clock mechanism compatible.
- Recommended materials: PLA or PETG.
- No supports required for most parts.

Dimensions:
Diameter: ~25 cm (10 inches)

Customization Tips:
Personalise the color scheme to match your décor or branding.

Perfect for makers looking to add a functional centerpiece to their home, office, or workshop walls. Download, print, and turn time into a statement – with both 13 mm and 22 mm shaft options included for your convenience.

Where I bought my clock mechanism:
https://www.amazon.co.uk/dp/B08Q45GW2Z?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1


The Clock

ALL PARTS The Clock.stl

A clock that runs by balancing marbles on a teeter totter!  Once every ten minutes, the top seesaw tips, dropping a ball onto the the 10 minutes track.  Every hour, the 10 minutes track tips, dropping a ball onto the Hour track, and every 12 hours, all the tracks tip, and the clock starts from 1.

I have included the step file to help you with assembly!  Feel free to make mods at your pleasure, however note the files are for personal use only.

This video shows the whole assembly process:

https://youtu.be/GmLEBhJY5ks

The STL File:

Prints on all standard 3d printers, requires the following additional parts:

11 3x10x4 bearings: https://geni.us/ytgU1tC
M3 Screw Kit https://geni.us/CnX30
32 0.5in ball bearings: https://geni.us/uLEbw
Nema 17 Motor https://geni.us/IbL6D0
1 GT2 Pulley https://geni.us/l3MG
You will also need a way to drive the Stepper Motor:

I recommend this board: https://geni.us/2sH7WYY
Real Time Module (Optional): https://geni.us/rtKYLJT
(Here is a really good tutorial for driving clocks with a stepper motor: https://www.youtube.com/watch?v=PR4PXR7RXEY&t=253s)

Recommended print settings:

Layer Height: 0.2mm

Nozzle: 0.4mm

Infill: 15-18%

Can print on any standard sized printer.

**All the files have been pre-oriented to save you some set up time! All you need to do is drop the parts into your slicer and hit print!

The Tipping Marble Clock

Tipping Clock Full Assembly.STEP

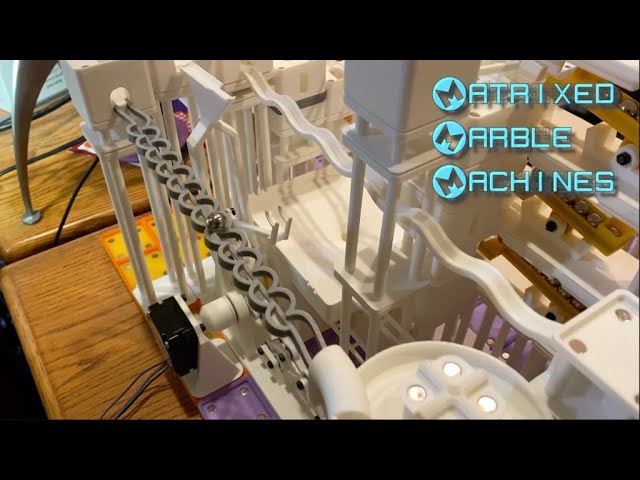

This is a pack for Matrixed Marble Machines that adds models and instructions for building three counter modules that can be used to turn your machine into a rolling ball clock. There are models in this pack which can be used to count minutes, tens of minutes, and hours.
Additional materials required to build this model include neodymium magnets, bearings and M3 hardware.
Consult included documentation for an exact bill of materials.

This pack is also part of the [Clock Starter Pack](https://thangs.com/designer/HFoG/collection/Matrixed%20Marble%20Machines%20Clock%20Starter%20Pack-31422).

Clock Pack

minutes tray.stl

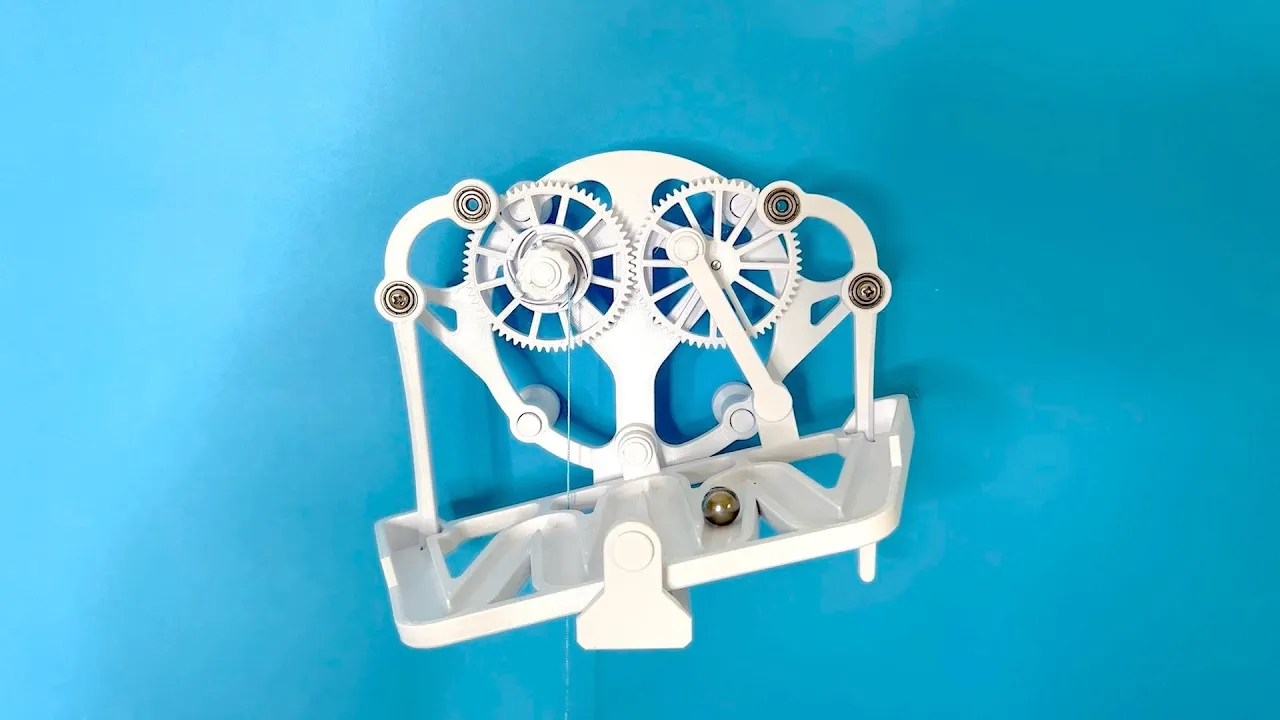

This is one of my all time favourites- instead of a pendulum, this escapement uses a ball bearing rolling along a track to keep time.  At the end of the track, the escapement hits a trigger which causes the track to slant the other way, starting the cycle again.

The video below shows how easily this mechanism can be assembled!

**The STL File:**

Prints on all standard 3d printers without supports, requires the following additional parts to assemble:

- 4 M4x12| 2 M4x20 Screws (https://amzn.to/3zgQb8f)
- 8 M4 Washers (https://amzn.to/3SApQsQ)
- 6 624Z 13mm OD/4mm ID Bearings (Like these https://amzn.to/3DtUUpH)
- 1mm Nylon String or Fishing Line (I used string from this set https://amzn.to/3DtUUpH)
- 7 Ball Bearings (https://amzn.to/3stFWKd)

Recommended print settings:

Layer Height: 0.2mm
Nozzle: 0.4mm
Infill: 15-18%
Total Filament Required: ~200g
Minimum Build Plate Required: 205x205mm

**All the files have been pre-oriented to save you some set up time! All you need to do is drop the parts into your slicer and hit print!

The Rolling Ball Escapement

Small Parts - 5.5h - 70g.stl
