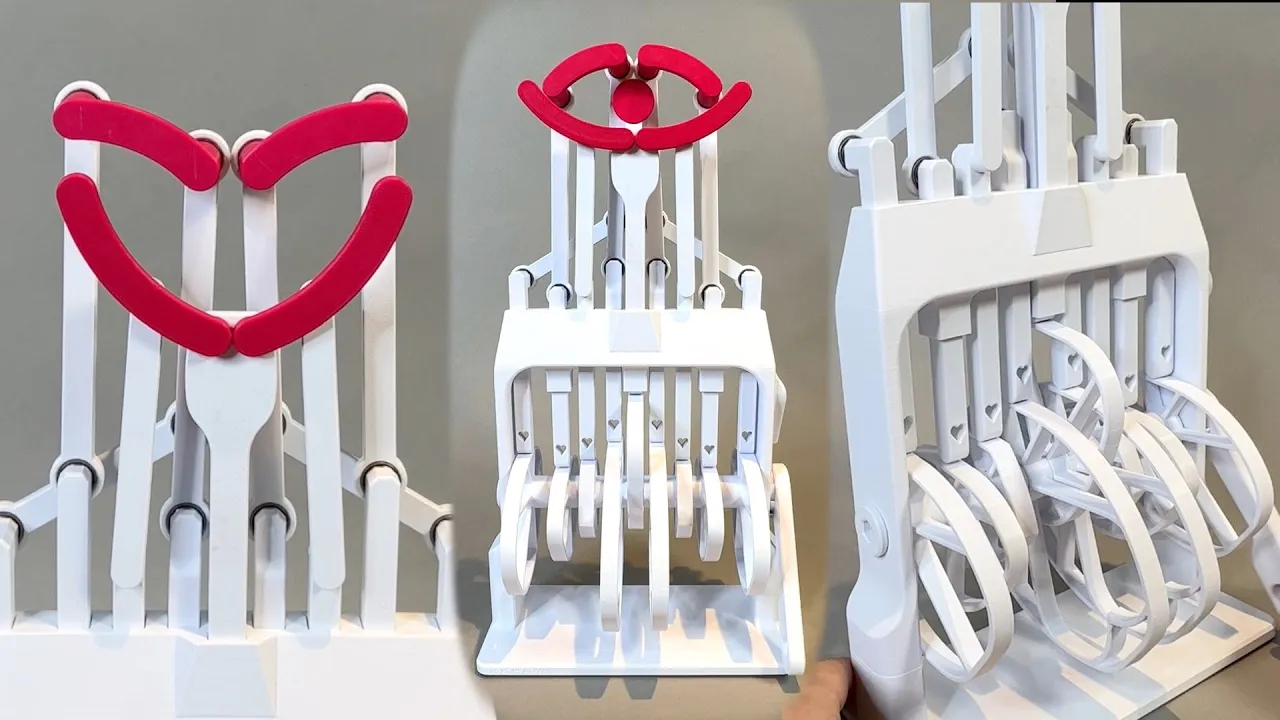

This is a cam driven kinetic sculpture that reveals a message through an intricate mechanical motion. The curved segments are carefully positioned using the specifically design geometry of the cams.  With 3 different symbols based on 3 different cam and follower positions, a beautiful message is revealed.

Made almost fully using 3D printed parts, along with some bearings and screws, this whole sculpture can be assembled in just minutes and can bring a serious wow factor to any birthday, valentines day, anniversary, or any other occasion where it's appropriate to share the simple phrase 'Eye Love U'

The video below that shows how easily this mechanism can be assembled!

**The STL File:**

Prints on all standard 3d printers without supports, requires the following additional parts to assemble:
- 12 M4x12 Screw (I used https://amzn.to/3Cf7dpp)
- 12 M4 Washers (These are the ones https://amzn.to/3Sh129Z)
- 12 624Z 13mm OD/4mm ID Bearings (These work great https://amzn.to/40Ps10M)

Recommended print settings:

Layer Height: 0.2mm
Nozzle: 0.4mm
Infill: 15-18%
Total Filament Required: ~600g

Minimum Build Plate Required: 205x205mm

**All the files have been pre-oriented to save you some set up time! All you need to do is drop the parts into your slicer and hit print!

Eye Heart You Cam Driven Sculpture

Build 1 - 21h - 300g (Base Components).stl
