This is a 3D-Printable model kit of the Red 3 Hero X-Wing model in 1/24 studio scale.

Designed with meticulous attention to detail, the use of the latest technologies like photogrammetry and with the originally used kit parts in hand, every curve, every panel line and every detail has been faithfully recreated to be as accurate as possible to the Red 3 Hero model, that was used for filming in the first STAR WARS movie.

With this STL set you can build your own studio-model-accurate replica of Biggs Darklighters Red 3 X-Wing.
But you can of course paint it in any desired color scheme and call sign you want. The included templets for the call sign markings will help you with that.

The last eight pictures show the main differences between Red 3 and Red 5.

May the force be with you!


**Features**
- 1/24 studio scale (studio scale = the size they used for the filming miniature)
- Articulated S-foils.
- Recesses for magnets in the wing mechanism to easily install the wing covers.
The magnets also make closing the wings more tactile and help keep the wings in horizontal position.
Recesses for magnets in the wing tips to help keep the wings closed.
- Articulated targeting computer.
- Astromech droid with turnable head (R2, R4 and R5)
- 3 Pilots
   - Live Action Pilot
   - Live Action Pilot with raised hand
   - ILM-Style Pilot
- 2 Cockpits
   - Live Action Cockpit
   - ILM-Style Cockpit
- The Live Action Cockpit has 0,6mm holes for fiber optics
- Cable routing for engine lighting integrated in the wings
- The finished model can be mounted on a threaded stand
- 3D-Printable templates to paint Call Sign Markings (Red3 and generic 1-12) included
- Optional Parts for CNC to make out of metal


**Data**
Length: 560 mm / 22 in
Width: 460 mm / 18 in
Hight (with S-foils locked in attack position): 190 mm / 7.5 in
74 STL-files for 3D printing (+ some Alternative Parts)


**Info**
You purchase digital STL-files for 3D printing!
All files are developed for resin printing.
All files are tested, successfully resin printed and assembled.
Recommended printer build volume for the native scale: 192x120x250 mm (WxDxH)
(Min. required printer build volume: 192 x 120 x 200 mm (WxDxH))

Print the wings and the fuselage with engineering resin (or similar that has little to no flex) to prevent any sagging. Don’t use an ABS-like resin.
Cure the wings and the fuselage very thoroughly immediately after printing for at least 20-30 minutes (washed of course).

My resin recommendation: https://amzn.to/454ywQd


**Join the NerdMaker Community**
[YouTube](https://www.youtube.com/@DominicSchwarz?sub_confirmation=1)
[Discord ](https://discord.gg/9jppu3AxJK)
[Instagram ](https://www.instagram.com/nerd_maker_engineer)
[Facebook ](https://www.facebook.com/nerdmakerengineer)


**License**
A Commercial License, to sell 3D-Prints of my Models, is available here:
[Patreon ](https://www.patreon.com/NerdMaker)

Model-X MK II 1/24 Studio Scale Red 3

Droid Strip.stl

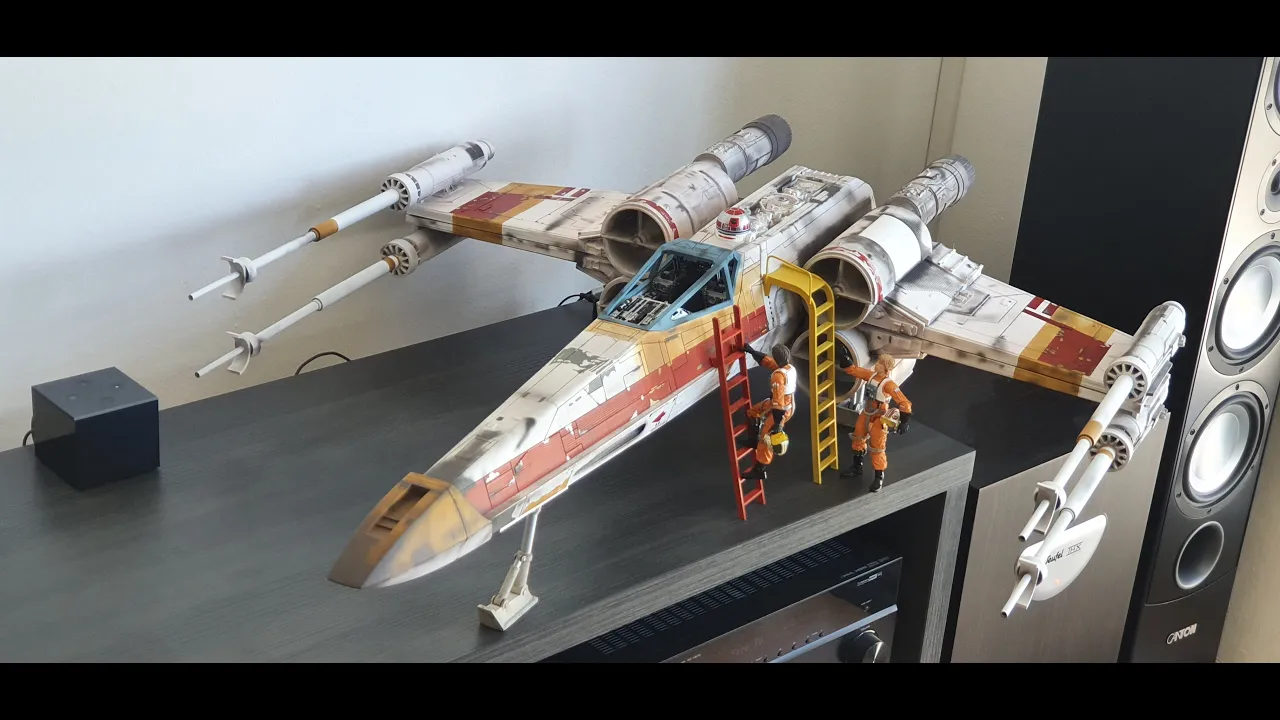

This is a 3D printable model kit of the famous Incom T-65 X-Wing, used by the Rebellion in several Battels to fight the Empire.
The scale of the model is 1/12 to fit the pilot from the Hasbro 6 Inch Black Series (not included).
STL-files for the astromech droid are included. If you choose to use a R2 unit from Hasbro, it needs to be cut to fit into the slot.
The 3D model is highly detailed to replicate the studio model used for filming in the original STAR WARS Trilogy.
It is designed like a giant model kit. You print it piece by piece and then assemble it.
The STL-files have a high resolution to achieve great print results.

These three pilots are available from Hasbro (you can repaint the helmet to be any other pilot, though):
Luke Skywalker: https://amzn.to/3EYBPPy *
Wedge Antilles: https://amzn.to/3X8spr2 *
Antoc Merrick: https://amzn.to/3QtBS8A *


**Features**
- Articulated S-foils.
- Articulated targeting computer.
- Astromech droid with turnable head (R2, R4 and R5); R2 can be lit.
- Alternative parts for the different studio scale models are included.
- The canopy can be displayed closed and open.
- The finished model can be mounted on a threaded stand or it can be displayed landed with the included landing gear.
- The kit includes two ladders, if you want to display the X-Wing in a hangar scene. (One for the pilot and one for the hangar staff.)
- Cable routing for lighting is possible.


**Data**
Length: 1060mm
Width: 870mm
Hight (with S-foils locked in attack position): 335mm
The fully assembled model weighs around 5kg (depending on your infill ratio).
166 STL-files for 3D printing
1 STL-file complete X-Wing, for viewing purposes only


**Info**
Recommended printer build volume for the native scale: 300x300x265 mm (WxDxH)
The model kit was designed that all details are visible when printed with a 0.4mm nozzle. If you scale the model down you should consider a thinner nozzle.
The parts are not oriented in the ideal printing orientation by default. Orient them in a way that fits best for your printer. Choose suited support structures, if needed.
The download includes a PDF with further information and instructions.


**Join the NerdMaker Community**
[YouTube](https://www.youtube.com/@DominicSchwarz?sub_confirmation=1)
[Discord ](https://discord.gg/9jppu3AxJK)
[Instagram ](https://www.instagram.com/nerd_maker_engineer)
[Facebook ](https://www.facebook.com/nerdmakerengineer)

**License**
A Commercial License, to sell 3D-Prints of my Models, is available here:
[Patreon](https://www.patreon.com/NerdMaker)



For some video impressions visit:
https://youtu.be/SUxNJJH4eOM
https://youtu.be/L6XjmnLeqzE


May the force be with you!


(*) Alle amzn.to Links sind Amazon Affiliate Links. Werden Käufe über diese Links getätigt, erhalte ich eine kleine Provision von Amazon. Der Preis für dich ändert sich dadurch natürlich nicht.
All amzn.to links are Amazon Affiliate links. If purchases are made via these links, I receive a small commission from Amazon. Of course, this does not change the price for you.

Model-X MK I (1/12 Scale)

DROID_STRIP.stl

This is a 3D printable Diorama of an X-Wing Cockpit in 1/6 scale for the Hot Toys / Sideshow figures. Since not everyone has the space to display a full 1/6 scale X-Wing in their homes, I decided to create this cutout diorama. It will fit nicely on your shelf :)

The flight stick, the targeting computer and the canopy are articulated. And not only is the canopy articulated, it also has a fully working mechanism (that can also be motorized, if wanted).
You can choose to either use a Hot Toys, Sideshow or Sphero R2-D2 or use the included STL files to 3D print R2 or R5 (It is a half R-Unit as in the X-Wing studio model).
R2’s head can also be turned.
The cockpit can be lit with 2 mm fiber optics.
R2 can be lit with 0.5 and 7 mm fiber optics.

**Data**
Length: 687 mm
Width: 353 mm (without ladders)
Height: 434 mm (with R2)


**Info**
Min printer build volume: 250 x 250 x 250 mm (WxDxH)
3MF Bambu Studio file included

**Join the NerdMaker Community**
[YouTube](https://www.youtube.com/@DominicSchwarz?sub_confirmation=1)
[Twitch](https://www.twitch.tv/nerdmaker86)
[Discord ](https://discord.gg/9jppu3AxJK)
[Instagram ](https://www.instagram.com/nerd_maker_engineer)
[Facebook ](https://www.facebook.com/nerdmakerengineer)


**License**
A Commercial License, to sell 3D-Prints of my Models, is available here:
[Patreon ](https://www.patreon.com/NerdMaker)
