with built in spinner.  No dice required. A fun additon to any game night! Easy assembly with just magnets and  glue. Screws are optional. Requires supports on the top piece only around the base. Color change files for the numbered spinner also included.
You will need 36 Magnet 8x2mm Rare Earth Magnets Neodymium Magnets for Crafts https://www.amazon.com/dp/B0CCXJTTFM?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
Assembly video included.

12oz D20 Tree Of Life Can Cozy with AMS color files

TOP fixed.stl

I recently released my ‘Mega’ Magnetic Tile Haunted House Collection but have been wanting to make a playful, scaled down version - so here it is 👻 This is my ‘Mini’ Magnetic Tile Haunted House that is ¼ the scale of my original. For extra fun, many of the windows have 2-sided window panes that rotate, there's a skeleton that greets you behind a hinged front door, tombstones to decorate the front yard and all the spiders, cats, rats, ghosts and skeletons you can handle 🕷🎃🐈‍⬛🐀👻 (These tiles are compatible with store bought magnetic tiles just fyi:)

****3D Print Settings****
PLA Filament
Layer height 0.2mm (for some of the more detailed pieces - like the rat windows and tombstones you can use a 0.16 layer height if preferred)
Infill 15%
Brim may be needed on larger pieces (like the 150x75 walls) if you notice any warping

****Neodymium magnets needed: 20x5x2 ****

- I specifically designed all these pieces to work with this size magnet

- Here is a link to these magnets on Amazon: ****https://amzn.to/3Nibhd3****

- Magnetic build plate highly recommended but not absolutely necessary.


****Printing Instructions for Inserting Magnets and Filament Pieces:****

- Every piece in this collection (except for the Porch Pillars and the Chimney Cap) need to be paused at layer 30 (layer height 4.8mm) to insert magnets.
- The Front Door piece and all the window panes that rotate also need cut pieces of filament placed in the ‘filament chamber’ areas (see photos and video).
- It helps to straighten the filament pieces that will be inserted into these pieces.  I have designed a separate 3D printed device to do that (I call it the ‘filament straightening block’) and will link a video below.

- After the magnets/filament are inserted, resume printing

****I have also included a 3mf print profile with the following print plates:****
Print Plate #1 Mini HH_75X75_Front Door: 4 colors, pause at layer 30, cut and insert filament pieces to fit into filament chamber areas
Print Plate #2 Mini HH_75x75_Curved Cat & Ghost Window: 4 colors, pause at layer 30; cut and insert filament pieces to fit into filament chamber areas
Print Plate #3 Mini HH_75x75_Curved Spider & Ghost Window: 4 colors, pause at layer 30; cut and insert filament pieces to fit into filament chamber areas
Print Plate #4 Mini HH_75x75_Curved (Plain) Window: 3 colors, pause at layer 30
Print Plate #5 Mini HH_75x75_Rectangle Spider & Ghost Window: 4 colors, pause at layer 30; cut and insert filament pieces to fit into filament chamber areas
Print Plate #6 Mini HH_75x75_Rectangle Pumpkin & Ghost Window: ****5 colors!!****, pause at layer 30. Cut and insert filament pieces to fit into filament chamber areas.
This is the only piece with 5 colors. You will notice I colorized both the ghost and the pumpkin white.  After the white is done printing the ghost you will need to change out the white filament for orange before it starts printing the pumpkin.  Pause the print if needed to do this (on my Bambu printer I can do this while printing).
Print Plate #7 Mini HH_75x75_Rectangle (Plain) Window: 3 colors, pause at layer 30
Print Plate #8 Mini HH_75x37.5_Curved (Plain) Window: 3 colors, pause at layer 30
Print Plate #9 Mini HH_75x37.5_Curved Rat Window:3 colors, pause at layer 30; cut and insert filament pieces to fit into filament chamber areas
Print Plate #10 Mini HH_75x37.5_Plain Wall Panel: 1 color, pause at layer 30
Print Plate #11 Mini HH_150x75_Curved Skeleton & Ghost Window: 4 colors, pause at layer 30; cut and insert filament pieces to fit into filament chamber areas
Print Plate #12 Mini HH_150x75_Curved (Plain) Window: 3 colors, pause at layer 30
Print Plate #13 Mini HH_150x75_Tree Wall: 2 colors, pause at layer 30
Print Plate #14 Mini HH_75x75_Floor Piece: 1 color, pause at layer 30
Print Plate #15 Mini HH_75x37.5_Floor Piece: 1 color, pause at layer 30
Print Plate #16a Mini HH Front Porch: 1 color, pause at layer 30
Print Plate #16b Mini HH Porch Pillars: 1 color, pause at layer 30
Print Plate #17a Mini HH Tombstone Noah&RIP: 2 colors, pause at layer 30
Print Plate #17b Mini HH Tombstone Ben&Waldo: 2 colors, pause at layer 30
Print Plate #18 Mini HH Front Door Awning: 1 color, pause at layer 30
Print Plate #19 Mini HH_75x85_roof: 1 color, pause at layer 30
Print Plate #20 Mini HH_90x85_roof (no chimney): 1 color, pause at layer 30
Print Plate #21a Mini HH_90x85_roof with chimney: 1 color, pause at layer 30
Print Plate #21b Mini HH Chimney Cap: 1 color, pause at layer 30

Have fun printing!

Mini Magnetic Tile Haunted House Collection

(21a) Mini HH_90x85_roof with chimney.stl

Revolver cylinder fidget spinner toy with bullets that magnetically and satisfyingly pop in and out. Spinner, loader, toggler and clicker in one stylish package!

&nbsp;

---
**Printing tips:**
The parts are already oriented optimally. No supports needed for any parts!

If you're using Orca Slicer or Bambu Studio, a handy project file is included that has my print settings and painted parts ready to go!

&nbsp;

---
**Assembly:**
You need 6x2mm magnets for the cylinder, and either 6x 6x3mm or 12x 6x2mm round magnets for the bullets. The bullet tip has enough room for one 6x3mm or two 6x2mm magnets.

See the included assembly video!

&nbsp;

---

_**If you enjoy my designs and want to sell prints of them, I have membership tiers with commercial license available! Also if you want to support me while getting access to all my premium designs, I have a cheap personal tier. [Please check out my membership plans!](https://than.gs/u/803093?plans=true&affiliateCode=Jaatinen3D) ❤**_

Revolver Cylinder Fidget Spinner Toy

Cylinder.stl

Dragon 12oz  can cozy with built in spinner.  No dice required. A fun additon to any game night! Easy assembly with just magnets and  glue. Screws are optional. Requires supports on the top piece only around the base. Color change files for the numbered spinner also included.
You will need 36 Magnet 8x2mm Rare Earth Magnets Neodymium Magnets for Crafts https://www.amazon.com/dp/B0CCXJTTFM?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
Assembly video included.

12 oz Dragon D20 magnet spinner can cozy

Top.stl

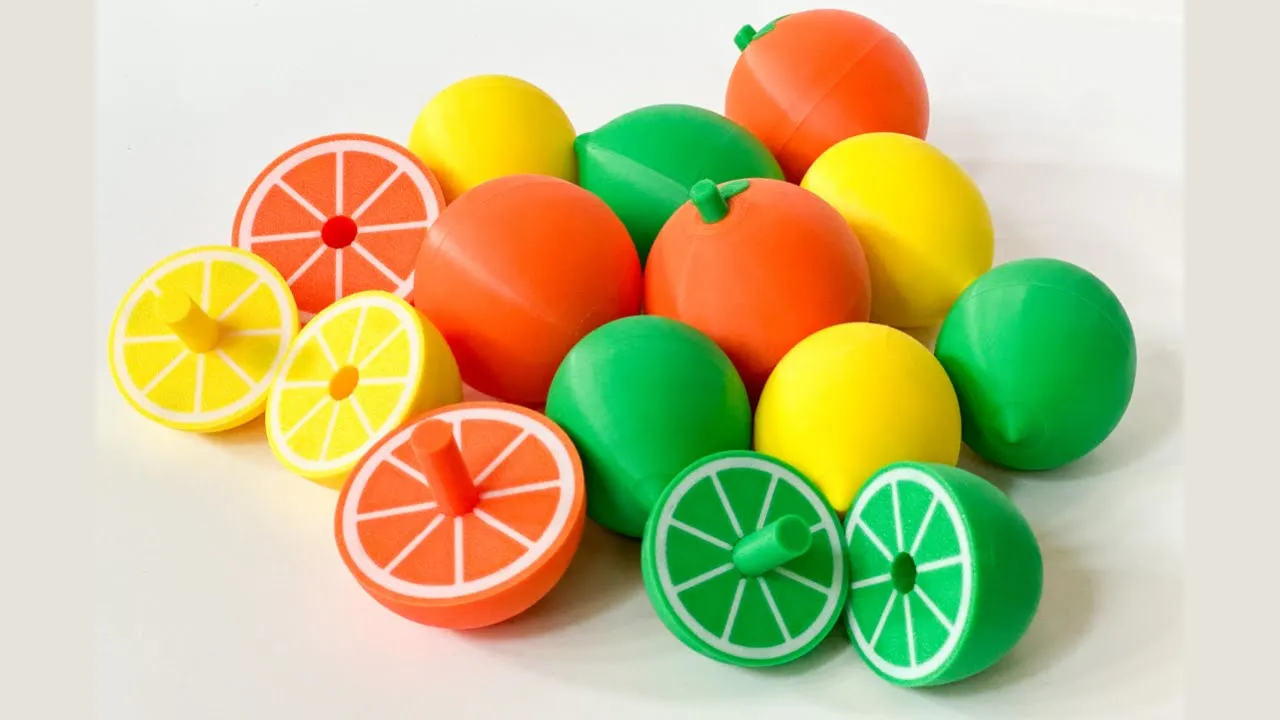

You get twice the fun with these two-in-one fidgets: a rotating magnetic “ratchet” fidget and a spinning top 🙌🏼

****Important:**** You will need (8) 6mm x 3mm neodymium magnets for each fidget (4 magnets for each half of a fidget)

Here is an Amazon link to the magnets and filament I used: https://amzn.to/3XA7HkC

****3D Print Settings for the Lemon & Lime Fidgets:****
0.2mm Layer Height
25% Infill
Outer Wall Speed 100mm/s
No supports needed
Outer brim on ‘peg’ piece

I have also included a 3MF file with the following print profiles:
Print plate #1 (lemon fidget): 2 colors; pause added at layer 22 (layer height 4.40mm) to insert magnets (make sure to orientate the magnets correctly - see photo)

Print plate #2 (lime fidget): 2 colors; pause added at layer 22 (layer height 4.40mm) to insert magnets (make sure to orientate the magnets correctly - see photo)

****3D Print Settings for the Orange Fidget:****
0.2mm Layer Height
25% Infill
Outer Wall Speed 100mm/s
No supports needed
Outer brim on ‘peg’ piece

I have also included a 3MF file with the following print profiles:
Print plate #1 (Orange bottom piece): 2 colors; pause added at layer 22 (layer height 4.40mm) to insert magnets (make sure to orientate the magnets correctly - see photo); variable layer height adjustment added at top of this piece (to help fidget spin better)

Print plate #2 (Orange top piece): 3 colors; pause added at layer 22 (layer height 4.40mm) to insert magnets (make sure to orientate the magnets correctly - see photo)

Print plate #3: peg piece, 1 color

To assemble insert peg into bottom of each fidget (this will be a snug fit). The top piece will fit easily over the peg so it can be removed on and off.

Have fun printing! 🍋🍊
