**This model features the following parts:**
1. Bottom Frame _(PET-CF Recommended)_
     - 20x20 stack mounting hole available
     - 30x30 stack mounting hole available (_you will need to use different stack components from the ones listed below_)
2. Upper Saddle _(PET-CF Recommended)_
3. DJI O3 Camera Mount _(TPU Recommended)_
4. DJI O3 VTX Mount _(TPU Recommended)_
5. Foxeer ELRS LNA RX Mount _(TPU Recommended)_
- 20x20 & 30x30 stack mounting hole available
6. Motor Skid _(TPU Recommended)_
7. Motor Skid - Mirrored _(TPU Recommended)_
8. Action Camera Spacer _(TPU Recommended)_
- Place behind Action Camera when no filter is used


**Other non-3D printed components include:**
- Flight Controller - Mamba 4th Gen MK4 F722 Mini
- Electronic Speed Controller - FOXEER REAPER SLIM 60A ESC
- Receiver - Foxeer ELRS 2.4G Receiver LNA V3.2.1 with T-Antenna
- Battery - Tattu R-Line 6S - 1200 mAh Lipo Battery XT60
- Motor - 4 x T Motor F60 PRO IV 2.0 1950 kv
- Propellor - 4 x HQ Prop Ethix S5
- FPV Camera - Dji O3 with FlyFishRC 40mm Stubby Antenna
- GPS - MATEKSYS SAM-M8Q
- Action Camera - Dji Action 2 with ND Filter
- M3 Screws _(see video)_
- M2 Screws & Hex Nut _(see video)_
- M2 Nylon Lock Nut _(see video)_
- M6 Nylon Lock Nut _(see video)_
- Standoff - 25mm M3 Smooth Hex
- Racewire - 4 x RGB RACELITEWIRE

**Disclaimer:**
_This product is designed for hobby and/or commercial use only. Users are responsible for ensuring compliance with all applicable local laws, regulations, and guidelines before using this product. Any misuse, improper handling, or use of this product in violation of local regulations is solely the responsibility of the user. The manufacturer and seller disclaim any liability for damages, injuries, or legal consequences resulting from improper use or non-compliance. By purchasing and using this product, you acknowledge and agree to these terms._

5-Inch FPV Drone

Bottom Frame.STL

Bottom Frame (30 x 30 Stack M3 Holes).STL

Bottom Frame (30 x 30 Stack M2 Holes).STL

Foxeer ELRS Mount (30 x 30 - M2 Holes) with DJI O3 Cable Guide.STL

Foxeer ELRS Mount (30 x 30 - M3 Holes) with DJI O3 Cable Guide.STL

Bottom Frame (20 x 20 Stack - M2 Holes - 19 x 16 Motor Mounting).STL

Bottom Frame (30 x 30 Stack M2 Holes - 19 x 16 Motor Mounting).STL

Bottom Frame (30 x 30 Stack M3 Holes - 19 x 16 Motor Mounting).STL

Action Camera Spacer (no filter).STL

Bottom Frame (30.5 x 30.5 Stack M3 Holes with 14mm Capacitor).STL

**Note:** Compatible Stack Mounting for 20mm x 20mm

**This model features the following parts:**
1. Main Frame _(PET-CF or PA-CF Recommended)_
2. Saddle _(PET-CF or PA-CF Recommended)_
3. DJI O4 Pro Camera Mount _(TPU Recommended)_
4. DJI O4 Pro VTX Mount _(TPU Recommended)_
5. Foxeer ELRS LNA RX Mount _(TPU Recommended)
6. Motor Skid _(TPU Recommended)_
7. Motor Skid - Mirrored _(TPU Recommended)_
9. Battery & GPS Mount _(TPU Recommended)_
10. Propellor Skid _(TPU Recommended)_
11. Landing Skid _(TPU Recommended)_

**Other non-3D printed components include:**
- Flight Controller - Mamba 4th Gen MK4 F722 Mini
- Electronic Speed Controller - Diatone Mamba F40 128K BL32 20x20 ESC 40A
- Receiver - Foxeer ELRS 2.4G RX LNA w/ T-Antenna
- Battery - Tattu R-Line 6S - 650 mAh Lipo Battery XT30
- Motor - 4 x ECOII 2004-2000KV Motor
- Propellor - 4 x 4023 - Triblade Gemfan Propellor
- FPV Camera - Dji O4 air unit pro
- GPS - MATEKSYS SAM-M8Q
- M3 Screws _(see video)_
- M2 Screws & Hex Nut _(see video)_
- M2 Nylon Lock Nut _(see video)_
- Standoff - 25mm M3 Smooth Hex
- Racewire - 4 x RGB RACELITEWIRE

_**Disclaimer:**
This product is designed for hobby and/or commercial use only. Users are responsible for ensuring compliance with all applicable local laws, regulations, and guidelines before using this product. Any misuse, improper handling, or use of this product in violation of local regulations is solely the responsibility of the user. The manufacturer and seller disclaim any liability for damages, injuries, or legal consequences resulting from improper use or non-compliance. By purchasing and using this product, you acknowledge and agree to these terms._

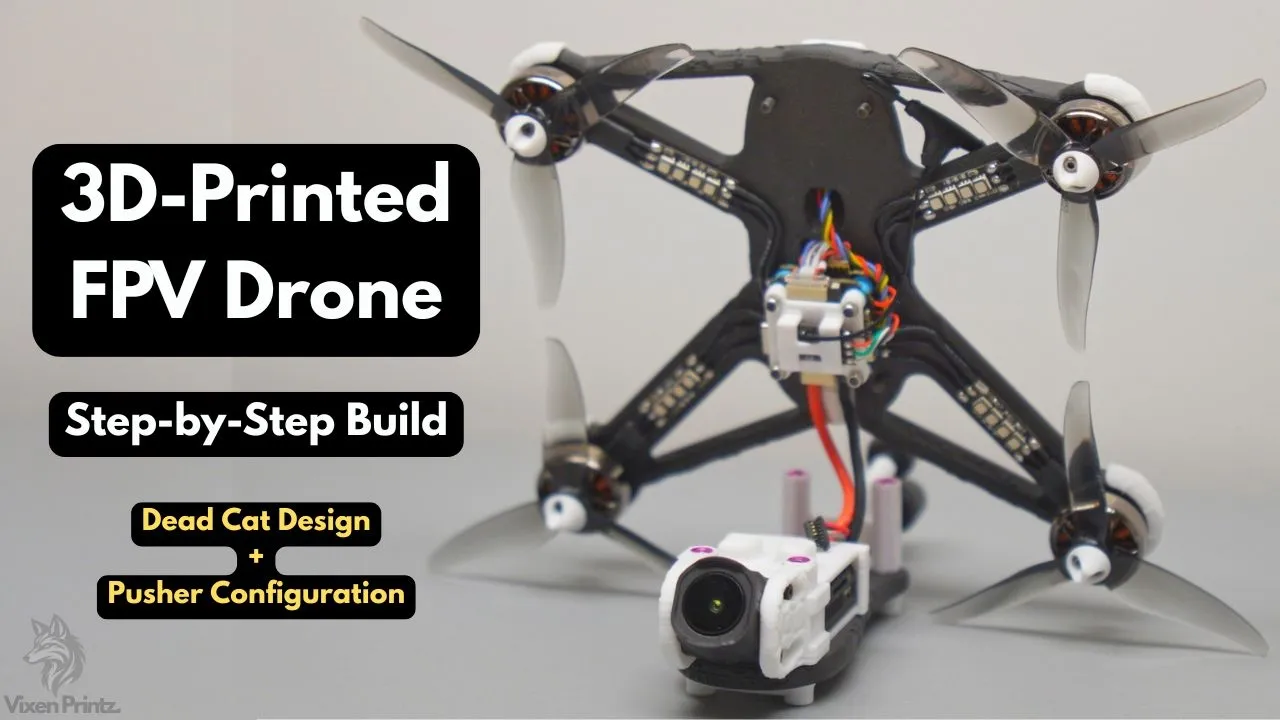

4-Inch Dead Pushy Cat Drone (Dead Cat Design + Pusher Config)

Main Frame.STL

**This model features the following parts:**
1. DJI O4 FPV Camera Mount _(TPU Recommended)_
2. DJI O4 VTX Mount _(TPU Recommended)_
3. Upper Saddle (without Action Camera) _(PET-CF Recommended)_

**Parts compatible with the 5-Inch & 3.5-Inch Drone Frames**

**Disclaimer:**
_This product is designed for hobby and/or commercial use only. Users are responsible for ensuring compliance with all applicable local laws, regulations, and guidelines before using this product. Any misuse, improper handling, or use of this product in violation of local regulations is solely the responsibility of the user. The manufacturer and seller disclaim any liability for damages, injuries, or legal consequences resulting from improper use or non-compliance. By purchasing and using this product, you acknowledge and agree to these terms._

DJI O4 Camera & VTX Mount (includes redesigned Upper Saddle)

DJI O4 Camera Mount.STL

Upper Saddle - No Action Camera.STL
