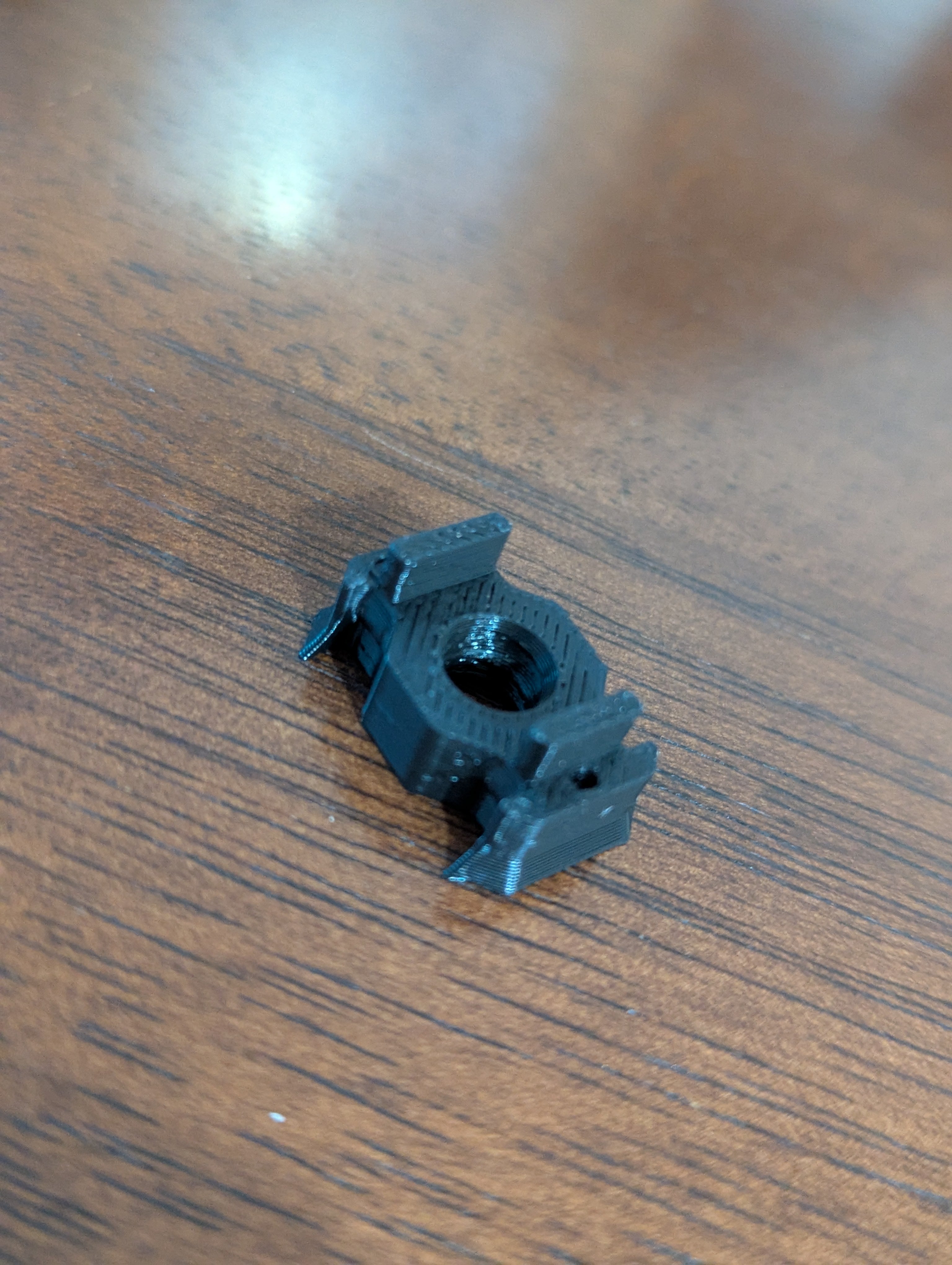

Flush Snap (DS Part B) For 8 mm - Offset Snap
130 downloads · 1 year ago · This is a remix of the Multiboard Flush Snap (DS Part B). It has two main differences:
1. It has st
This is a remix of the Multiboard Flush Snap (DS Part B). It has two main differences:
- It has standoffs on the back so it works better with the "8 mm - Offset Snap (DS Part A)" (linked below). The original part would sink down into the Part A snap and not remain flush. This part positively stops when flush.
- It has a flared top. This takes up more area on the face of the Multiboard for a more flush feel.
No supports or brim needed, print with the flared end down, and the stadoffs facing up. Easy removal with one of the Multiboard small thread bolts and some wiggling.
STL and STEP files provided.
Link to 8 mm - Offset Snap (DS Part A): [https://thangs.com/designer/Multiboard/3d-model/8%20mm%20-%20Offset%20Snap%20%28DS%20Part%20A%29-974340]
