Multiboard Aerosol Can Holder Pegboard Attachment

This model is restricted by licensing terms.

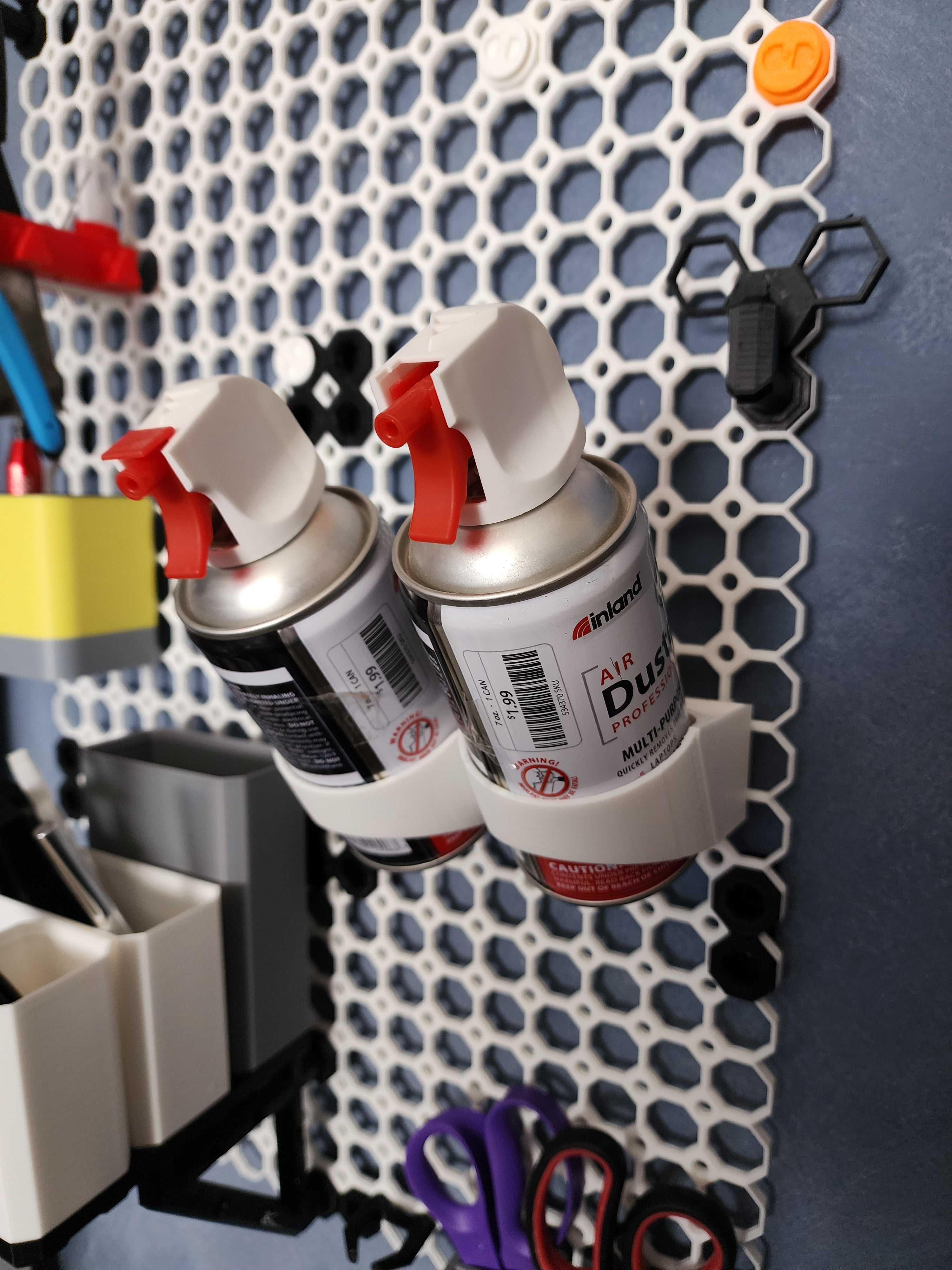

This is designed to hold an aerosol can, canned air, etc. on your multiboard. It is attached via the overly strong pegboard clips and holds the cans at an angle. Two different models are provided, one with built-in support and one without if you'd like to add your own. It should be printed on the side to provide the most strength for the pegboard clips. The model is not oriented this way. The pre-supported model may have the slightest of sagging at the top of the cylinder but will print successfully on a Creality K1. To remove the supports around the pegs, use your side cutters to gently separate the supports from the pegs. It requires three horizontal pegboard spaces to clip in and is designed so you can butt them up horizontally to store multiple cans with no gaps in between (see pictures). Correct vertical spacing will have three open peg board holes between two of these holders. There is a small triangular hole in the model for any spray nozzles your can's may have. Interior diameter is ~66mm and fits most air cans and US spray cans. There is a .STEP file in the download.

Community Makes (2)

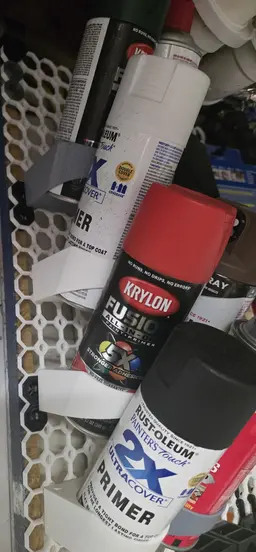

Printed with the print provided supports, and think I probably should have just used the Bambu supports. They were very difficult to get off. Otherwise, this is an amazing print, they look great, and they didn't warp like I expected when I printed.
Easy print, Came out great, works perfectly
Printed with the print provided supports, and think I probably should have just used the Bambu supports. They were very difficult to get off. Otherwise, this is an amazing print, they look great, and they didn't warp like I expected when I printed.
Easy print, Came out great, works perfectly


Community Makes (2)
Printed with the print provided supports, and think I probably should have just used the Bambu supports. They were very difficult to get off. Otherwise, this is an amazing print, they look great, and they didn't warp like I expected when I printed.
Easy print, Came out great, works perfectly
Printed with the print provided supports, and think I probably should have just used the Bambu supports. They were very difficult to get off. Otherwise, this is an amazing print, they look great, and they didn't warp like I expected when I printed.
Easy print, Came out great, works perfectly

Discussions
SD
Savi Dynamics
Printed with the print provided supports, and think I probably should have just used the Bambu supports. They were very difficult to get off. Otherwise, this is an amazing print, they look great, and they didn't warp like I expected when I printed.
Printed with the print provided supports, and think I probably should have just used the Bambu supports. They were very difficult to get off. Otherwise, this is an amazing print, they look great, and they didn't warp like I expected when I printed.  3d model
PrinterBambu Lab X1E
MaterialPLA
J
JazzaGold
Easy print, Came out great, works perfectly
Easy print, Came out great, works perfectly 3d model
PrinterOther
Printer modelCreality K2 Plus
MaterialPLA
Layer height0.2 mm
Infill density10 %
T

Question - What is the diameter of the spray can? :-)

NE
ne2000

approx 66mm

Hussien M
hussien.zmpp

you are awesome for giving a solidworks file dude!!

CJ M
cmcfalls2

Any chance you have a parametric Fusion360 file for this? I downloaded the fbx file but it's not parametric. I'm unable to edit the bottle/can diameter. I really like this design because it angles the cans outward. All the others I've found just stand up normally but I would much rather be able to edit yours to work for my multiboard.

Something like this perhaps? https://www.printables.com/model/613030/files

NE
ne2000

It is not parametric right now, what size do you need?

NE
ne2000

Sorry I wasn't notified you made this comment. I'll have to double check if I made this parametric or not. I think I did.
