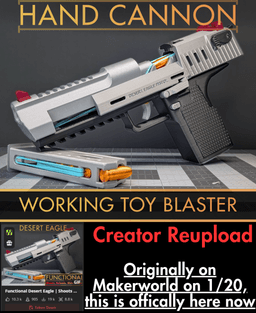

Hand Cannon | Working Toy Blaster

I am the original creator, this account is linked on my Makerworld Page

This model was originally uploaded to Makerworld under the exclusive model program, however it was removed, likely because I did not convey it was a toy enough. Now that the exclusive agreement is off the table, it's here now!


I have been demotivated from uploading this again in fear of another stupid overreaction, but I would like to thank all of those who messaged and supported me as a creator, and now I am willing to take on that risk.

Here's the old description with some modifications (like using the word “toy” everywhere) It is poorly formatted and is a block of text because this website's description writing is extremely limited and janky, I had to retype this whole description because Thangs deleted all of it when I saved it:


[ Assembly tutorial, More showcases, and rubber bad sizes below ]

I know I may be biased because I'm literally the creator of this thing, but I'm pretty confident that this is the best model I have ever printed. This Hand Cannon is a fully functional TOY replica of the real deal. It features TOY slide action loading, fake TOY bullet launching, TOY magazine feeding and reloading, a functional TOY trigger, a TOY slide stopper for style, and the ability to rack TOY bullets (which was definitely intentional while I was designing, you have to tilt the Hand Cannon to the side for it to work). This assembly requires 4 rubber bands that you can find around your house, but outside of that, it is 100% 3D printed.

The assembly requires no glue or screws, everything is snap/slide fit!


IMPORTANT FOR FUNCTIONALITY - - (Don't skim over, people miss this) Ensure you rub the TOY firing hammer back and forth, in order to remove friction and to make it fire stronger and more consistently Also do the same for the TOY magazine feeder, move the the TOY feeder back and forth until it moves smoothly and has no more heavy friction


PERFORMANCE:

TOY Muzzle Speed: 30 ft/s 20 mph 8.6 m/s 31 km/h

Range: Averaging different launch distances when holding the TOY launcher at eye level gives around: 5.0-5.7 Meters 16-18 Feet

Capacity: 7-8 FAKE Bullets


Rubber Bands Used: Just because I used these exact ones doesn't mean you have to -- in fact these were just lying around my house, so maybe yours could perform even better.

[Firing hammer and magazine feeder rubber band (Blue)] Height - 3mm Diameter - 50mm Two rubber bands used

[Trigger and slide rubber band (Purple)] Height - 1.5mm Diameter - 40mm Two rubber bands used


By downloading, printing, or utilizing this design, you agree to the following terms and conditions: I assume no liability or responsibility for any injury, damage, or loss resulting from the assembly, use, misuse of the toy. Users accept all risks associated with the design and release the creator and platform from any claims or liabilities arising.

Thank you to everyone that prints this project!!!
