Moto Guzzi V100 Clutch Retainer Tool

2 downloads · 1 month ago · This tool is an alternative to Moto Guzzi special tool 021058Y. It holds the clutch hub in place, al
This model is restricted by licensing terms.
View license.
Description

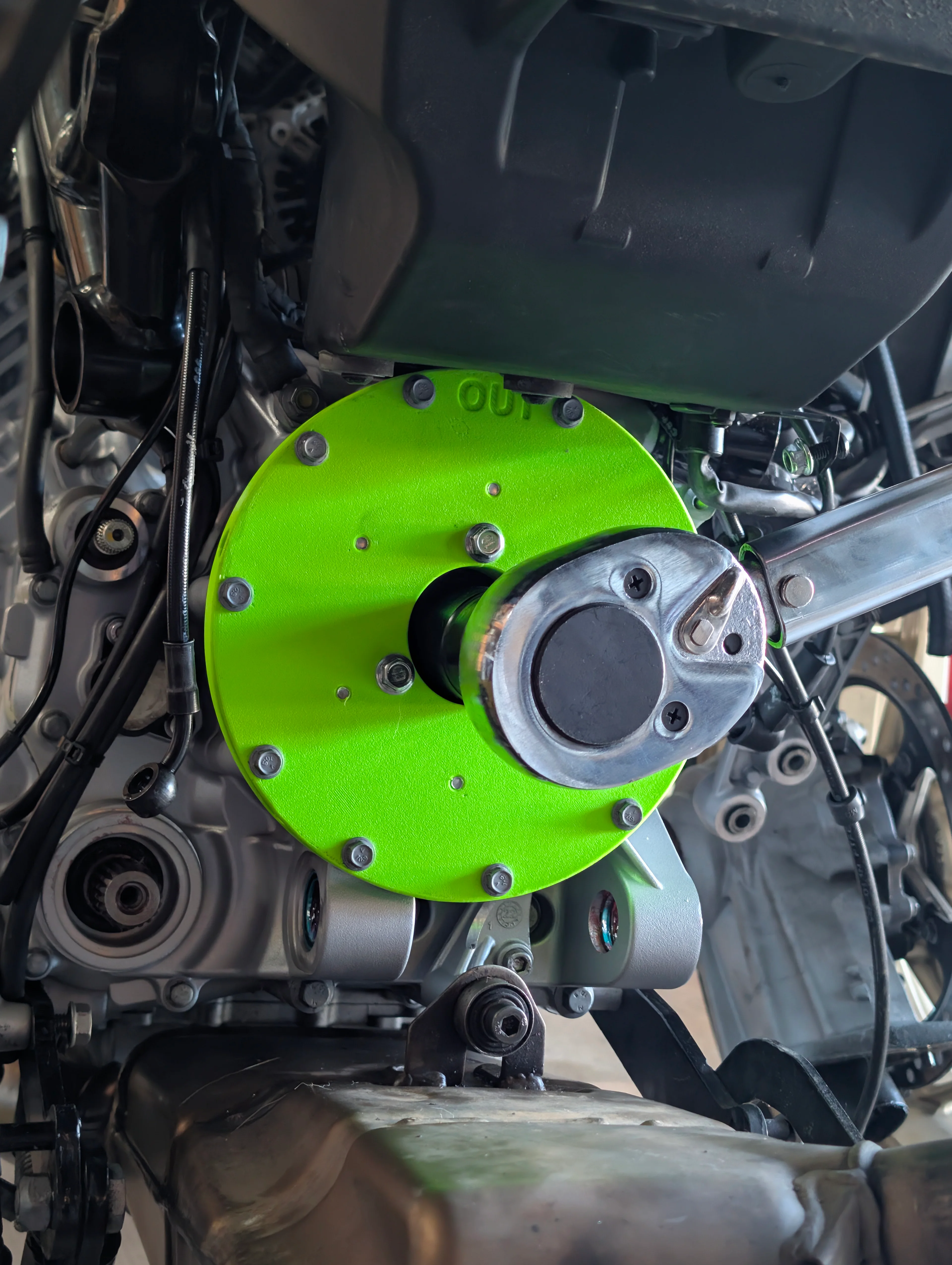

This tool is an alternative to Moto Guzzi special tool 021058Y. It holds the clutch hub in place, allowing the large nut to be tightened to spec.

Source is here: https://cad.onshape.com/documents/64bf41a104958c14035bf620/w/1531eaa7a61b8c205dda2066/e/b377400331c600c6ffbd03b1?renderMode=0&uiState=6a0126a25d40531686876868
