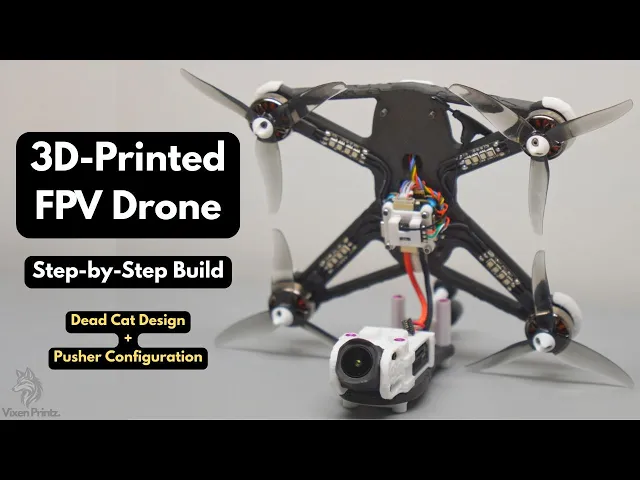

4-Inch Dead Pushy Cat Drone (Dead Cat Design + Pusher Config)

45 downloads · 9 months ago · **Note:** Compatible Stack Mounting for 20mm x 20mm **This model features the following parts:** 1.

Description

Note: Compatible Stack Mounting for 20mm x 20mm

This model features the following parts:

Main Frame (PET-CF or PA-CF Recommended)
Saddle (PET-CF or PA-CF Recommended)
DJI O4 Pro Camera Mount (TPU Recommended)
DJI O4 Pro VTX Mount (TPU Recommended)
Foxeer ELRS LNA RX Mount _(TPU Recommended)
Motor Skid (TPU Recommended)
Motor Skid - Mirrored (TPU Recommended)
Battery & GPS Mount (TPU Recommended)
Propellor Skid (TPU Recommended)
Landing Skid (TPU Recommended)

Other non-3D printed components include:

Flight Controller - Mamba 4th Gen MK4 F722 Mini
Electronic Speed Controller - Diatone Mamba F40 128K BL32 20x20 ESC 40A
Receiver - Foxeer ELRS 2.4G RX LNA w/ T-Antenna
Battery - Tattu R-Line 6S - 650 mAh Lipo Battery XT30
Motor - 4 x ECOII 2004-2000KV Motor
Propellor - 4 x 4023 - Triblade Gemfan Propellor
FPV Camera - Dji O4 air unit pro
GPS - MATEKSYS SAM-M8Q
M3 Screws (see video)
M2 Screws & Hex Nut (see video)
M2 Nylon Lock Nut (see video)
Standoff - 25mm M3 Smooth Hex
Racewire - 4 x RGB RACELITEWIRE

Disclaimer: This product is designed for hobby and/or commercial use only. Users are responsible for ensuring compliance with all applicable local laws, regulations, and guidelines before using this product. Any misuse, improper handling, or use of this product in violation of local regulations is solely the responsibility of the user. The manufacturer and seller disclaim any liability for damages, injuries, or legal consequences resulting from improper use or non-compliance. By purchasing and using this product, you acknowledge and agree to these terms.

Tags:

Discussions

labalahumana98057 months ago

hey brother, i messaged you on instagram, because im trying to do this build and the camera of your choise is not available anywhere or overpriced like $400 so i would like to know if you have any other you know of that i can use. its my first build so wouldnt exactly know how to look for another one.
