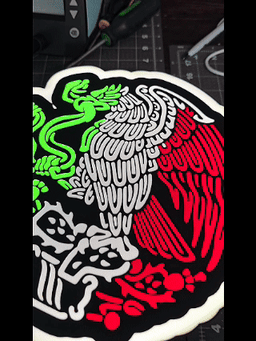

🇲🇽 Mexico Eagle LED Light Box – Tricolor Wall Art

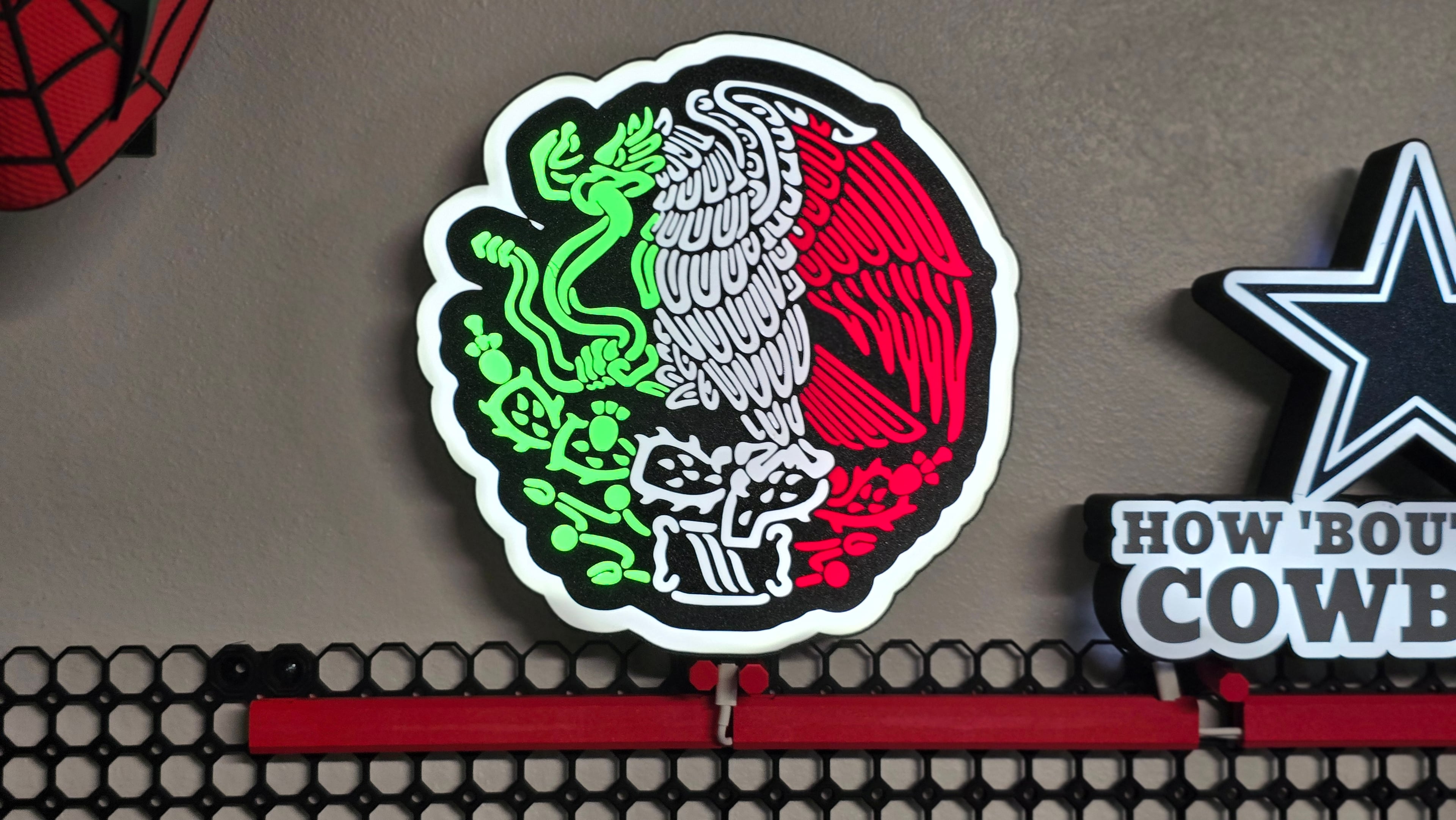

Honor your roots with this layered LED light box featuring the iconic Mexican eagle devouring the serpent — styled in bold red, white, and green. Designed for easy printing and clean wiring, this wall lamp brings a modern glow to traditional pride.

🪶 Includes snap-in USB-C port, LED slot routing, and wall-mount keyholes.

Perfect for your office, workshop, or as a meaningful gift for family and friends!

---

🖨️ Print Settings

• Front Panel: 0.20 mm layers (First layer 0.16 mm)
• Back Panel: 0.24 mm layers
• Scale: 92% for Bambu X1C / Neptune 3/4 / P1P-S

Setting Value Walls 2 × 0.4 mm (0.8 mm) Infill 10% Grid Supports None Seam Rear (Aligned) Adhesion Skirt or None

⚠️ Calibrate flow for each filament — especially white! The first layer is the face.

---

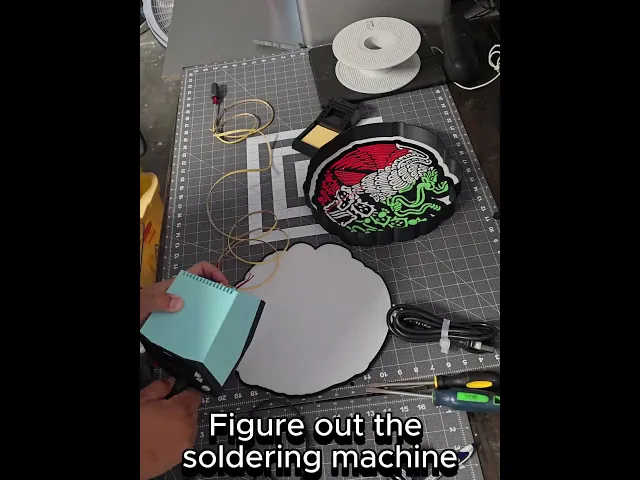

🛠️ Assembly Guide

1. Print both parts – the faceplate and the back panel.
2. Install USB-C port – snap-fit the USB-C female connector into the built-in orifice (14.6 mm x 5.4 mm).
3. Solder wiring – connect the USB-C to the 5V COB LED strip using the soldering kit.
4. Secure connections – protect solder joints with heat-shrink sleeves.
5. Mount LEDs – use foam tape to line the strip along the inner walls of the faceplate.
6. Snap it shut – press the back plate into place and hang using the rear keyholes.

---

🧰 Recommended Tools & Materials

These are affiliate links. If you purchase through them, I may earn a small commission at no extra cost to you. Thank you for your support!

• 🔋 5V COB LED Strip, Narrow 5mm
• 🔌 USB-C Female Chassis Connector (Waterproof)
• 🔧 Soldering Kit
• 🛠️ Helping Hand Soldering Vise
• 🔥 Heat Shrink Sleeves – Assorted Sizes
• 🧻 3M Double-Sided Foam Tape
• 🦾 Super Glue – Clear & Strong

🎨 Filaments I Use

• Polymaker PLA PRO
• Elegoo PLA
• ANYCUBIC PLA Plus

🛠️ Level Up Your 3D Printing Setup

Looking for more? Here's my personal list of tools, filaments, and must-haves:

👉 MS 3DPrints Essentials – Amazon Buying List
(Affiliate link – helps support my work at no extra cost to you)

---

💬 Feedback, remixes, and makes are always welcome — let’s build smarter, together!
