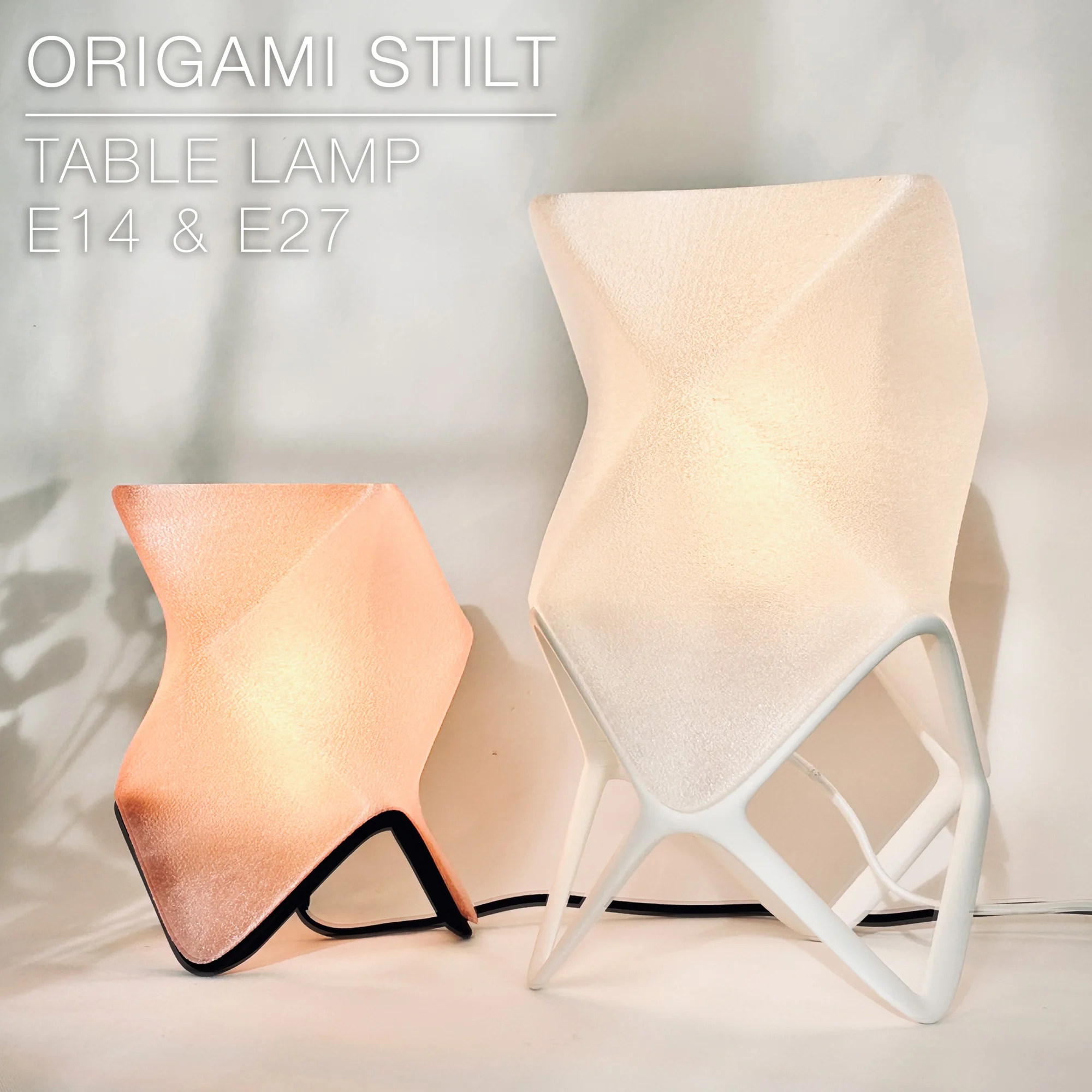

ORIGAMI STILT | Table Lamp E14, E26, E27 print-in-place

(NOTE: this version is available at no extra-cost to those who already purchased the original Origami lamp and the Origami PIP version.)

Here is a long-awaited update of the print-in-place ORIGAMI table lamp:

• First, I reworked the design so there wouldn't too sharp edges, which caused some print defects in the the previous versions.
• Then, I added 2 bases that can be be "fixed" on the shade (the shade would just rest on the base in previous versions).
• the bases have thicker legs than before, no sharp edges anymore, and print very nicely.
• These bases come in low and tall versions*.
• Also, the shade comes in 2 sizes, to fit on most printers out there.

You can use the shade with or without the base. If without without the base, just mount your E14 or E26 or E27 bulb sockets directly where the shade's inner shell narrows into a mounting neck in the middle. Or mount the shade on a base and, if you fancy, even mount it all on some table lamp stand or floor lamp stand from IKEA.

2 shade sizes available:

• Large version (height 250mm)
• Small version (height 209mm) to accomodate smaller printers.

Both sizes work with either E14, E26 or E27 sockets. The middle opening fits the E26 / E27. For E14, just print 2 adapter discs (STL provided) , and place them above and below the narrow neck inside the shade.

You can get the power cords from Amazon here:
 For Europe: E27 cord:  https://amzn.to/3OVrZjK
 E14 cord:  https://amzn.to/3TchBqs

For the US: E26/E27 cord:  https://amzn.to/3U0Xyvy

Happy printing!

DIMENSIONS (Large) | Ø200 mm x H 250 mm

DIMENSIONS (Small) | Ø168 mm x H 209 mm

3D PRINT SETTINGS The shade and the base print upside-down. (STL files already oriented properly).

SHADE: The shade prints in standard mode, not vase mode. No supports required. No infill required.

Wall line count: 2 top layers: 2 Bottom layers: 3 Resolution / Layer Height: 0.2mm/layer Infill: None (0%) Build adhesion type: Brim 4 to 6mm Supports: None

In Bambu Studio:

• make sure to untick "ensure vertical shell thickness" in Speed settings or you'll end up with extra thickness here and there.
• set "Wall Generator" to "Arachne" mode in Quality settings, or you'll end up doubling the print time.

The shade on the pictures was printed with some “fuzzy skin”.

• fuzzy skin thickness: 0.3mm
• fuzzy skin point distance: 0.8mm

BASE/STAND: The base must be printed upside-down, so with the round face for the E14 or E27 socket flat on the printing bed. No brim or supports needed. You can push the infill to 30% or 40% to get a super clean print.
