Gantry Support for Ender 3 v3 SE/KE

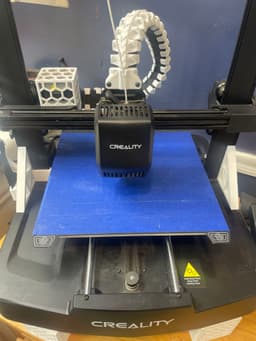

Gantry Support for Ender 3 v3 SE or KE, with a cable chain. I couldn't find any gantry supports, that didn't require drilling holes or extra disassembly and that would fit flush with a cable chain bracket, so I made this simple support structure, with a little notch to go over the cable chain clip at the base of the gantry.

If you don't have a cable chain, just print 2 of the right supports and they will fit flush on both sides.

When they load into the slicer they'll probably be facing straight up and down, but it's easier to print them on their sides.


Discussions
D
Deeznuts82278

Double sided tape works good too

T
tubaf

Thanks! How do they attach them to the printer?

R
rapior.clement

You should try hot glue, it holds great and you can still remove it after

Andrew V
v.andrew.scott

yeah sorry, I used hot glue
