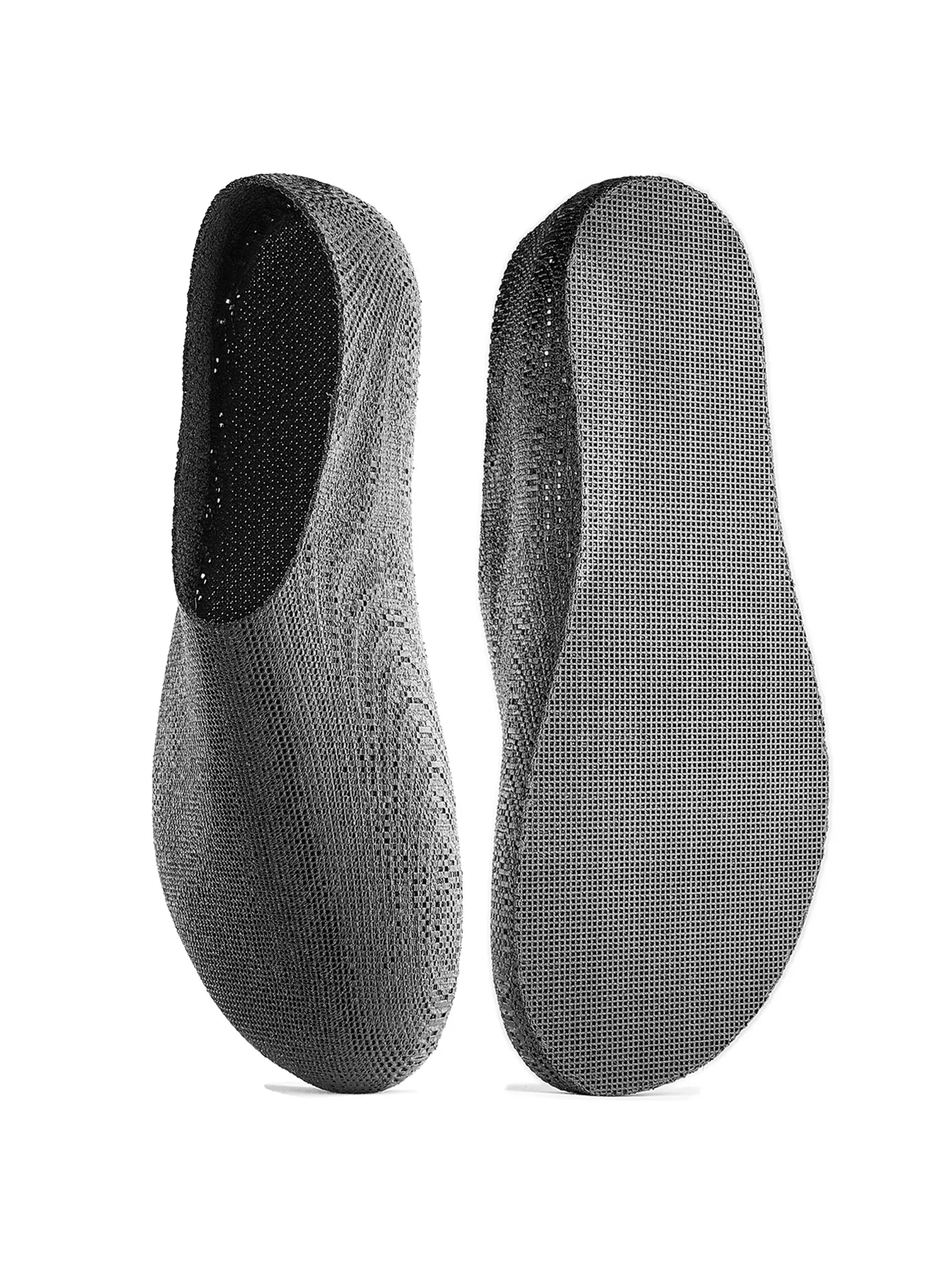

Tora barefoot shoes

Orca Slicer / Bambu Studio settings:

Global

  • layer height: 0.2mm
  • line width sparse infill: 0.6mm
  • wall loops: 0
  • top shell layers: 0
  • bottom shell layers: 0
  • sparse infill density: 62%
  • Infill pattern: Grid
  • Infill anchor: 1000 (unlimited)
  • Max infill anchor: 1000 (unlimited)
  • Infill direction: 45
  • Detect narrow internal solid infill: no
  • Speed sparse infill: 18 mm/s
  • Enable support: no
  • Reduce infill retraction: no

Cube modifier (256x256x0.9mm around height 1.5mm to make a 3 layers platform):

  • Infill density: 60%
  • Infill pattern: Rectilinear
  • Infill direction: 0

Filament:

  • Temperature: 215 C (95A), 220C (85A)
  • Retraction: 1.8mm
  • Wipe: no
  • Z hop: 1.2mm, Normal type
  • Max volumetric speed: 4.8 mm^3/s

Cura settings:

  • place the model diagonally (45)
  • layer height: 0.3mm
  • infill line width: 0.65 (or 0.4 with 162% infill flow)
  • wall line count: 0
  • top layers: 0
  • bottom layers: 0
  • initial bottom layers: 0
  • infill line distance: 2mm
  • infill pattern: grid
  • connect infill lines: yes
  • infill line direction: []
  • randomize infill start: yes
  • infill overlap: 0mm
  • infill speed: 18mm/s
  • combing mode: off
  • z hop: 1.2mm

settings modifier (300x300x1.1mm solid, placed around Z = 1.4mm, to make an internal flat top 3 layers platform to place the feet)

  • infill pattern: zigzag
  • infill line distance: 1mm
  • infill line direction: [0,90]

Prusa Slicer settings:

  • layer height: 0.2mm
  • perimeters: 0
  • solid layers top: 0
  • solid layers bottom: 0
  • ensure vertical
  • fill density: 62%
  • fill pattern: grid
  • length of the infill anchor: 1000 (unlimited)
  • maximum length of the infill anchor: 1000 (unlimited)
  • supports: no
  • speed: 18mm/s
  • infill extrusion width: 0.6mm

Website: riverfamily.art
