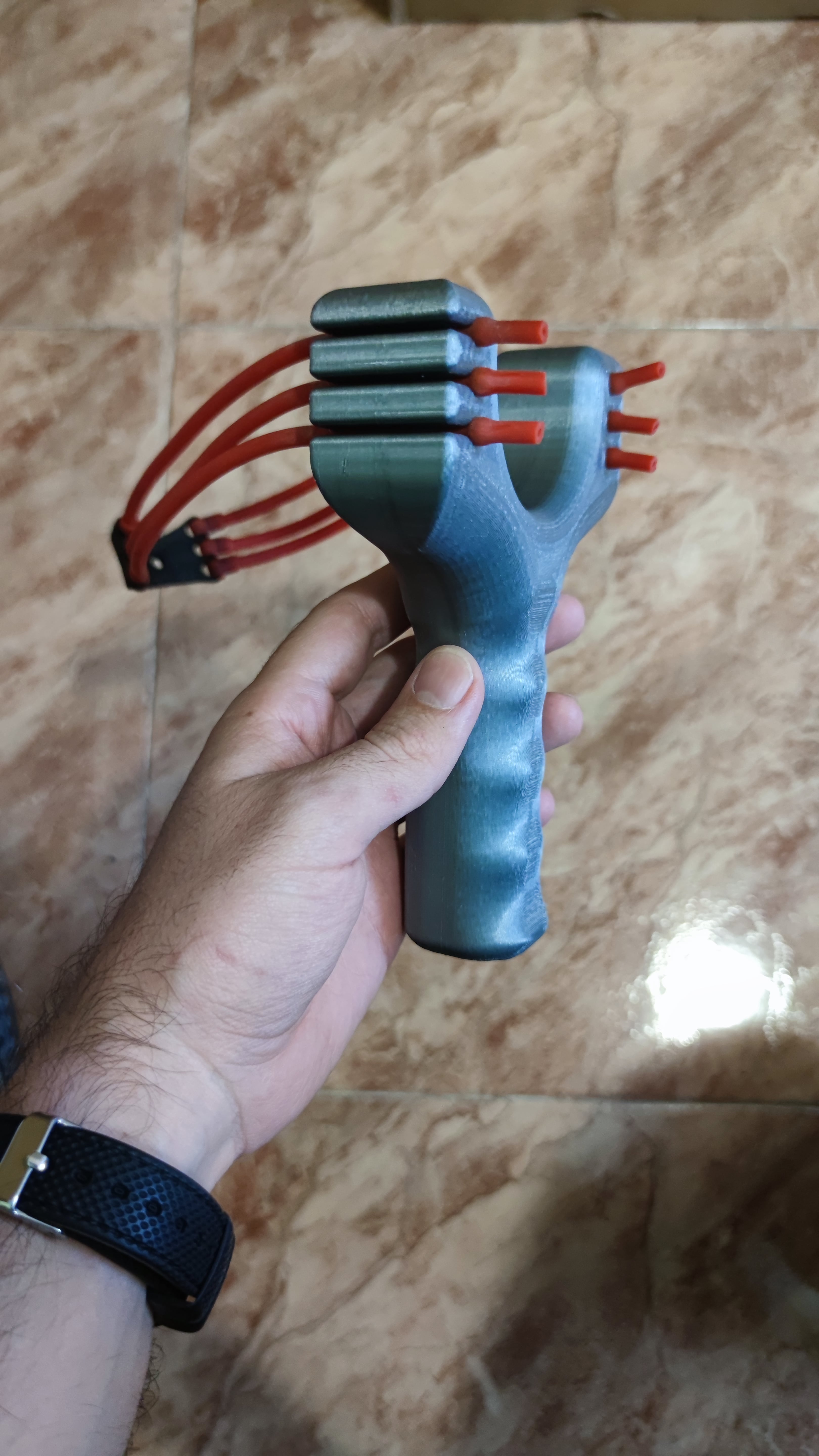

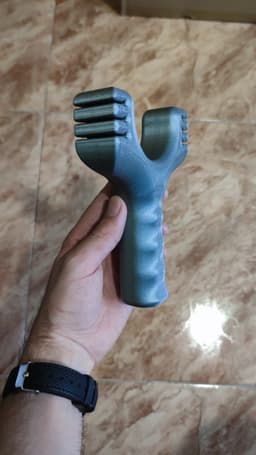

Strong Slingshot for 6 Rubbers

This model is restricted by licensing terms.ย

I've used these rubbers: https://amzn.to/4dnZbLg

But these should also work: https://amzn.to/4ba8gFW

You can also use the ones with 4 rubbers and just leave one empty hole in each side (I suggest the middle one).

I printed it with PETG, but after printing and testing, most probably PLA would also work. Let me know in the comments/makes.

Print HORIZONTALLY to increase strength/resistance.

  • Layer height: 0.15
  • Line width:
    • Default: 150%
    • First layer: 100%
    • Outer wall: 100%
    • Inner wall: 0
    • Top surface: 100%
    • Support: 100%
  • Wall loops: 5
  • Alternate extra wall: Yes
  • Top shell layers: 5
  • Top shell thickness: 1
  • Bottom shell layers: 5
  • Bottom shell thickness: 1
  • Infill density: 50%
  • Infill pattern: Cubic
  • Support: Yes
  • Support type: Tree
  • Support angle 30
