Braille Training Cell - 4.5MM

51 downloads · 2 years ago · Teaching aid for learning to read and write braille with large 4.5mm diameter dots. [https://youtu.

This model is restricted by licensing terms.

View license.

Description

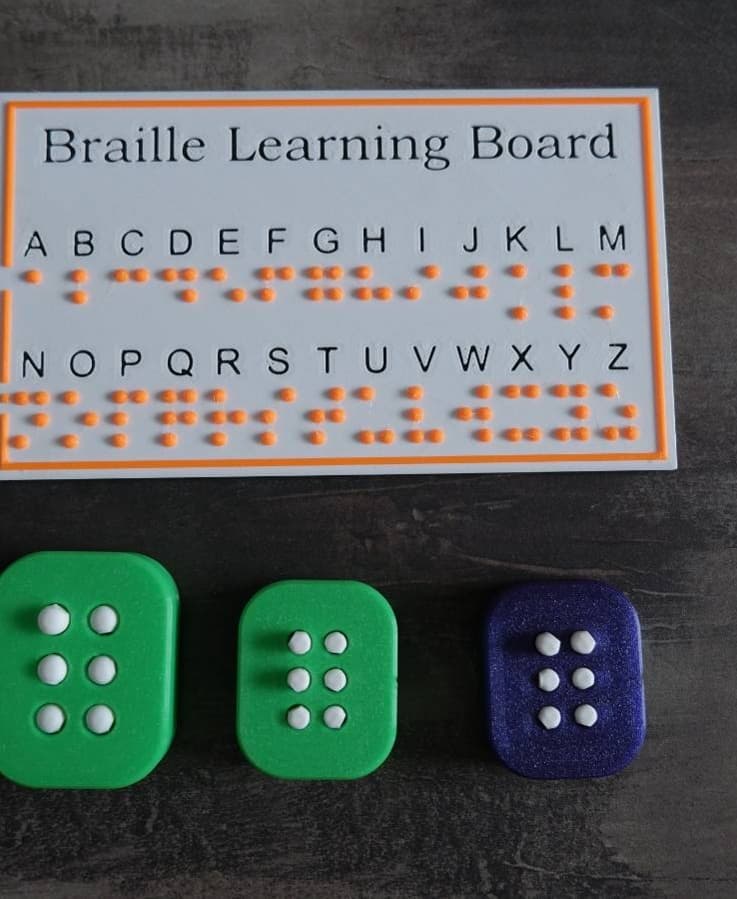

Teaching aid for learning to read and write braille with large 4.5mm diameter dots.

https://youtu.be/Z9aghYXRcNk

Customization

Case Size

Single cell
8-cell

Case Style

Hard Case with embedded TPU inserts
Fully TPU Case

Button Options

Flat
Round

Printing

All parts can be printed without supports
Cases are printed upside down (walls facing up) so there is no bridging
92A durometer or softer TPU is recommended for all flexible parts
Print buttons in PLA or other rigid material
If printing the hard case on a multi-material printer, turn on “Interface Shells” so the - TPU gasket has a solid base to print on

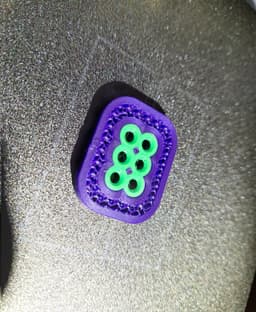

If printing the hard case on a single-material printer, pause the print just before the layer where the case begins to bridge. Insert the TPU gasket so that the top is entirely flush
2 perimeter walls is sufficient for all flexible parts, but additional perimeters may provide better results if the buttons feel too loose

Assembly

Press fit buttons into the case.
That's it!

Filament

You can get drastically different results depending on what filaments you use for the flexible parts of this design. This video by Filament Stories includes some recommended options.

Can I sell copies of this?

Yes! This project was shared under the Creative Commons - Public Domain license.

This license grants you permission to download, distribute, alter, print, and sell copies of this design.

This license applies only to the model files (STL, 3MF, STEP, F3D) included in this project. It does not apply to photos, videos, my logo, or other supplemental graphics attached to or displayed with this project.
