Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:5424499.

Highly customizable box with optional top lid or front lid.

This is an OpenSCAD project and is easy to configure with the OpenSCAD customizer.

Maximum box size is the size of the build plate.

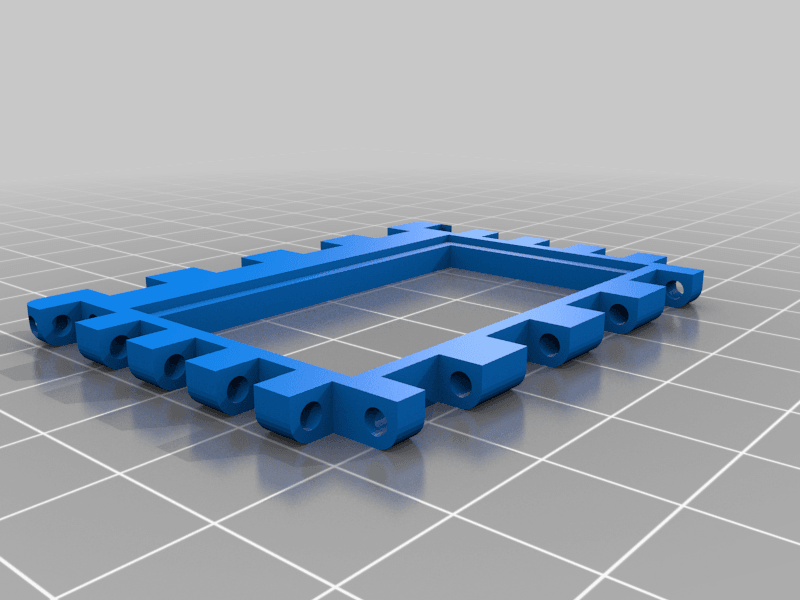

Box sides may contain inset windows so that materials other than extruded plastic can be used to fill the sides.

Cut pre-made material to the size of the window inset and glue in place.

Print each side separately and glue together.

Edges may be square or rounded, And may be woven together with wire.

Suggestions for side material - wood, aluminum, Saved print rafts.
