A push fit clip designed to hold a small case. Fully parameterized Fusion360 file allowing the height and depth of the case to be defined, along with the radius of the corners (and more).

Does not use the standard pushfit connector STEP file, but I may update with that now that they're available. Because of that it's likely not as snug a fit, but it's worked well for me so far.

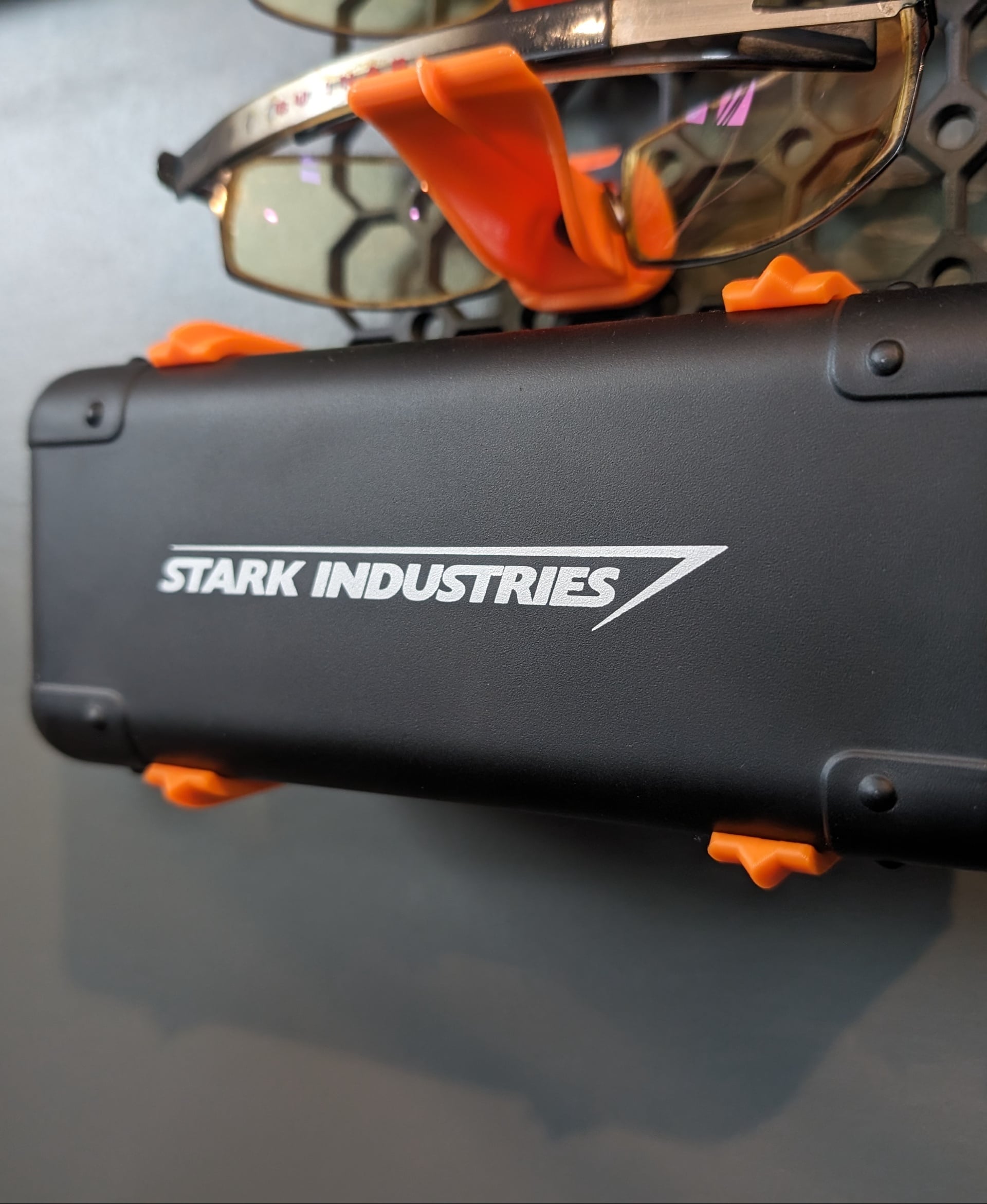

Included 3mf file fits my eyeglass case.
