Multiboard Deburring Tool Holder

This model is restricted by licensing terms.

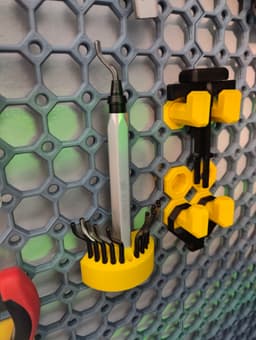

This model is a simple multiboard push-fit organizer/storage for my deburring tool and a handful of spare blades. To attach it to a multiboard tile you will also need a snap, or some other method of creating a push-fit slot.

The deburring tool I'm using is from AFA Tooling on Amazon, and according to my calipers is about 11.85mm or 0.465in from face-to-face on the handle.

The model was created in OnShape, using the Multiboard Remixing Files and is available here for anyone who wants to make changes or export in a different format.
