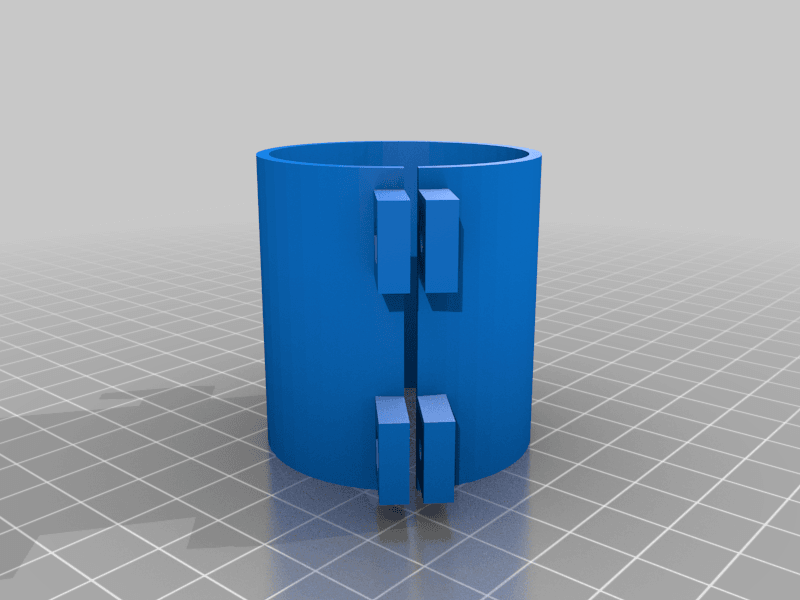

1-1/4" PVC pipe sleeve w/ hook 3d model
tim.m.hoefer
tim.m.hoefer
|
Image 1 of 10
1-1/4" PVC pipe sleeve w/ hook 3d model
2D
3D
Makes
1-1/4" PVC pipe sleeve w/ hook 3d model
1-1/4" PVC pipe sleeve w/ hook 3d model
1-1/4" PVC pipe sleeve w/ hook 3d model
1-1/4" PVC pipe sleeve w/ hook 3d model
1-1/4" PVC pipe sleeve w/ hook 3d model
1-1/4" PVC pipe sleeve w/ hook 3d model
1-1/4" PVC pipe sleeve w/ hook 3d model
1-1/4" PVC pipe sleeve w/ hook 3d model
1-1/4" PVC pipe sleeve w/ hook 3d model
1-1/4" PVC pipe sleeve w/ hook 3d model
This model is restricted by licensing terms.

Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:4891346.

####1-14" PVC SLEEVE W/ HOOK Problem Statement: I've created a chicken wire+PVC gate for our garden area and need a way for everyone in the family to be able to "lock"/"unlock" it that is easy and relatively effective in holding back the wind.

Printed PLA (200C/60C) @ 2mm layer height.

####Printing Used supports for the hook and both pairs of tabs (for top supports you may want to make sure they don't pass directly through the lower tab holes)

####Hardware needed

  • 2 x M3 screws
  • 2 x M3 bolts

NOTE: PLA on this model didn't feel quite pliable enough to enable the model to open up to attach it to the 1-1/4" PVC pipe so sliding it on from the end feels like the only option. Something to keep in mind with regards to already-assembled PVC. Your mileage may very but the resistance I was feeling made me not even want to try.
