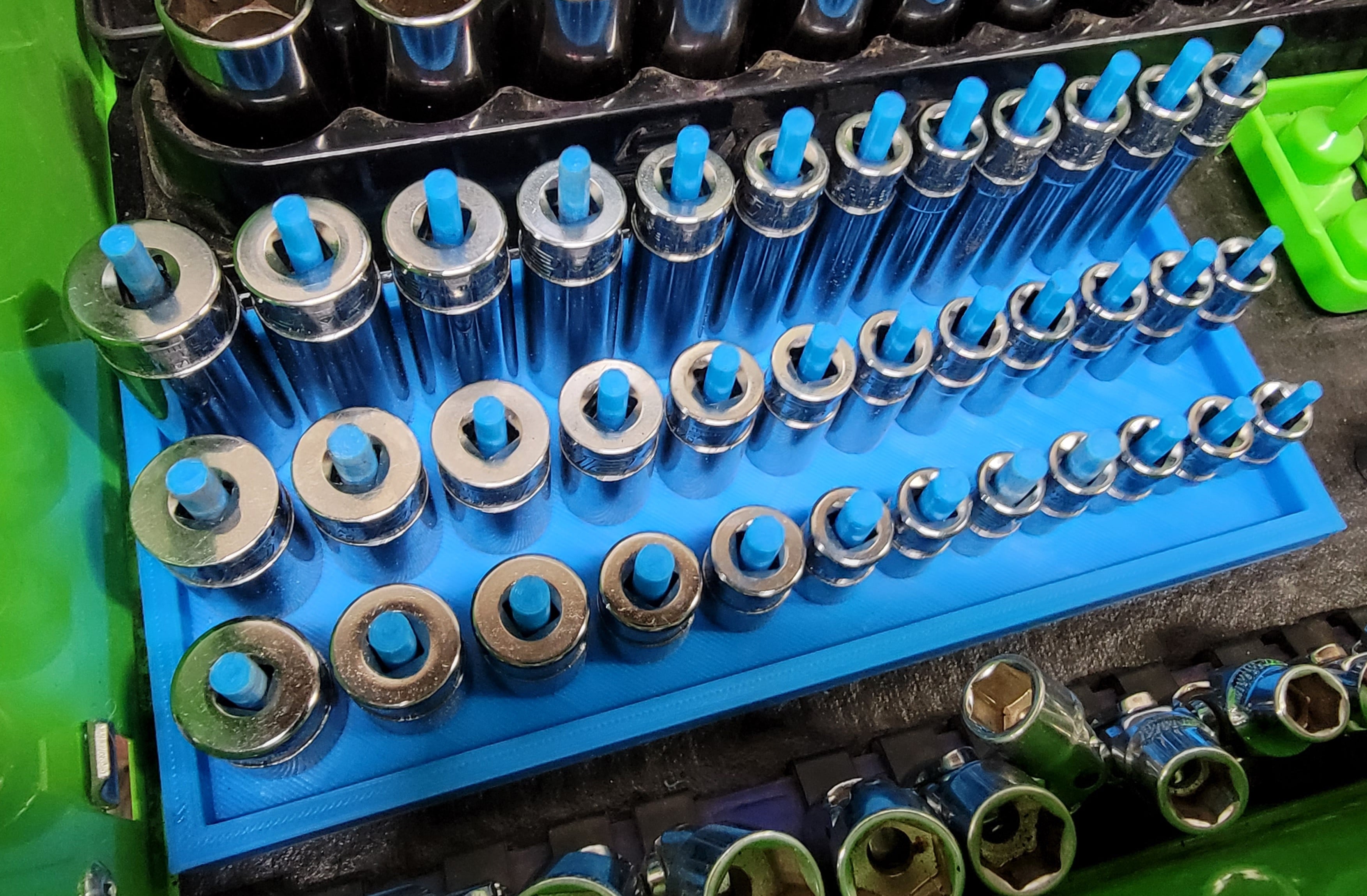

Socket holder for 1/4 inch drive sockets. I designed this for my snap-on FDX sockets. I made it to fit the 5-15mm sockets in shallow, mid-length and deep sockets. I'm sure it would work with most sockets but found my snap-on brands required a specific internal diameter for the peg parts to fit and decided to make my own instead of buying them. Any reviews would be greatly appreciated. This is my first time designing and hopefully it helps.

I printed it with 100% infill and .2 resolution. no support or build adhesion aid. I did have to lightly sand 4 of the socket pegs for a more smooth action of removing and replacing those sockets. I count that as to my inexperience in trying to hide the seams
