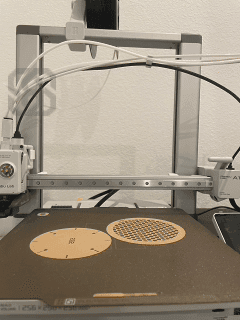

MagneticCoasterV2.3mf 3d model
skybuildstudio
skybuildstudio
|
Image 1 of 5
MagneticCoasterV2.3mf 3d model
MagneticCoasterV2.3mf 3d model
MagneticCoasterV2.3mf 3d model
MagneticCoasterV2.3mf 3d model
MagneticCoasterV2.3mf 3d model
MagneticCoasterV2.3mf 3d model

MagneticCoasterV2.3mf

This model is restricted by licensing terms.

🌟 Feature List

Auto-Aligning Magnetic Stacking: Uses four neodymium magnets (D4xH2) in a rotated-square layout with alternating N-S-N-S polarity to automatically snap coasters into perfect alignment.

Advanced Condensation Management: Features an outer retention lip and an inner reservoir groove to catch runoff and prevent table rings.

Anti-Suction Technology: Recessed radial air channels on the underside break the vacuum seal, preventing the coaster from sticking to the bottom of wet glasses.

Glass Centering Ring: A slightly raised inner ring naturally guides glasses to the center of the coaster.

Ergonomic Fluted Holder: A parametric, symmetrically fluted holder featuring an extended thumb-notch designed for easy stack removal by both children and adults.

Anti-Tip Ventilated Base: The holder incorporates a weighted base ring for stability and a hexagonal honeycomb cut-out for airflow and moisture evaporation. 100% Support-Free Printing: Designed to print completely flat on the build plate with zero overhangs or supports required (recessed bottom text and channels).

If you like this model, feel free to check out my other designs on my profile or visit the links below:

https://skybuildstudio.com/

https://linktr.ee/skybuildstudio

I uploaded a customizer in makerworld, you can access for any customization using the links above.
