Gutter Node.stl

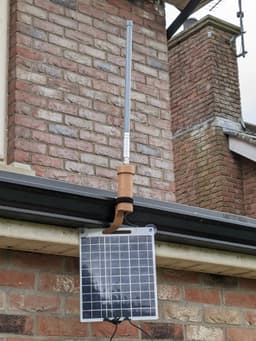

Gutter mount case for RAK 19007 meshtastic device.

The curled bracket clips in under the gutter rim and the opposite end can be press fitted between the wall and the guttering for a solid fit.

Screw top with overhang for improved water resistance Inclined ventilation holes Room for a RAK 19007 and a 18650 battery holder

0.15mm tolerance on the screw thread Example in photos printed in PETG on a P1P in silent mode I had to apply a small amount of silicon lubricant to the threads


2 Likes4 DownloadsMay 23, 2024
