Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:4923778.

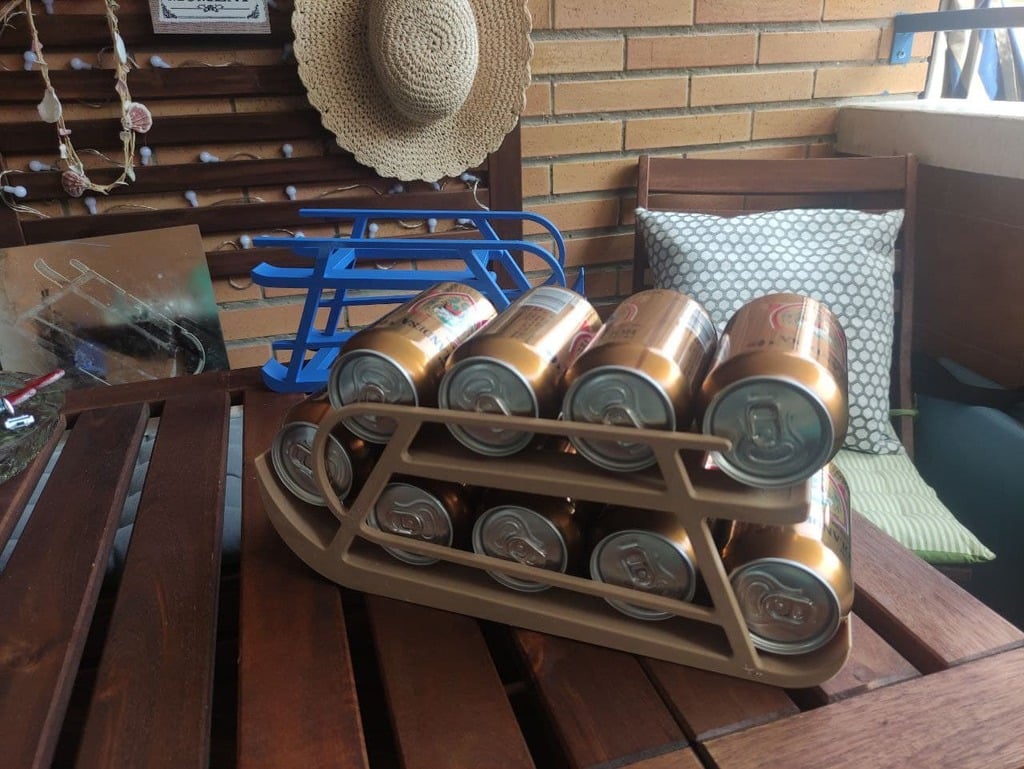

Drink organizer. New update Drink dispenser 2022 _ 10 units. (only for bed 300x300 _rotate model 45º)
Have always cold drinks, thanks to this dispenser, fill the dispenser up to 9 units.(33 cl Diam 66 x 115 lenght) The bottom drink is always the coldest. only 130 wide x 170 high x 330 deep, designed for fridge.
Full print with 3x4x4 walls/top/bottom and aprox 20% infil came to about 140g+140g in weight.
Model 2 pieces for bed 300 x 300 mm rotation 45 degrees. (2 models full) Model 2 + 2 pieces for 220x200 beds (4 models little) (added photo disposition of pieces)
Added slim model, smaller dimensions and only 75 grams (always bed 300x300) I have also added the CAD files
You do not need extra parts, only fit tightly, in case of loose parts you can put a little glue on the lace
- Add design for 11 unit 66x115 in 4 piezes (bed 220x220)
- Add design for 10 unit 66x115 in 2 piezes (bed 300x300)
- Add design only 6 unit 66 x 115 in 2 piezes (bed minimum 220x220)
For other dimensions: The design is prepared for a can of Diameter 66 x 115 in height. If you have other dimensions it is very easy to adapt it by scale. For example, a can with a diameter of 55/66 = 0.878 of scale in X and Y axis, if it has a length of 146/115 = 1.27 of scale in Z. So you can make the design for any can, I have added a photo to understand.
