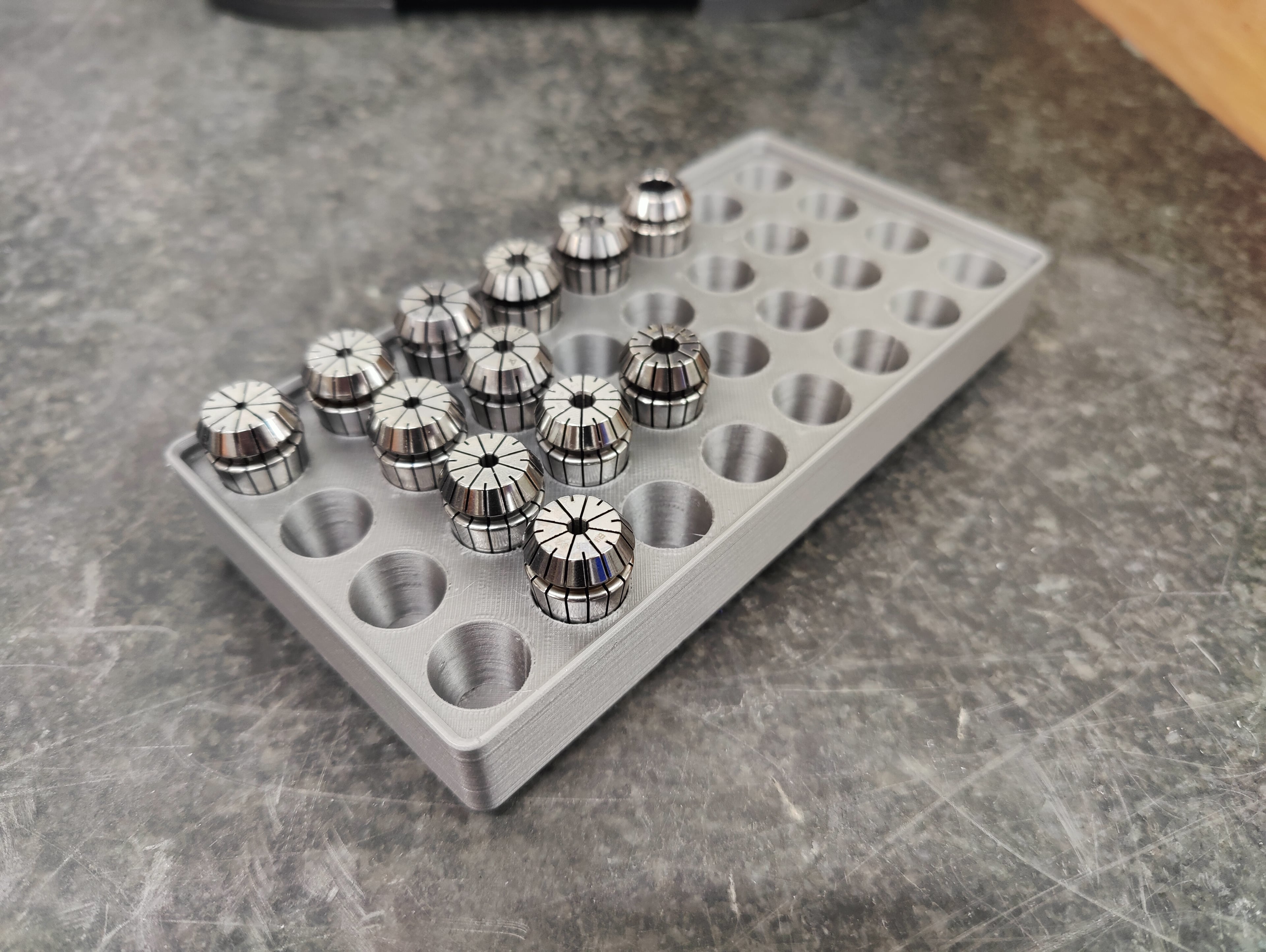

Gridfinity ER16 collet holder 3d model
ewildgoose
ewildgoose
|
Image 2 of 3
Gridfinity ER16 collet holder 3d model
2D
3D
Makes
Gridfinity ER16 collet holder 3d model
Gridfinity ER16 collet holder 3d model
Gridfinity ER16 collet holder 3d model

My collet collection was getting out of hand and I couldn't find a suitable (Gridfinity) based organiser that suited my needs.

Features of this are:

  • Gridfinity based (2x4)
  • It's not stackable... I wish it were, but I played with various ideas and it was just too difficult to get the things out with tall outer walls
  • ER16
  • tapered walls (so collet fits snugly)
  • straight rows to allow organisation by size (row of 3mm, row of 4mm, etc)
  • half "gridfinity height".

I printed mine using PETG as it seems coolant proof (although I would in general carefully clean collets before stacking). Fit is decently tight on a range of collets (amazingly not all collets are the same size...)
