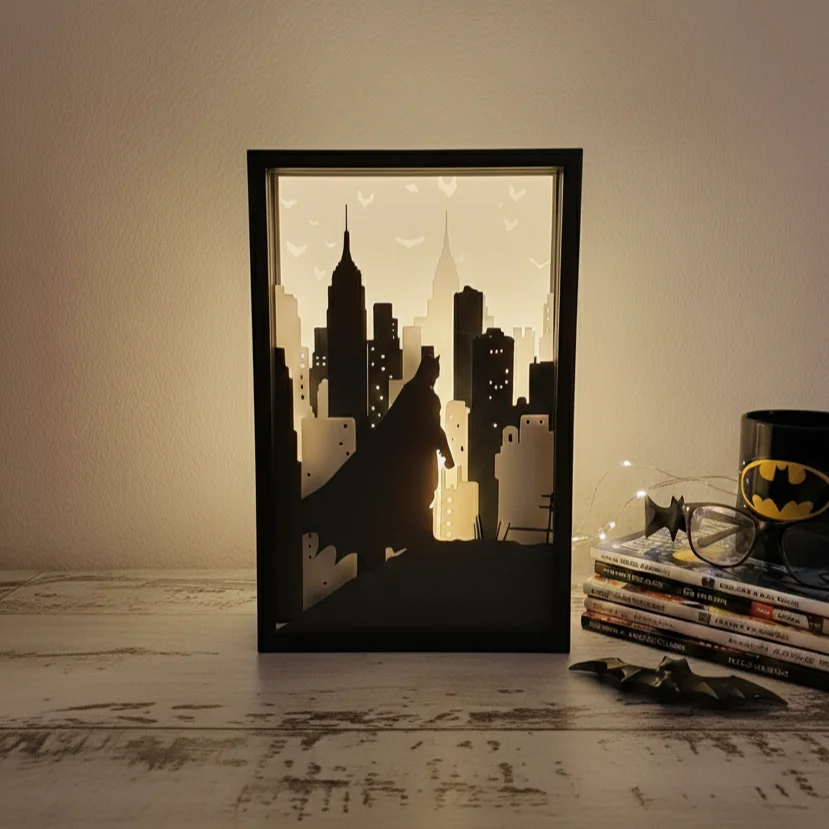

Multi-layer shadow box lamp designed for LED backlighting. Layered construction creates depth and clear silhouette separation when illuminated.

Print & Build Notes: 🔧 Recommended nozzle: 0.4 mm 🔧 Layer height: 0.2 mm 🔧 Outer frame: 100% infill for structural rigidity and clean edges

🔧 Filament: PLA  • Black PLA – OPTIONAL for outer box and layers (1, 3 and 5)  • White PLA with good transparency – light-diffusing layers

🔧 Print orientation:  • Plates are uploaded upside down  • Printing on a Textured PEI Plate in this orientation improves visible surface quality

Lighting: 🔧 Warm white LED strip recommended 🔧 Attach the LED strip horizontally to the lower half of the inner box back wall 🔧 Ensure even alignment for uniform light diffusion

Assembly: 🔧 Insert the layers (Layer 1, Layer 2, Layer 3, etc.) into the inner box in the correct order 🔧 Place the top holder onto the inner box from above 🔧 Slide the outer box onto the assembly from the front
