Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:6006370.
-
Description: a) Scout Patrol game - play against the Arduino MEGA. b) Small scout ships typically patrol in pairs to provide fire c) support for each other. Primary weapon is a Boson Torpedo which travels in an arc similar to an artillery shell, The Torpedo is like a pulsed green laser firing Higgs Boson particles on a curved flight path. d) Like a tiny Battleships game. e) No two player version yet (RF24 between two devices in the works now).
-

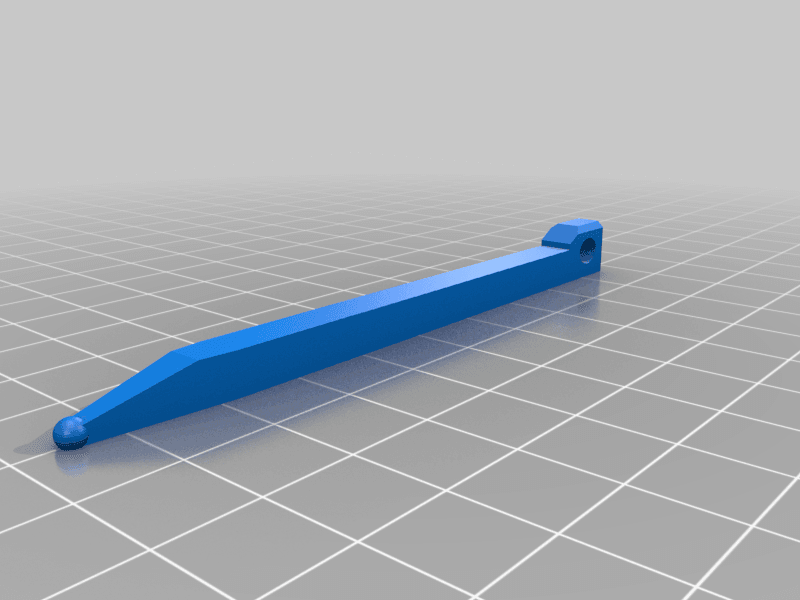

Other Files: a) <MegaGameBase.stl> - game mount 3d print file for an Arduino MEGA. b) <ScoutPatrolWiring.jpg> - Fritzing wiring diagram. c) <TouchTest_01> - touchscreen coordinates mapping assist d) <TochScreenPen> - to replace the (lost?) white one that comes with the tft/lcd
-
Hardware: a) 2.8" TFT LCD Touchscreen (I used one by ELEGOO) sitting on an Arduino MEGA with an on-off switched 9V battery box all held on 3D printed printed mounting frame. b) Used passive buzzers to generate sound effects (stereo?) and an RGB LED module for lighting effects.
-
General Notes: a) Comments with "??" are areas that I (being a programming novice) had questions on need or usage. b) Also several comments and code snippets are from 'bp.ino' by BobP dated 14March2022 and ELEGOO's TFT LCD sample sketches. c) Used >Serial.println< to aid in finding and correcting bugs. d) Probably many places where the code could be more efficient and use improvement.
