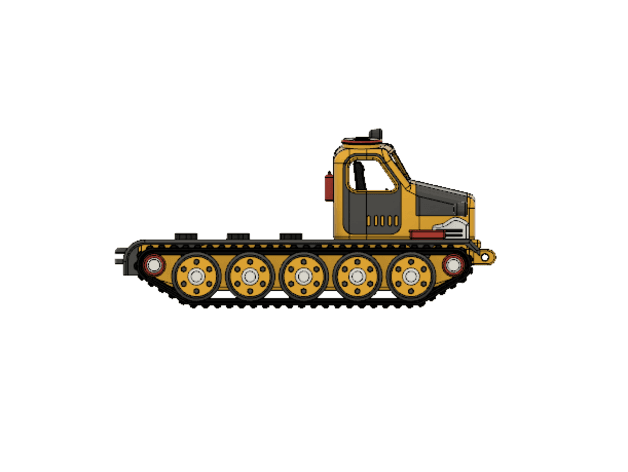

Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:6300741.

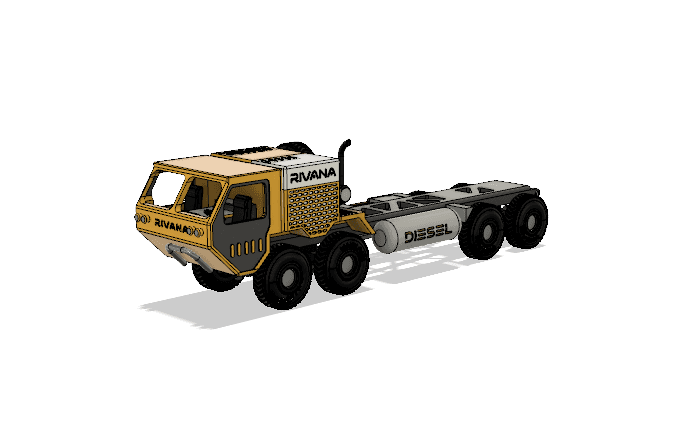

An artillery tractor is a specialized heavy-duty form of tractor unit which has its orgin in th armed forces to tow artillery pieces of varying weights and calibres. In the present day this has become a highly versatile automobile platform in which we can add various payloads for different civil and military roles. This is my second such an universal platform and the first with wheels. You can find rest of my such platform models here - Yellow Zil Truck Chassis
##There are three ways to print this.
-
As single piece:- Please download STL file but there wont be any movements.
-
Multiple Pieces :- Download 3mf file with Full_dismantled.3mf.** BEST QUALITY OUTPUT**. Please use the 3mf file for assembly also.
-
Combined:- You may use any 3D viewer software like 3D builder in windows to merge components according to your printer and filaments. The sky is the limit for this. You may find a sample file ending with combined.3mf.
<ins> If you want to try TPU for tracks, you can download the "TPU_Track_Artillery_Tractor.3mf" but please note that I haven't tested them.
#<ins>ASSEMBLY OF CHASSIS
#<ins>Movements Included
- Engine Bay Cover Swing Open
NOTE <ins>The tolerances to some elements are zero which has been intensionally provided to friction lock the elements while not in movements. You may have to fine tune the tolerance from your end using scaling funtion in slicer to ensure good fit without compromising movements.This also applies for the pins that make rotation possible between elements. Please proceed with printing all the pins after testing printing a pin and testing the fit of a joint. You should be able to find the adequate scaling factor with this.</ins>
Supports should be provided as required.
Appreciate the makes uploads.Open for suggestions.
