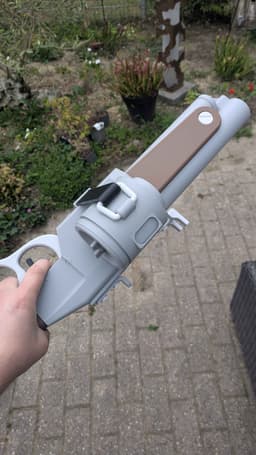

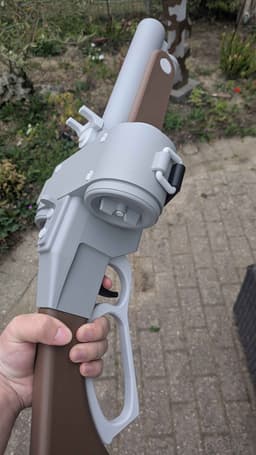

Back at again with another Team Fortress 2 prop! This time its the bawdy shaped Backscatter. The Backscatter is around ~60cm long, it features a trigger with printed spring and a lever action.

(Sorry A1-Mini users, i couldnt make it fit without ruining the overal quality, feel free to make it fit though!)

The model is fully printed and requires (almost) no glue! All the parts are attatched with either a peg or a screw, other parts are tight fits. If it sits too loose, then you might have to use glue on these other parts. Watchout! Some screws have reversed threads! So dont force a screw in too hard or it will break. (print them in PLA, preferably with 3-4 walls or more for added strength)

Assembly should be fairly easy, just make sure you use the right screws in each spot.

The test model is printed with 8% gyroid infill and 2 walls, this is to conserve on material and to keep it light. I suggest you use the same settings or the default. Supports are required sadly, the screw thread holes do not need support! Same for the peg holes. Auto generated supports worked fine in my case.

Any issues or questions can be asked in the comments. Do not be afraid to ask!
